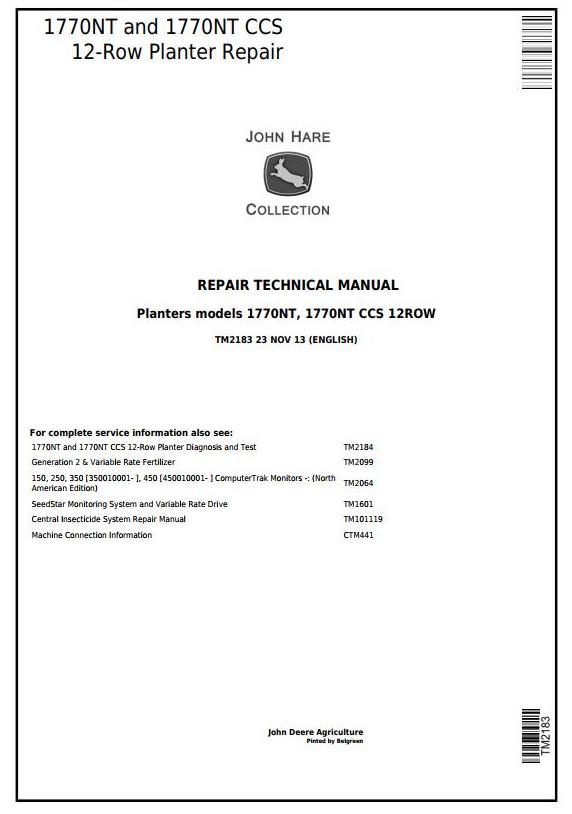

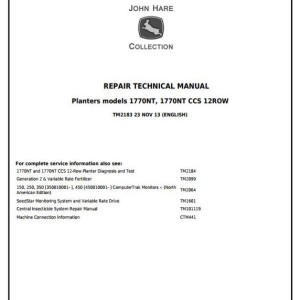

John Deere 1770NT 1770NT CCS 12-Row Planter Repair Technical Manual TM2183

John Deere 1770NT 1770NT CCS 12-Row Planter Repair Technical Manual TM2183
Language: English
Format: PDF
Document: Repair Technical Manual
Machine: Planter
Machine Model: 1770NT 12ROW, 1770NT CCS 12ROW (SN.–740100)
Pages: 637 Pages
Part Number: TM2183

Contents:
  Foreword

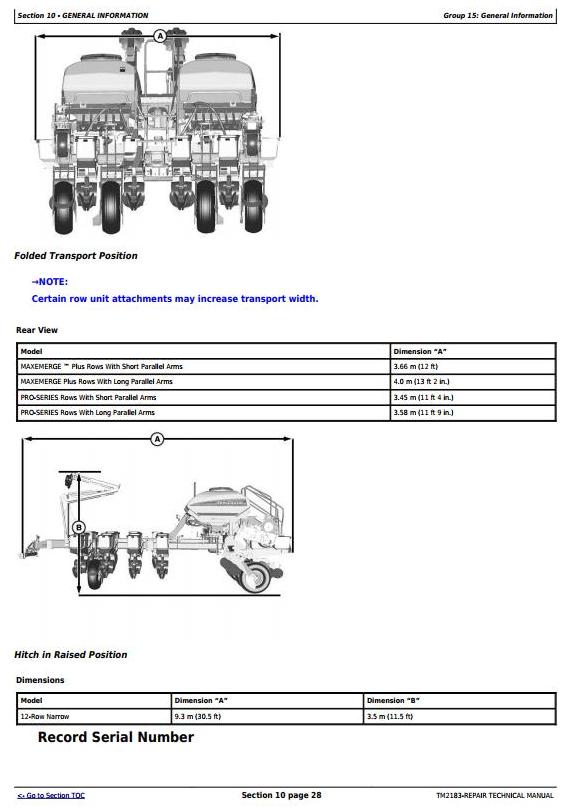

  General Information
     Safety
     Lubricants
     General Information
  Vacuum System
     Vacuum System
  Central Commodity System

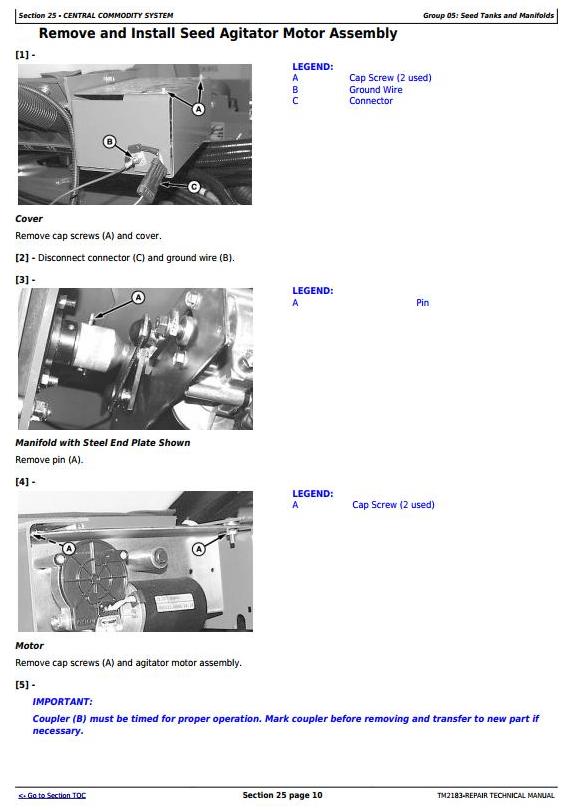

     Seed Tanks and Manifolds
     Seed Delivery Hose
     Central Commodity System Fan
  Planting Units
     MaxEmerge Plus™ / MaxEmerge XP™ Vacuum Seed Meters
     MaxEmerge Plus™ / MaxEmerge XP™ Plateless Seed Meters
     PRO-SERIES™ / Pro-Series XP™ Vacuum Seed Meters
     PRO-SERIES™ / Pro-Series XP™ Plateless Seed Meters
     Seed Openers
     Closing Wheels
     Row Tillage
     Insecticide/Herbicide Meter
     Mechanical Row Unit Down Force
     Pneumatic Row Unit Down Force
  Hitch and Frame
     Repair and Welding
     Hitch Pads
     Wheel Module Repair
     Row Marker
     Loading Platform
  Electrical
     Connector Repair
     Frame Control Box
     Relays, Sensors, and Switches
     Lighting Repair
  Drives
     Specifications
     Drive Wheels
     Seed Drive Transmission
     Half-Width Disconnect
     Drillshaft
     Variable Rate Drive
  Fertilizer and Pesticide Systems

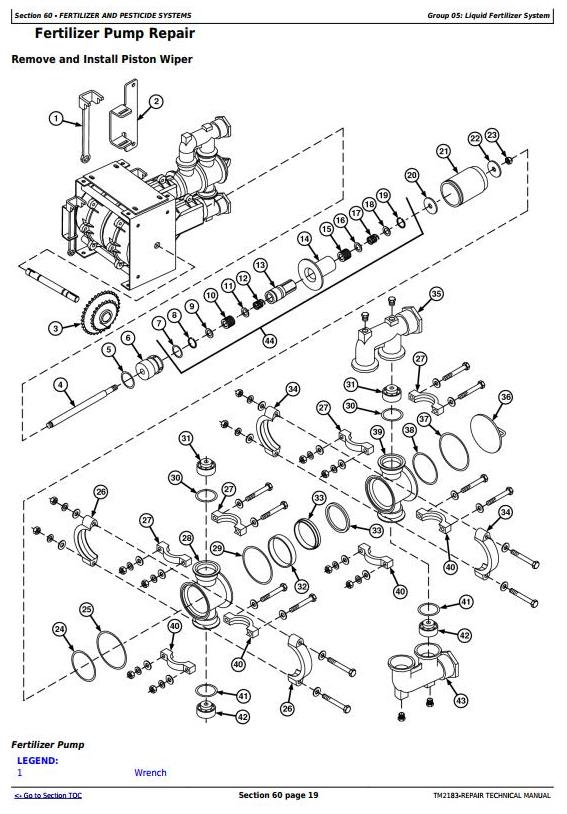

     Liquid Fertilizer System
     Variable Rate Fertilizer
     Pesticide System
  Hydraulics
     General Information
     Motors
     Cylinders
     Valve Block
     Valves
     Miscellaneous
  Miscellaneous
     Polyethylene Tank Repair
  Dealer Fabricated Tools
     Dealer Fabricated Tools
