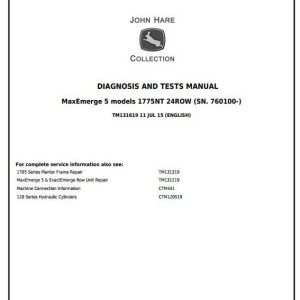

John Deere 1775NT 24-Row Planter Diagnostic Test Manual TM131619

John Deere 1775NT 24-Row Planter Diagnostic Test Manual TM131619
Language: English
Format: PDF
Document: Diagnostic Test Manual
Machine: Planter
Machine Model: 1775NT 24ROW (SN. from 760100) w.MaxEmerge 5 Row Units
Pages: 1143 Pages
Part Number: TM131619

Contents:
  Foreword
  General Information
     Acronym Table
     Safety
     Lubricants
     Recommended Tools for Diagnostics
     Basic Diagnostics
     Diagnostic Information for Electrical Components
     Diagnostic Information for Hydraulic Components
     Maintaining Hydraulic Systems and Components
     Standard Torque Chart Procedures
  Diagnostic Trouble Codes
     Accessing Diagnostic Trouble Codes
     Planter Main 1 (PM1)
     Planter Main 2 (PM2)

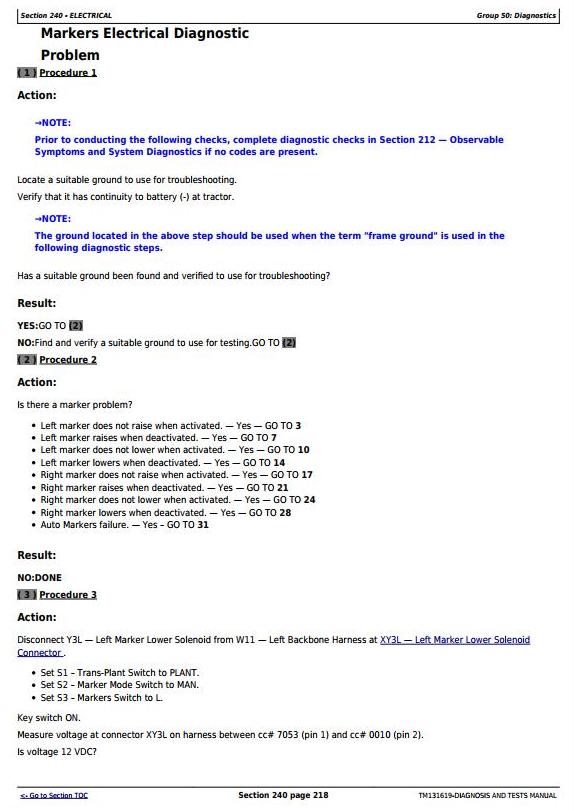

  Observable Symptoms and System Diagnostics
     Observable Symptoms
  Electrical
     General Information
     Theory of Operation
     Schematics
     Diagnostics
  Electronic Control Units
     Accessing Diagnostic Addresses
     Diagnostic Addresses by Control Unit
     Diagnostics

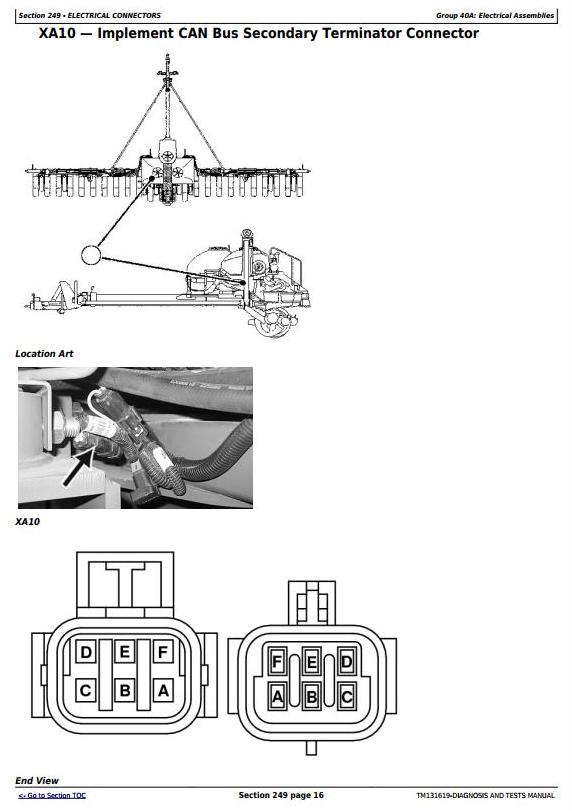

  Electrical Connectors
     Electrical Assemblies
     Sensors
     Lights
     Fuses
     Charging
     Relays
     Motors
     Switches
     Diodes
     Interconnects
     Electronically Actuated Mechanical Devices

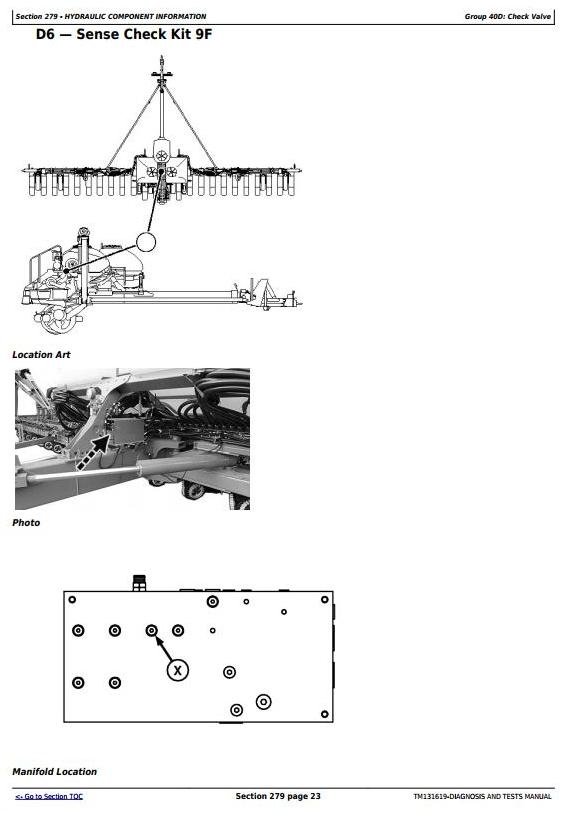

  Hydraulics
     Theory of Operation
     Schematics
     Diagnostics
  Hydraulic Component Information
     Accumulator
     Sensor or Gauge
     Cylinder, Actuator, or Piston
     Check Valve
     Filter
     Valve Block, Assembly, or Gearcase
     Cooler
     Motor
     Orifice
     Reservoir Tank
     Valve
     Diagnostic Receptacle or Coupler
     Solenoid Valve
  Pneumatics
     Theory of Operation
     Schematics
     Diagnostics
  Pneumatic Components
     Accumulators
     Sensors
     Check Valves
     Filters
     Assembly Groups
     Pumps
     Reservoirs
     Switches
     Valves
     Couplers or Diagnostic Receptacles
     Solenoid Valves
