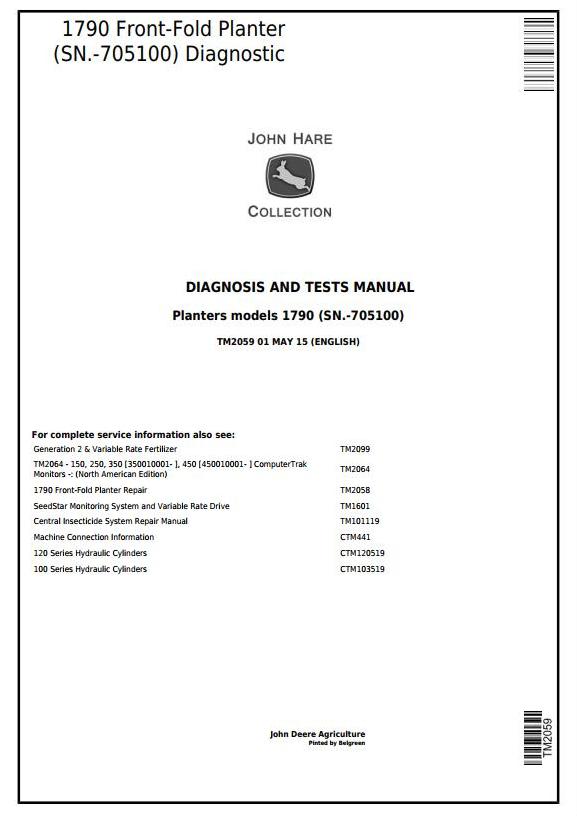

John Deere 1790 Front-Fold Planter Diagnosis Test Manual TM2059

John Deere 1790 Front-Fold Planter Diagnosis Test Manual TM2059
Language: English
Format: PDF
Document: Diagnosis Test Manual
Machine: Front-Fold Planter
Machine Model: 1790 (SN.-705100)
Pages: 432 Pages
Part Number: TM2059

Contents:
  Foreword
  General Information
     Safety
     Lubricants

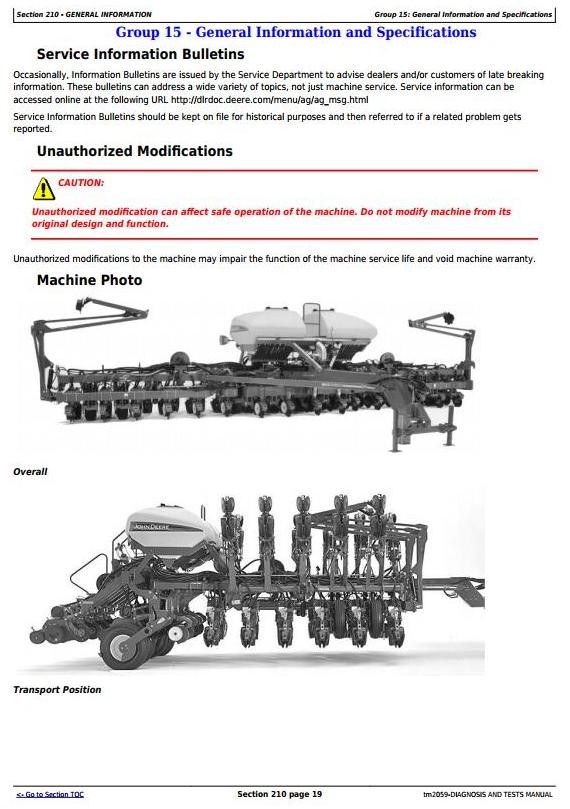

     General Information and Specifications
  Observable Symptoms
     Electrical
     Hydraulics
  Electrical System Diagnostics
     How To Use This Diagnostic Information

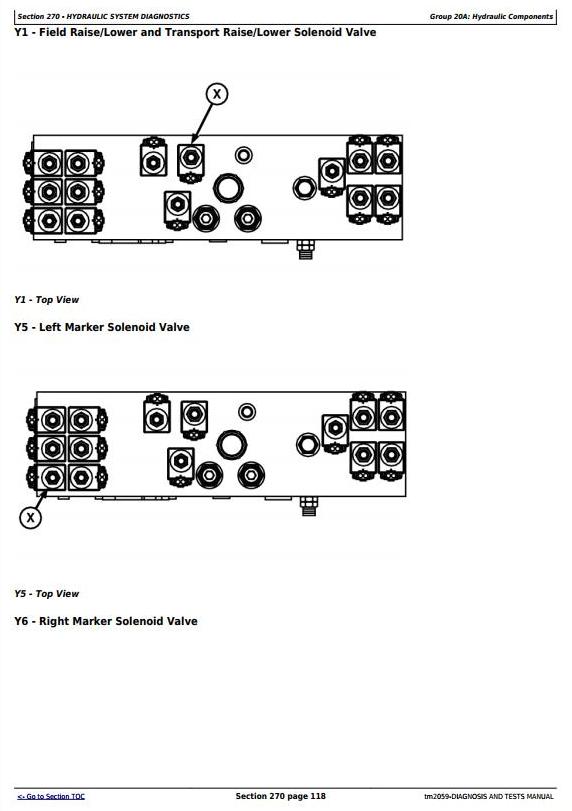

     Solenoid Sequence Table
     CCS Auxiliary Hydraulics Coupler Seed Delivery Fan Switch Diagnostics
     CCS Auxiliary Power Diagnostics
     CCS Low Tank Warning Diagnostics
     CCS Seed Delivery Agitator Diagnostics
     CCS Seed Delivery Fan Diagnostics
     CCS Tank Fill Lights Diagnostics
     Convenience Outlet Power Extension Diagnostics
     Field Raise/Lower Diagnostics
     Half Width Disconnect - Left Clutch Engage/Disengage Diagnostics
     Half Width Disconnect - Right Clutch Engage/Disengage Diagnostics
     Lighting Overall Diagnostics
     Machine Fold/Unfold Diagnostics
     Marker Raise/Lower - Auto Mode Diagnostics
     Marker Raise/Lower - Manual Mode Diagnostics
     Pneumatic Down Force Diagnostics

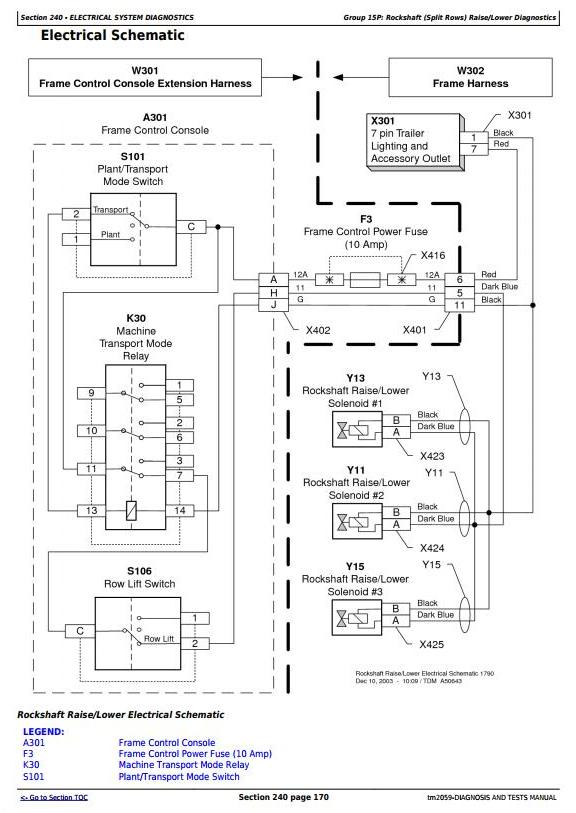

     Rockshaft (Split Rows) Raise/Lower Diagnostics
     Transport and Wing Wheels Raise/Lower Diagnostics
     Connectors
  Hydraulic System Diagnostics
     General Information
     CCS Auxiliary Hydraulic Coupler (Optional) Diagnostics
     CCS Seed Delivery Fan Motor Diagnostics
     Field Raise/Lower Diagnostics
     Hydraulic Power Diagnostics
     Machine Fold/Unfold Diagnostics
     Marker Raise/Lower integrated with Frame Raise/Lower Diagnostics
     Marker Raise/Lower - Stand Alone SCV Diagnostics
     Rockshaft (Split Rows) Raise/Lower Diagnostics
     Transport and Wing Wheels Raise/Lower Diagnostics
     Hydraulic Components
