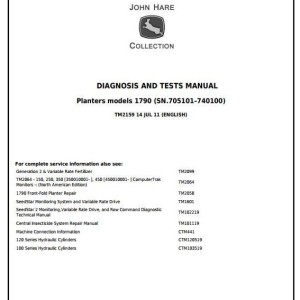

John Deere 1790 Front-Fold Planter Diagnosis Test Manual TM2159

John Deere 1790 Front-Fold Planter Diagnosis Test Manual TM2159
Language: English
Format: PDF
Document: Diagnosis Test Manual
Machine: Front-Fold Planter
Machine Model: 1790 (SN.705101–740100)
Pages: 719 Pages
Part Number: TM2159

Contents:
  Foreword
  General Information
     Safety
     Lubricants

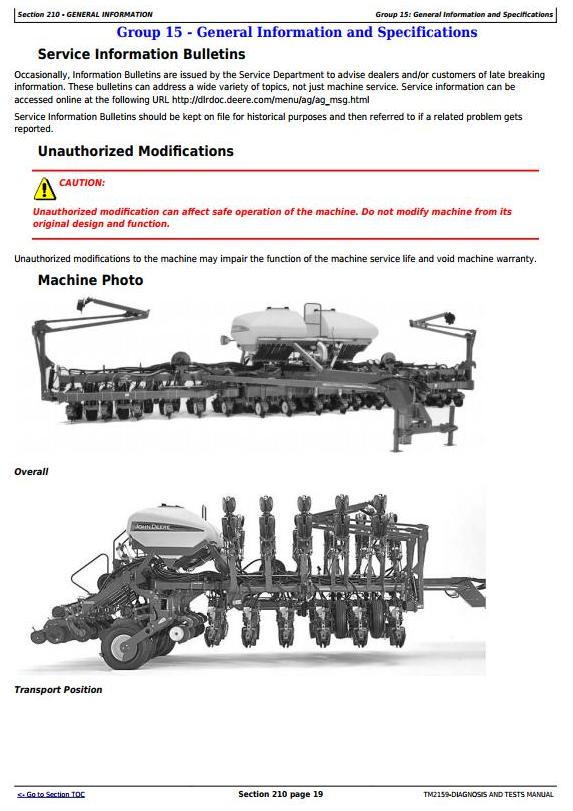

     General Information and Specifications
  Observable Symptoms
     Electrical
     Hydraulics
  Electrical Diagnostics
     How To Use This Diagnostic Information
     Solenoid Sequence Table
     CCS Auxiliary Hydraulics Coupler Blower Switch Type Identification
     CCS Auxiliary Hydraulics Coupler Blower Switch Diagnostics - Type A
     CCS Auxiliary Hydraulics Coupler Blower Switch Diagnostics - Type B
     CCS Auxiliary Hydraulics Coupler Blower Switch Diagnostics - Type C
     CCS Auxiliary Power Diagnostics
     CCS Low Tank Warning Type Identification
     CCS Low Tank Warning Diagnostics - Type A
     CCS Low Tank Warning Diagnostics - Type B
     CCS Low Tank Warning Diagnostics - Type C
     CCS Seed Delivery Agitator Type Identification
     CCS Seed Delivery Agitator Diagnostics - Type A
     CCS Seed Delivery Agitator Diagnostics - Type B
     CCS Seed Delivery Agitator Diagnostics - Type C
     CCS Seed Delivery Blower Type Identification
     CCS Seed Delivery Blower Diagnostics - Type A
     CCS Seed Delivery Blower Diagnostics - Type B
     CCS Seed Delivery Blower Diagnostics - Type C
     CCS Tank Fill Lights Diagnostics
     Convenience Outlet Power Extension Diagnostics
     Drawbar Hitch/Independent Marker Diagnostics
     Field-Plant Raise/Lower Type Identification
     Field-Plant Raise/Lower Diagnostics - Type A
     Field-Plant Raise/Lower Diagnostics - Type B
     Field-Plant Raise/Lower Diagnostics - Type C
     Half Width Disconnect Type Identification
     Half Width Disconnect Diagnostics - Type A
     Half Width Disconnect Diagnostics - Type B
     Half Width Disconnect Diagnostics - Type C
     Lighting Overall Diagnostics
     Machine Fold-Unfold Type Identification
     Machine Fold-Unfold Diagnostics - Type A
     Machine Fold-Unfold Diagnostics - Type B
     Machine Fold-Unfold Diagnostics - Type C
     Marker Raise/Lower - Auto Mode Type Identification
     Marker Raise/Lower - Auto Mode Diagnostics - Type A
     Marker Raise/Lower - Auto Mode Diagnostics - Type B
     Marker Raise/Lower - Manual Mode Type Identification
     Marker Raise/Lower - Manual Mode Diagnostics - Type A
     Marker Raise/Lower - Manual Mode Diagnostics - Type B
     Pneumatic Down Force Diagnostics
     Rockshaft (Split Rows) Raise/Lower Type Identification
     Rockshaft (Split Rows) Raise/Lower Diagnostics - Type A
     Rockshaft (Split Rows) Raise/Lower Diagnostics - Type B
     Transport and Wing Wheels Raise/Lower Type Identification
     Transport and Wing Wheels Raise/Lower Diagnostics - Type A
     Transport and Wing Wheels Raise/Lower Diagnostics - Type B
     Transport and Wing Wheels Raise/Lower Diagnostics - Type C
     Connector Locations
  Hydraulic System Diagnostics
     General Information
     CCS Auxiliary Hydraulic Coupler Diagnostics
     CCS Seed Delivery Blower Motor Diagnostics
     Drawbar Hitch/Independent Marker Diagnostics
     Field Raise/Lower Type Identification
     Field Raise/Lower Diagnostics - Type A
     Field Raise/Lower Diagnostics - Type B
     Hydraulic Power Type Identification
     Hydraulic Power Diagnostics - Type A
     Hydraulic Power Diagnostics - Type B
     Machine Fold/Unfold Type Identification
     Machine Fold/Unfold Diagnostics - Type A
     Machine Fold/Unfold Diagnostics - Type B
     Marker/Frame Raise/Lower Integrated Diagnostics
     Marker Raise/Lower - Independent SCV Diagnostics
     Rockshaft (Split Rows) Raise/Lower Type Identification
     Rockshaft (Split Rows) Raise/Lower Diagnostics - Type A
     Rockshaft (Split Rows) Raise/Lower Diagnostics - Type B
     Transport and Wing Wheels Raise - Lower Type Identification
     Transport and Wing Wheels Raise - Lower Diagnostics - Type A
     Transport and Wing Wheels Raise - Lower Diagnostics - Type B
     Vacuum Diagnostics
     Variable Rate Drive Type Identification
     Variable Rate Drive Diagnostics - Type A
     Variable Rate Drive Diagnostics - Type B
     Hydraulic Component Locations
