John Deere 1895 60ft N560F SPF No Till Drill Diagnostic Technical Manual TM140019

John Deere 1895 60ft N560F SPF No Till Drill Diagnostic Technical Manual TM140019
Language: English
Format: PDF
Document: Diagnostic Technical Manual
Machine: No Till Drill
Machine Model: 1895 , N560F
Pages: 468 Pages
Part Number: TM140019

Contents:
  Foreword
  General Information
     Safety
     General References
     References for Technical Information
  Diagnostic Trouble Codes (DTC)
     Blockage Monitoring Unit (BMU)
     Independent Depth Control (IDC)
     Tower Blockage Module (TBM)
  Observable Symptom and System Diagnostics
     All - Run Blockage Observable Symptoms
     CAN Bus Observable Symptoms
     Primary Blockage Observable Symptoms
     Height Sensors Observable Symptoms
     Lighting - Transport Lights (NA) Observable Symptoms
     TruSet Depth Control Observable Symptoms
     Wing Fold Observable Symptoms
     Fold/Unfold Control Observable Symptoms
  Electrical
     General Information
     Calibration Procedures
     Theory of Operation

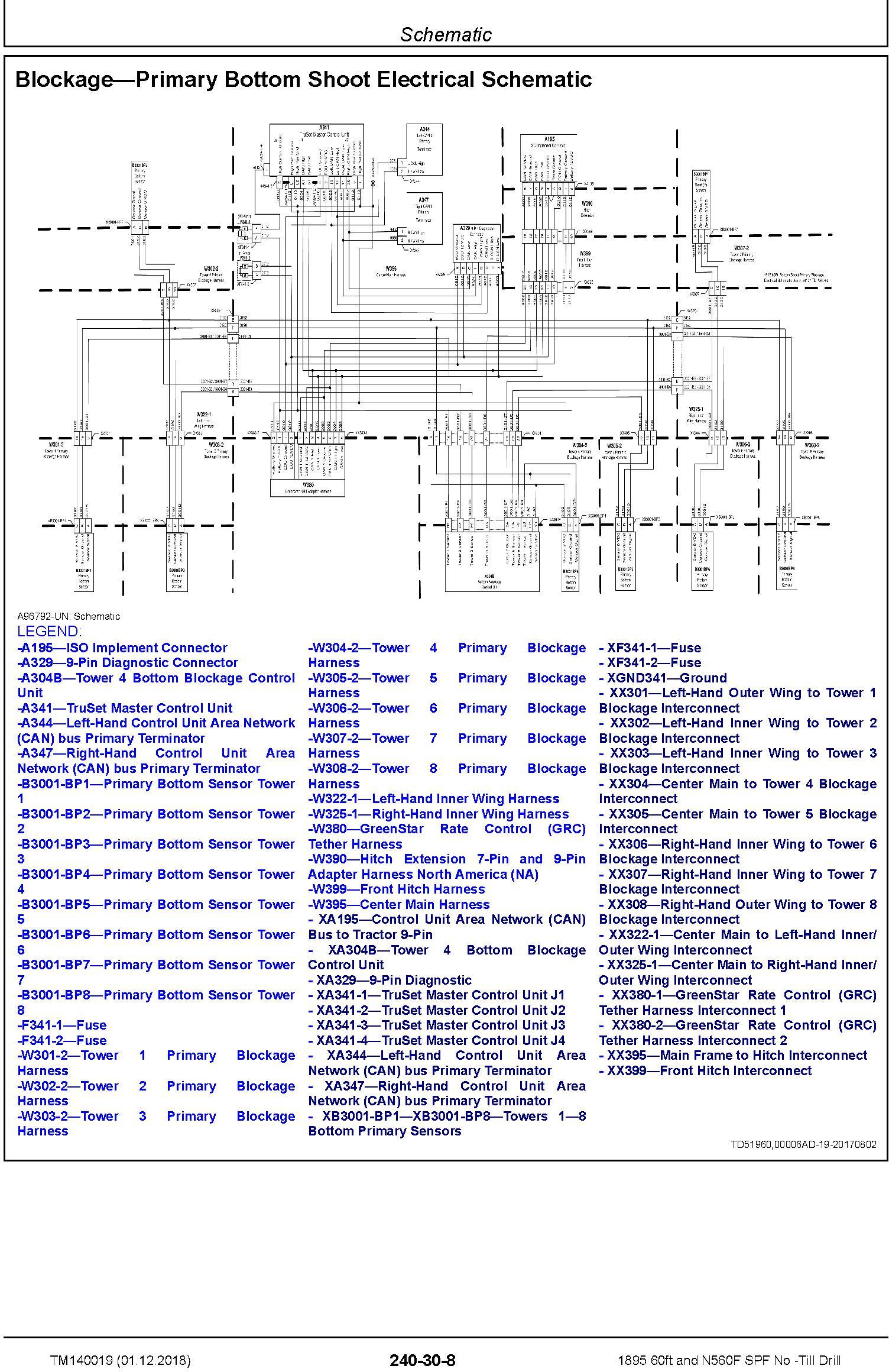

     Schematic
     Diagnostic Test and Adjustments
  Electronic Control Units
     General Information
     Reprogramming Air Seeder Controllers
     Programming Electronic Control Units
     Blockage Monitoring Control Unit (BMU) Diagnostic Addresses
     Independent Depth Control (IDC) Unit Diagnostic Addresses
     Tower Blockage Monitor (TBM) Diagnostic Addresses
  Electrical Component Information
     General Information
     Electrical Assemblies
     Sensors
     Lights
     Fuses
     Switches

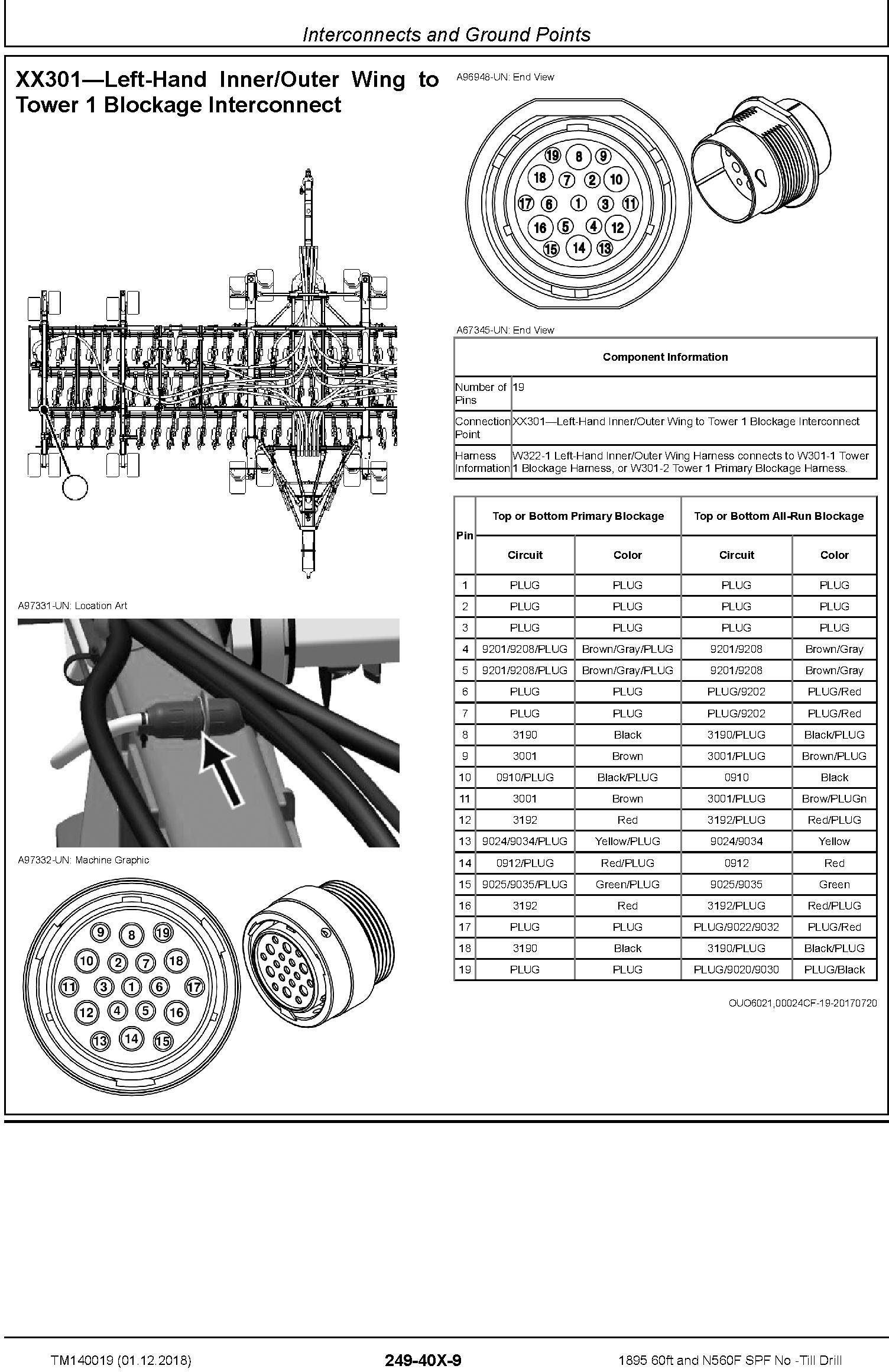

     Interconnects and Ground Points
     Electronically Actuated Mechanical Devices
  Hydraulics
     General Information
     Theory of Operation
     Schematic
     Diagnostic Test and Adjustments
  Hydraulics Component Information
     General Information
     Sensor or Gauge
     Cylinder, Actuator, or Piston
     Check Valve
     Valve Block, Assembly, or Gearcase
     Orifice
     Valve
     Diagnostic Receptacle or Coupler
     Solenoid Valve
  Fertilizer
     Theory of Operation
     Schematic
     Diagnostic Test and Adjustments
  Fertilizer Component Information
     Sensors
     Solenoid Valve
  Tools
     General Information
