John Deere 2140 Tractor Technical Manual TM4373

John Deere 2140 Tractor Technical Manual TM4373
Language: English
Format: PDF
Document: Technical Manual
Machine: Tractor
Machine Model: 2140 All Inclusive
Pages: 1236 Pages
Part Number: TM4373

Contents:
 GENERAL
   Specifications and special tools
   Pre-delivery, delivery and after-sales inspections
   Lubrication and periodic service
   Engine and tractor tune-up
   Tractor separation (tractors without increased lift capacity)
   Tractor separation (tractors with increased lift capacity)
 ENGINE
   Specifications
   Radiator
 FUEL AND AIR INTAKE SYSTEM
   Specifications and special tools
   General information, diagnosing malfunctions
   Fuel tank and water trap
   Cold weather starting aids
   Speed control linkage
   Air cleaner
 ELECTRICAL SYSTEM
   Specifications and special tools
   Description, diagnosing malfunctions and tests
   Wiring harnesses
   Controls and instruments
   Lighting systems
   Wiring diagrams
   Starting motor
   Alternator
 POWER TRAIN
   Specifications and special tools
   Description, operation and lubricating system
   Clutch operating linkages
   Engine clutches
   Hi-Lo shift unit
   Creeper transmission
   Transmission shift linkage
   Synchronized transmission and transmission oil pump
   Collar shift transmission and transmission oil pump
   Differential
   Final drives
   Independent PTO
   Front PTO
   Mechanical front wheel drive
 STEERING SYSTEM AND BRAKES
   Specifications and special tools
   Hydrostatic steering (operating pressure: 12000 kPa; 120 bar; 1740 psi)
   Hydrostatic steering (operating pressure: 15000 kPa; 150 bar; 2180 psi)
   Power steering
   Manual steering
   Brakes
 HYDRAULIC SYSTEM
   Specifications and special tools
   Description, diagnosing malfunctions and pressure tests
   Oil reservoir, filter, valves and oil cooler
   Hydraulic pumps

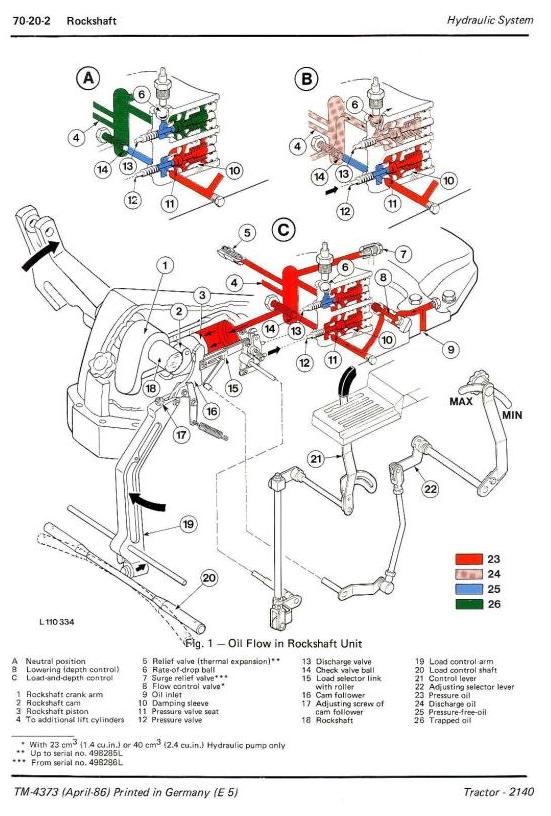

   Rockshaft
   Front hitch
   Selective control valves (spool type)

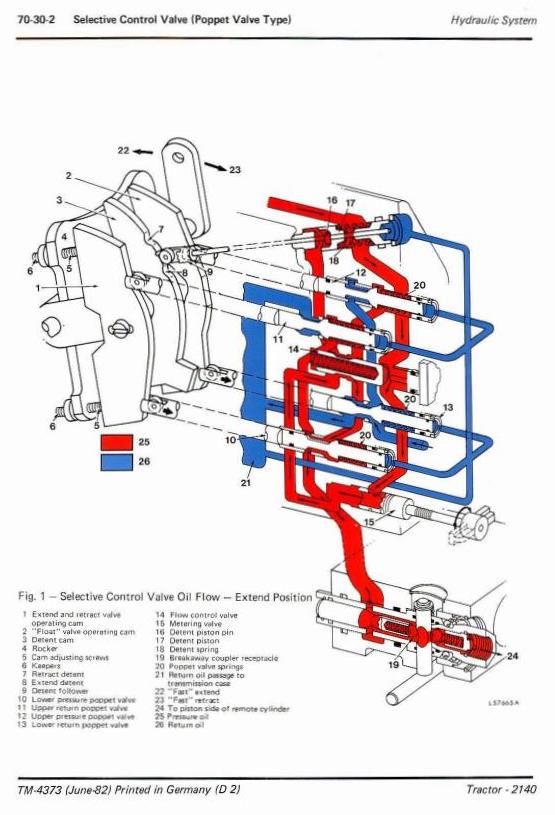

   Selective control valves (poppet valve type)
   Hose couplers
   Remote cylinder
   Selective control valves (Tractor manufactured in Spain)
 MISCELLANEOUS
   Specifications and special tools
   Front axle
   Belt pulley
   Front and rear wheels
   Axla trailer hitch
 OPERATOR'S CABS
   Specifications and special tools
   Air conditioning system
   Ventilation and heating
   Operator's seats
   OPU cab
   SG2 cab
   Roll guard
