John Deere 2355 2555 2755 2855N Tractor Technical Manual TM4434

John Deere 2355 2555 2755 2855N Tractor Technical Manual TM4434
Language: English
Format: PDF
Document: Technical Manual
Machine: Tractor
Machine Model: 2355, 2555, 2755, 2855N
Pages: 839 Pages
Part Number: TM4434

Contents:
  05 - SAFETY
  10-GENERAL
     05 - Specifications
     10- Predelivery, delivery and after-sales inspections
     15- Lubrication and service
     20 - Tune-up

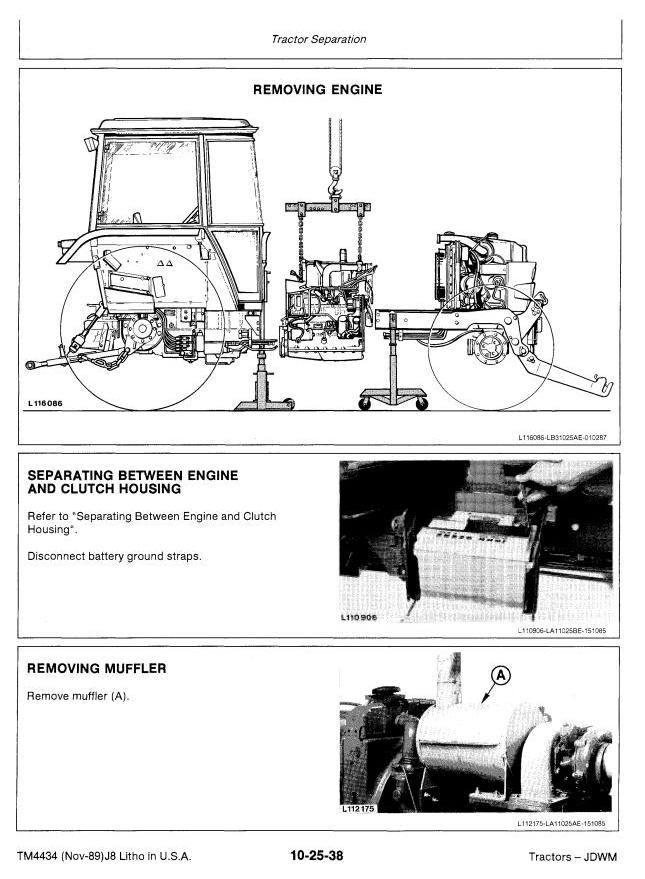

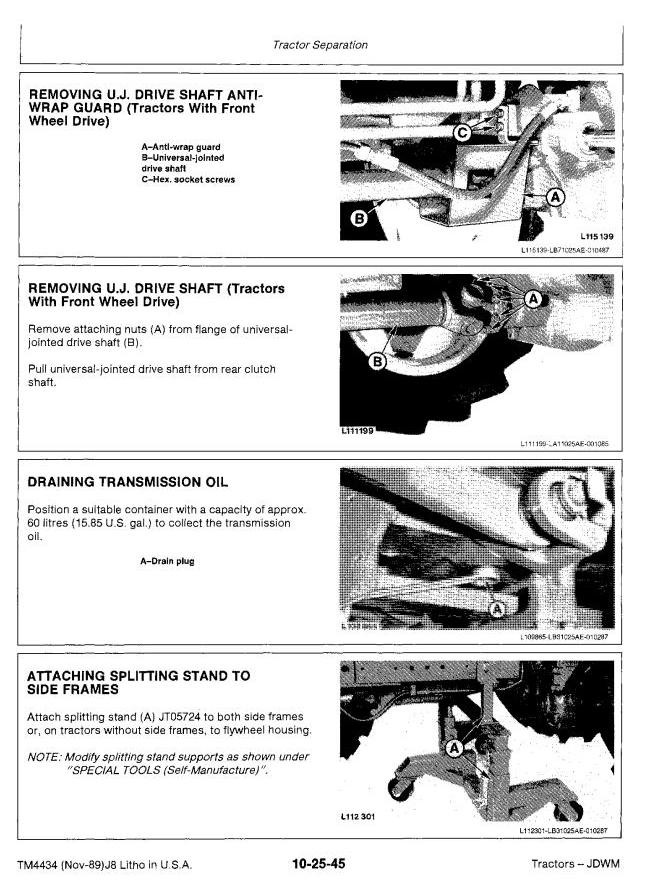

     25 -Tractor separation
  20 -ENGINE
     05 - Radiator, viscous fan drive and fan
     30- FUEL AND AIR INTAKE SYSTEM
     05 - Fuel tank, auxiliary fuel tank and water trap
     10- Cold weather starting aids
     15 -Speed control linkage
     20 - Air cleaner
  40 - ELECTRICAL SYSTEM
     05 - Wiring harnesses
     10- Controls and instruments (without SOUND-GARD body)
     15- Controls and instruments (with SOUND-GARD body)
     20 - Lighting system
     25 - Starting motor
     30 - Alternator
  50 -POWER TRAIN
     05 - Clutch operating systems
     10- Engine single-stage clutch (without Reverser)
     15- Engine single-stage clutch (with Reverser)
     20 - Engine dual-stage clutch
     25 - Hi-Lo shift unit
     30 - Reverser
     35 - Creeper transmission
     40 - Transmission - console shift
     45 - Transmission - center shift
     50 - Synchronized transmission and transmission oil pump
     55 - Collar-shift transmission and transmission oil pumps
     60 - Differential
     65 - Final drives
     70 - Independent PTO shafts
     75- Continuous-running PTO's
     80 - Front PTO
     85 - Front wheel drive u.j. drive shaft and disk clutch
  60- STEERING SYSTEM AND BRAKES
     05 - Hydrostatic steering
     10- Steering cylinder (without front wheel drive)
     15- Power steering
     20 - Hydraulic brakes
     25 - Handbrake
  70- HYDRAULIC SYSTEM
     05 - Valves
     10- Hydraulic pumps
     15- Rockshaft
     25 - Selective control valves (spool type)
     30 - Selective control valves (poppet valve type)
     35- ISO breakaway couplers
     40 - ISO quick couplers
     45 - Remote cylinder
  80 -MISCELLANEOUS

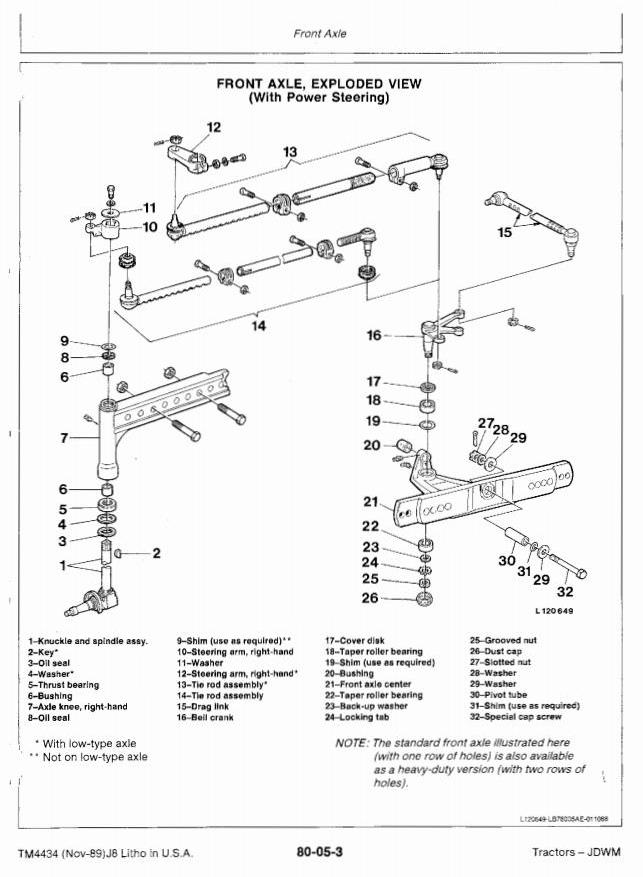

     05 - Front axle
     10 - Front and rear wheels
  90 - OPERATOR'S STATION
     05 - Sate handling ot refrigerants
     06- Servicing air conditioning system
     07 - Compressor (up to tractor Serial No. 663 473L)
     08 - Compressor (from tractor Serial No. 663 474L)
     09 - Components of air conditioning system
     10- Cab ventilation and heating
     15- Operator's seats
     20 - SOUND-GARD Body
     25 - 2-post roll guard
     30- 2-post telescopic roll guard
