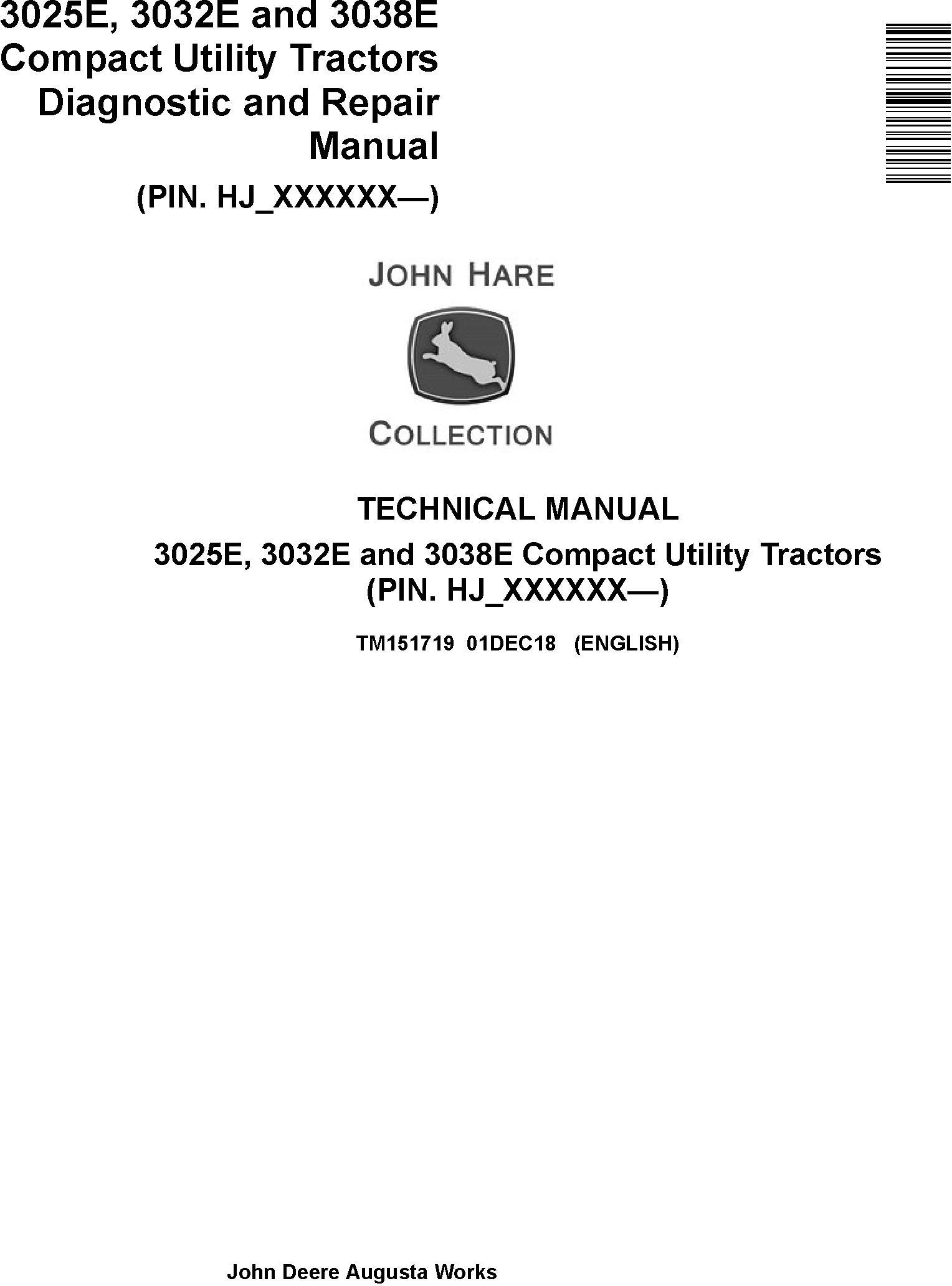

John Deere 3025E 3032E 3038E Compact Utility Tractor Diagnostic Repair Manual TM151719

John Deere 3025E 3032E 3038E Compact Utility Tractor Diagnostic Repair Manual TM151719
Language: English
Format: PDF
Document: Tractor Diagnostic Repair Manual
Machine: Compact Utility Tractor
Machine Model: 3025E, 3032E, 3038E (PIN. HJ_XXXXXX—)
Pages: 620 Pages
Part Number: TM151719

Contents:
  Foreword
  General Information
     Safety
     General References
     Technical Specific References
     Fuel and Lubricants
     Serial Number Locations
  Engine Repair
     Engine
     Cooling System
  Fuel, Air Intake, and Exhaust Repair
     Fuel
     Air Intake
     Exhaust
  Electrical Repair
     Battery, Starter and Alternator
     Electrical System Components
  Drive System and Transmissions Repair
     Separation
     Power Train
     MFWD
     Differential
     PTO
  Steering and Brake Repair
     Steering
     Brake
  Hydraulics Repair
     Hydraulic Pump and Filter
     Rockshaft
     Range Control and Three Point Hitch
     Selective Control Valve
     Hydraulic Lines
  Miscellaneous Repair
     Hood and Side Panels
     Fenders
     Wheels
  Operator`s Station Repair
  Diagnostic Trouble Codes
     General References
     Instrument Cluster Control (ICC) Diagnostic Trouble Codes
     Engine Control Unit (ECU) Diagnostic Trouble Codes
  Observable Symptoms and System Diagnostics
     General References
     Engine System Diagnostics
     Fuel, Air Intake, Exhaust, and Cooling System Diagnostics
     Electrical System Diagnostics
     Electronic Control Unit System Diagnostics
     Drive Systems and Transmission System Diagnostics
     Steering and Brakes System Diagnostics
     Hydraulic System Diagnostics
  Engine Operation, Test, and Adjustments
     General References
     Calibrations, Preliminary Checks and Operational Checks

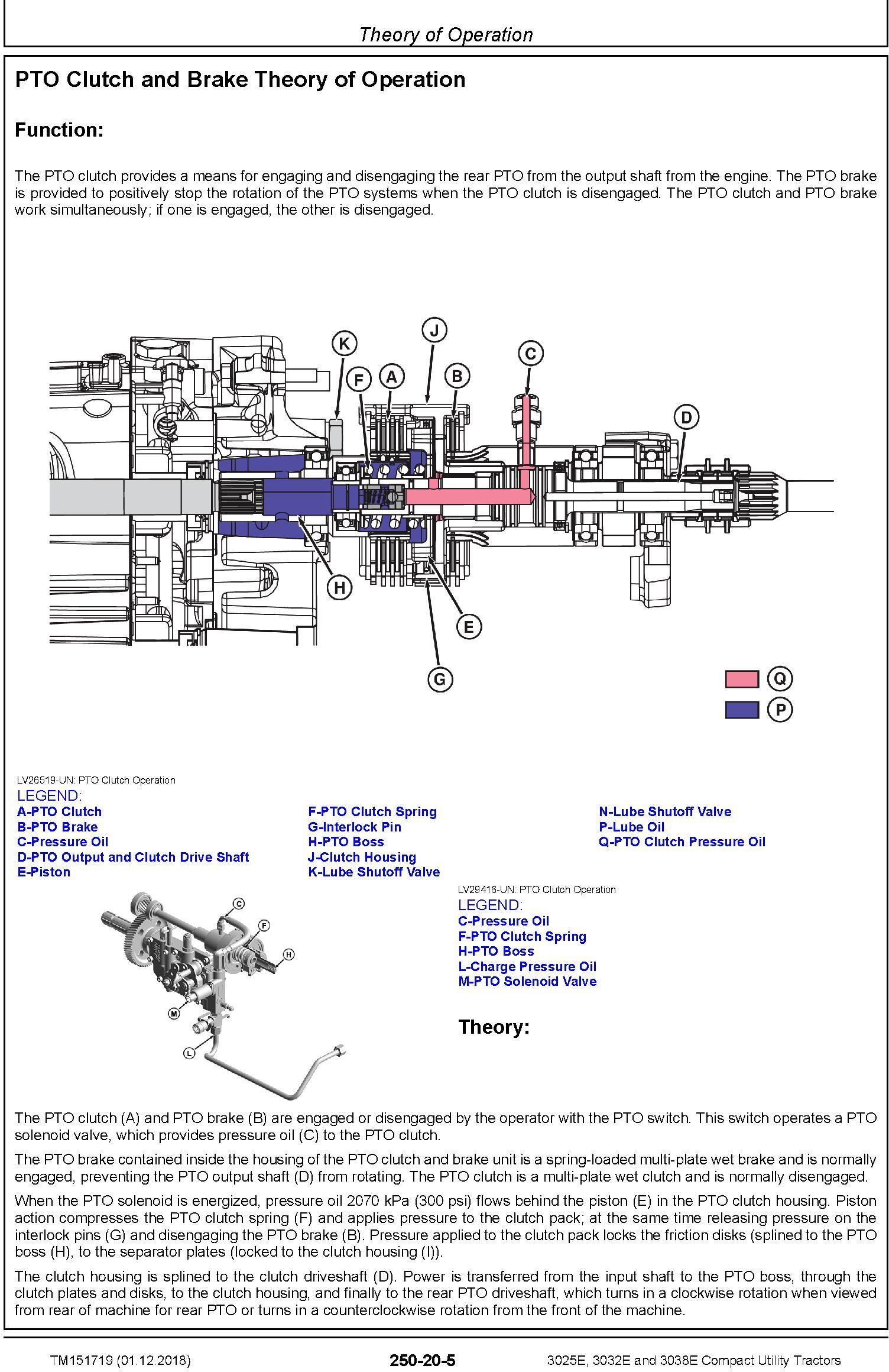

     Theory of Operation
     Test and Adjustments
  Fuel , Air Intake, Exhaust, and Cooling Operation, Test, and Adjustments
     General References
     Calibrations, Preliminary Checks and Operational Checks
     Theory of Operation
     Component and Connector Information
     Test and Adjustments
  Electrical General and Theory of Operation
     General References
     Key Switch, Starter and Alternator Theory of Operation
     Instrument Cluster Control (ICC) Theory of Operation
     Engine Control Unit (ECU) Theory of Operation
     Lights, Turn Signals, Cruise Control Theory of Operation
  Electrical Schematics
     General References
     Starting and Charging-with ECU (SE1A)
     Starting and Charging-without ECU (SE1B)
     Lighting-without License Light (SE2A)
     Lighting-with License Light (SE2B)
     Brake Switch, Horn, and Rear Trailer Connector (SE2C)
     Instrument Cluster Control (ICC) (SE3)
     Engine Control Unit (ECU) (SE4)
     Cruise Control Kit (SE6)
     Electrical Harness Diagrams
  Electrical Components and Connectors
     General References
     Starting and Charging-with ECU (SE1A)
     Starting and Charging-without ECU (SE1B)
     Lighting-without License Light (SE2A)
     Lighting-with License Light (SE2B)
     Brake Switch, Horn, and Rear Trailer Connector (SE2C)
     Instrument Control Cluster (ICC) (SE3)
     Engine Control Unit (ECU) (SE4)
     Cruise Control Kit (SE6)
     Fuses and Relays

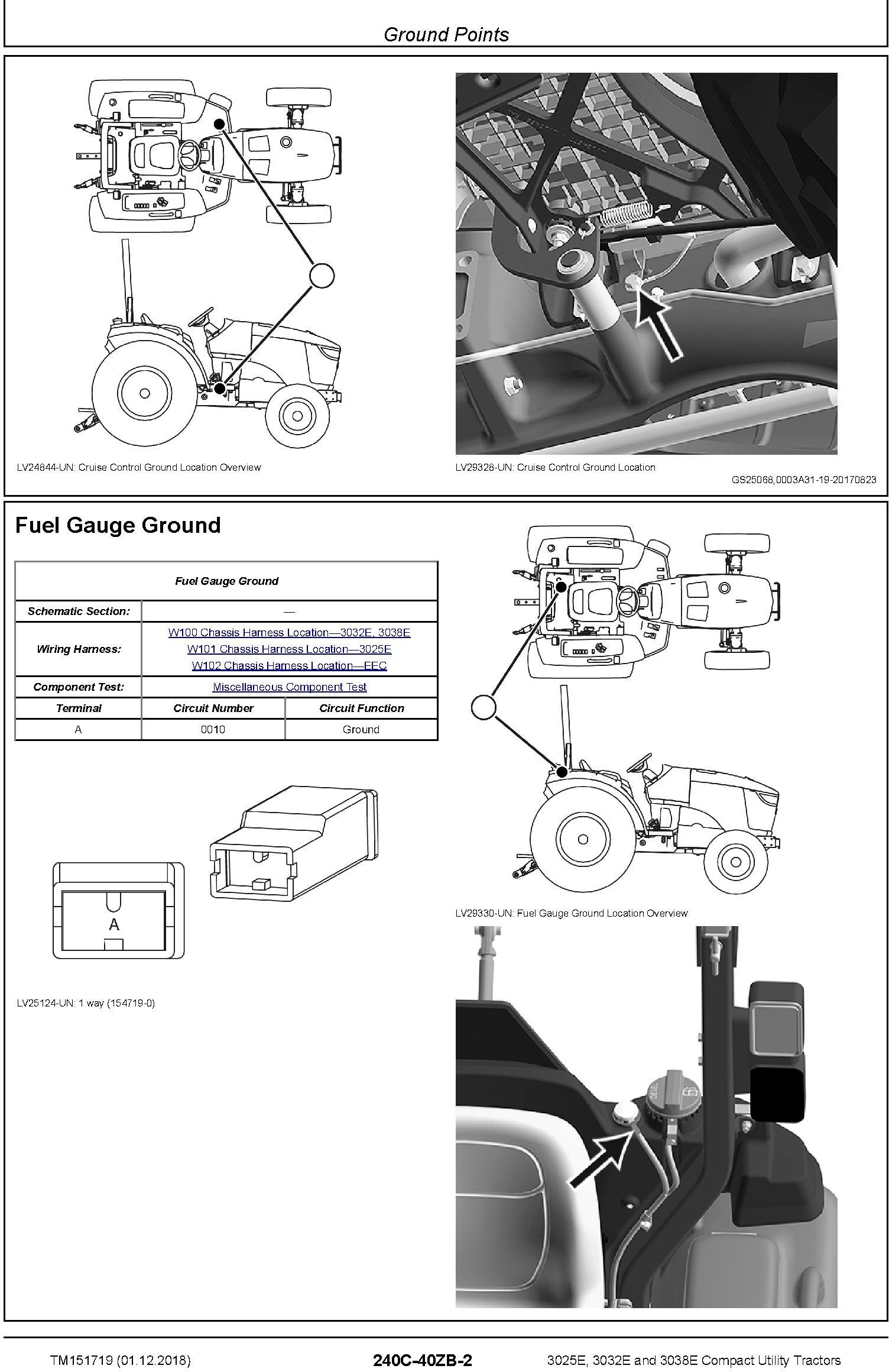

     Ground Points
     Interconnects
     Harnesses
  Electrical Test and Adjustments
     General References
     Test and Adjustments
  Electronic Control Units
     General References
     Calibrations, Preliminary Checks and Operational Checks
     Theory of Operation
     Component and Connector Information
     Test and Adjustments
     Instrument Cluster Control (ICC)
     Engine Control Unit (ECU)
  Drive System and Transmission Operation, Test, and Adjustments
     General References
     Calibrations, Preliminary Checks and Operational Checks
     Theory of Operation
     Schematics
     Component and Connector Information
     Test and Adjustments
  Steering and Brakes Operation, Test, and Adjustments
     General References
     Calibrations, Preliminary Checks and Operational Checks-Steering
     Calibrations, Preliminary Checks and Operational Checks-Brakes
     Theory of Operation-Steering
     Theory of Operation-Brakes
     Schematics-Steering
     Component and Connector Information-Steering
     Component and Connector Information-Brakes
     Test and Adjustments-Steering
     Test and Adjustments-Brakes
  Hydraulics Operation, Test, and Adjustments
     General References
     Calibrations, Preliminary Checks and Operational Checks
     Theory of Operation
     Schematics
     Component and Connector Information
     Test and Adjustments
  Cab/Open Operators Station Operation, Test, and Adjustments
     General References
     Seat Theory of Operation
     Schematics
     Component and Connector Information
  Service Tools
     General References
     Dealer Fabricated and Service Tools
