John Deere 3030 3130 Tractor Technical Manual TM4277
Support Contact:
Admin@autoepcsoft.org
John Deere 3030 3130 Tractor Technical Manual TM4277
Language: English
Format: PDF
Document: Technical Manual
Machine: Tractor
Machine Model: 3030, 3130 All Inclusive
Pages: 458 Pages
Part Number: TM4277
Contents:
GENERAL
Specifications
Pre-delivery, delivery and after-sales inspections
Lubrication and peridoc service
Engine and tractor tune-up
Tractor separation
ENGINE
General information, diagnosing malfunctions
Cylinder head and camshaft
Cylinder block,liners, pistons and connecting rods
Crankshaft, main bearings and flywheel
Timing gear train
Oil pump, oil pressure regulating valve and oil filter
Engine cooling system
Speed control linkage
FUEL SYSTEM
Diagnosingmalfunctions
Fuel tank, water trap, transfer pump and fuel filter
Roto Diesel fuel injection pump
Fuelinjection nozzles
Cold weather starting aids
Air intake system
ELECTRICAL SYSTEM
Diagnosingmalfunctions
''Bilux'' lighting system (on earlier tractor Machine Models)
''Bilux'' lightingsystem (on later tractor Machine Models)
''Bilux'' lightingsystem (tractors with operator's cab)
Sealed-beam lighting system (on earlier tractor Machine Models)
Sealed-beam lighting system (on later tractor Machine Models)
Starting motor
Alternator and regulater
POWER TRAIN
Engine clutch and clutch linkage
High-Low shift unit
Collar-shift transmission

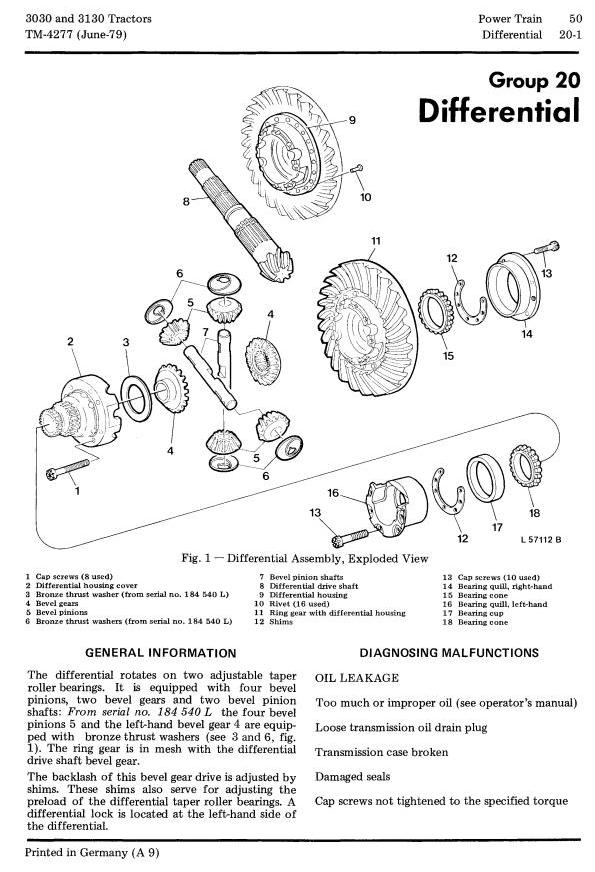

Differential
Final drives
PTO and PTO clutch
FRONT AXLE, STEERING SYSTEM AND BRAKES
Front axle
Steering system
Hydraulic brakes
HYDRAULIC SYSTEM
General information, diagnosing malfunctions and pressure tests
Oil reservoir,filter, valves and oil cooler
Hydraulic pump and transmission oil pump
Rockshaft
Selective control valve (spool type)
Selective control valve (poppet valve type) and breakaway coupler
Remote cylinder
MISCELLANEOUS
Belt pulley
De Luxe seat
Front and rear wheels
Roll guard
Operator's cab ventilation and heating
Operator's cab
