John Deere 310K Repair Technical Manual TM12436

John Deere 310K Repair Technical Manual TM12436
Size: 26.2 MB
Machine: Backhoe Loader
Machine Model: 310K(PIN:1T0310KX**E219607-)
Publication Date: 2015
Page: 723 Pages
Part Number: TM12436

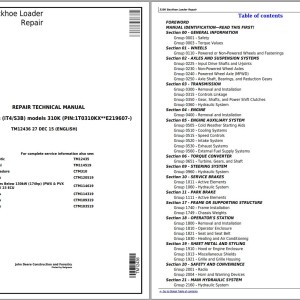

Table of Content:
FOREWORD
MANUAL IDENTIFICATION—READ THIS FIRST!
Section 00 - GENERAL INFORMATION
Group 0001 - Safety
Group 0003 - Torque Values
Section 01 - WHEELS
Group 0110 - Powered or Non-Powered Wheels and Fastenings
Section 02 - AXLES AND SUSPENSION SYSTEMS
Group 0225 - Input Drive Shafts and U-Joints
Group 0230 - Non-Powered Wheel Axles
Group 0240 - Powered Wheel Axle (MFWD)
Group 0250 - Axle Shaft, Bearings, and Reduction Gears
Section 03 - TRANSMISSION
Group 0300 - Removal and Installation
Group 0315 - Controls Linkage
Group 0350 - Gear, Shafts, and Power Shift Clutches
Group 0360 - Hydraulic System
Section 04 - ENGINE
Group 0400 - Removal and Installation
Section 05 - ENGINE AUXILIARY SYSTEM
Group 0505 - Cold Weather Starting Aids
Group 0510 - Cooling Systems
Group 0515 - Speed Controls
Group 0520 - Intake System
Group 0530 - Exhaust Systems
Group 0560 - External Fuel Supply Systems
Section 06 - TORQUE CONVERTER
Group 0651 - Turbine, Gears, and Shaft
Section 09 - STEERING SYSTEM
Group 0960 - Hydraulic System
Section 10 - SERVICE BRAKES
Group 1011 - Active Elements
Group 1060 - Hydraulic System
Section 11 - PARK BRAKE
Group 1111 - Active Elements
Section 17 - FRAME OR SUPPORTING STRUCTURE
Group 1740 - Frame Installation
Group 1749 - Chassis Weights
Section 18 - OPERATOR′S STATION
Group 1800 - Removal and Installation
Group 1810 - Operator Enclosure
Group 1821 - Seat and Seat Belt
Group 1830 - Heating and Air Conditioning
Section 19 - SHEET METAL AND STYLING
Group 1910 - Hood or Engine Enclosure
Group 1913 - Miscellaneous Shields
Group 1921 - Grille and Grille Housing
Section 20 - SAFETY AND CONVENIENCE
Group 2001 - Radio
Group 2004 - Horn and Warning Devices
Section 21 - MAIN HYDRAULIC SYSTEM
Group 2160 - Hydraulic System
Section 31 - LOADER
Group 3100 - Loader
Group 3102 - Bucket
Group 3104 - Attachment Coupler
Group 3115 - Control Linkage
Group 3160 - Hydraulic System
Section 33 - BACKHOE
Group 3302 - Bucket
Group 3315 - Control Linkage
Group 3340 - Frames
Group 3360 - Hydraulic System
Section 38 - GRAPPLE
Group 3800 - Backhoe Hydraulic Thumb
Group 3860 - Backhoe Hydraulic Thumb Cylinder
Section 99 - DEALER FABRICATED TOOLS
Group 9900 - Dealer Fabricated Tools

For complete service information also see:
310K Backhoe Loader Diagnostic TM12435
JDLink (MTG) Technical Manual TM114519
Super Caddy Oil Cleanup Procedure CTM310
120 Series Hydraulic Cylinders CTM120519
4045 PowerTech Diesel Engines Below 130kW (174hp) (PWX & PVX
Interim Tier 4/Stage IIIB) Level 23 ECU CTM114619
120 Series Hydraulic Cylinders CTM114319
125 Series Hydraulic Cylinders CTM109319
100 Series Hydraulic Cylinders CTM103519
