John Deere 4120 4320 Compact Utility Tractor Diagnostic Repair Manual TM105019

John Deere 4120 4320 Compact Utility Tractor Diagnostic Repair Manual TM105019
Language: English
Format: PDF
Document: Diagnostic Repair Manual
Machine: Compact Utility Tractor
Machine Model: 4120 (SN. from 610001), 4320 (SN. from 620001) without Cab
Pages: 1251 Pages
Part Number: TM105019

Contents:
  Foreword
  Safety
     Safety
  Specifications and Information
     General Specifications
     Fuel and Lubricants
     Serial Number Locations
  Engine
     Specifications
     Tools and Materials

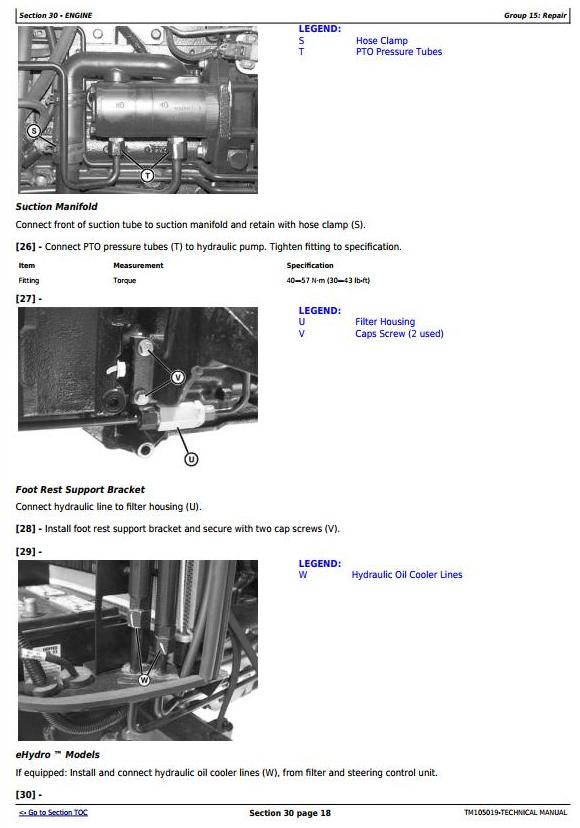

     Repair
  Electrical
     General Information
     Specifications
     Component Location

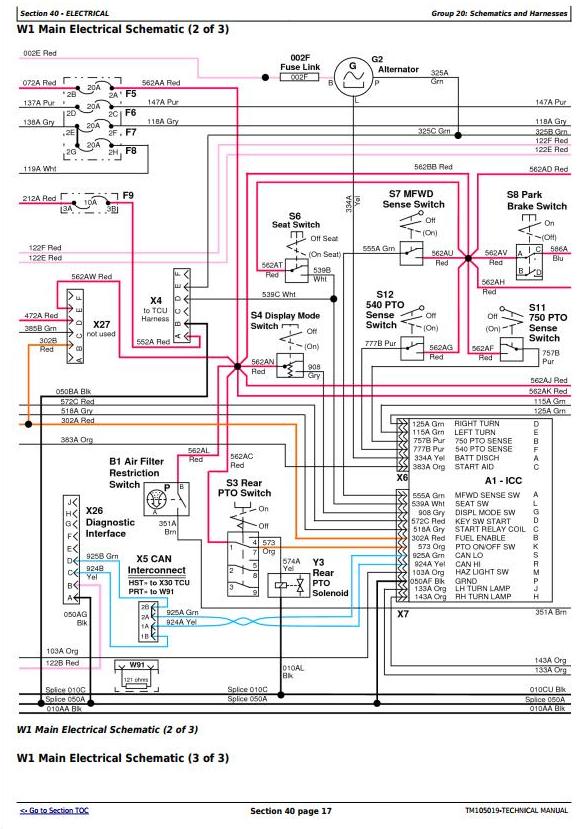

     Schematics and Harnesses
     Operation and Diagnostics
     Test and Adjustments
     Repair
     Service Codes
     Electronic Controllers
     Operation and Diagnostics - DTCs (TCU)
     Operation and Diagnostics - DTCs (ICC)
  Electrical - European
     Specifications
     Component Location
     Schematics and Harnesses
     Operation and Diagnostics
     Service Codes
     Electronic Controllers
     Operation and Diagnostics - DTCs (TCU)
     Operation and Diagnostics - DTCs (ICC)
  Power Train - PRT
     Specifications
     Component Location
     Theory of Operation
     Test and Adjustments
     Repair
  Power Train - Hydrostatic
     Specifications
     Component Location
     Schematics
     Theory of Operation
     Diagnostics
     Test and Adjustments
     Repair
  Power Train - Final Drive
     Specifications
     Component Location
     Theory of Operation
     Diagnostics
     Test and Adjustments
     Repair

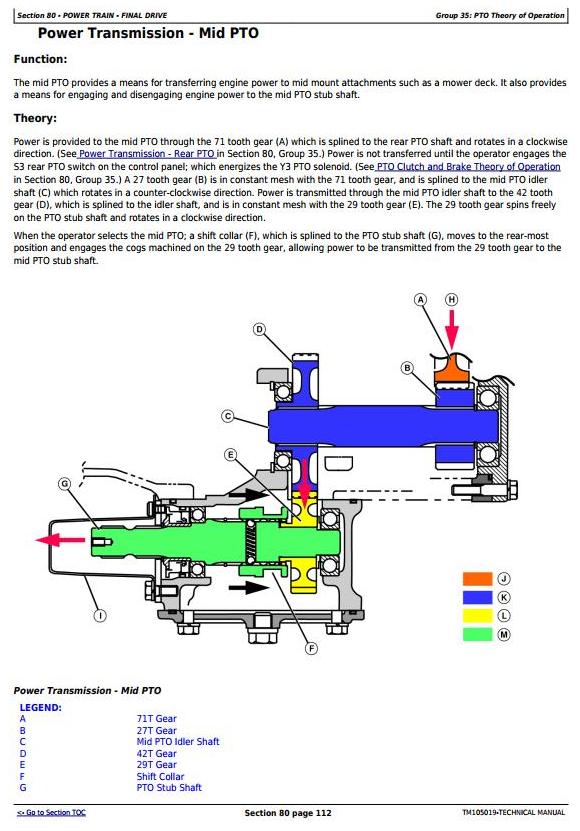

     PTO Theory of Operation
     PTO Repair
  Hydraulics
     Specifications
     Component Location
     Schematics & Harnesses
     Theory of Operation
     Diagnostics
     Test and Adjustments
     Repair
  Steering
     Specifications
     Component Location
     Theory of Operation
     Diagnostics
     Test and Adjustments
     Repair
  Brakes
     Specifications
     Component Location
     Theory of Operation
     Diagnostics
     Test and Adjustments
     Repair
  Miscellaneous
     Specifications
     Repair
