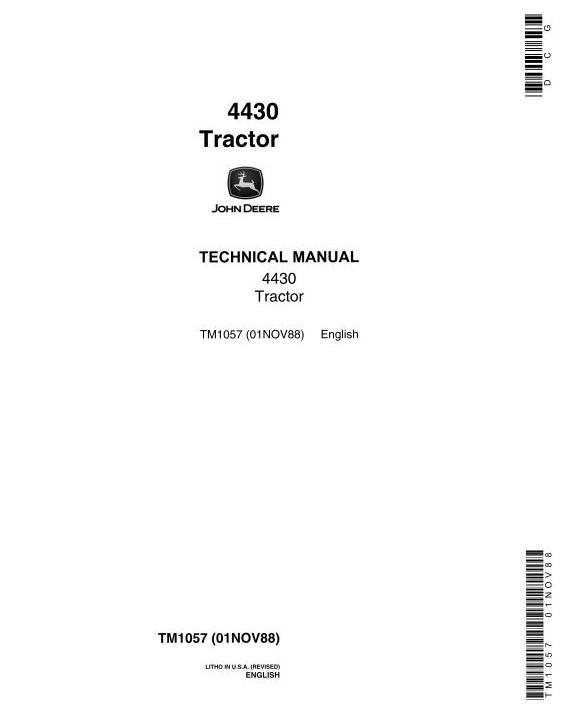

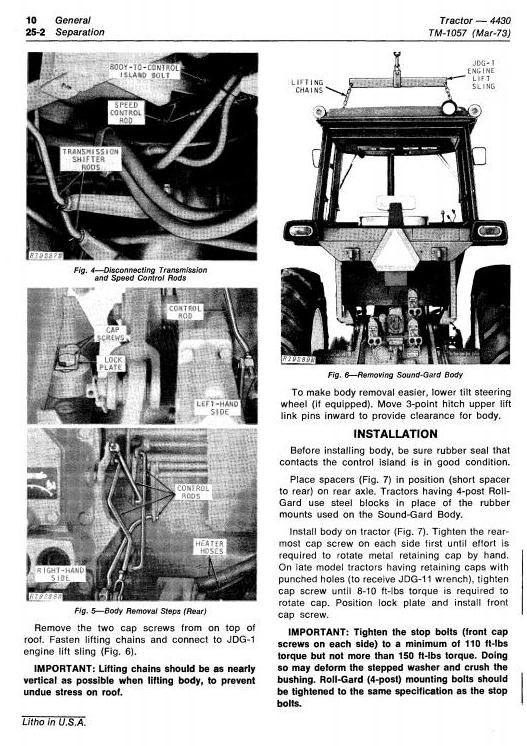

John Deere 4430 Tractor Technical Manual TM1057

John Deere 4430 Tractor Technical Manual TM1057
Language: English
Format: PDF
Document: Technical Manual
Machine: Row Crop Tractor
Machine Model: 4430 (SN. 000000-033108)
Pages: 688 Pages
Part Number: TM1057

Contents:
   SECTION 10-GENERAL
       Group 5-General Tractor Specifications
       Group 10-Predelivery, Delivery, and After-Sale Services
       Group 15-Tune-Up
       Group 20-Lubrication
       Group 25-Separation
       Group 30-Specifications and Special Tools
   SECTION 20-ENGINE
       Group 5-General Information and Diagnosis
       Group 10-Cylinder Head, Valve Train, and Camshaft
       Group 15-Cylinder Block, Liners, Pistons, and Rods
       Group 20-Crankshaft, Main Bearings, and Flywheel
       Group 25-Lubricating System
       Group 30-Cooling System
       Group 35-Specifications and Special Tools
   SECTION 30-FUEL SYSTEM
       Group 5-Diagnosing Malfunctions
       Group 10-Air Intake System
       Group 15-Diesel Fuel System
       Group 20-Speed Control Linkage
       Group 25-Specifications and Special Tools
   SECTION 40-ELECTRICAL SYSTEM

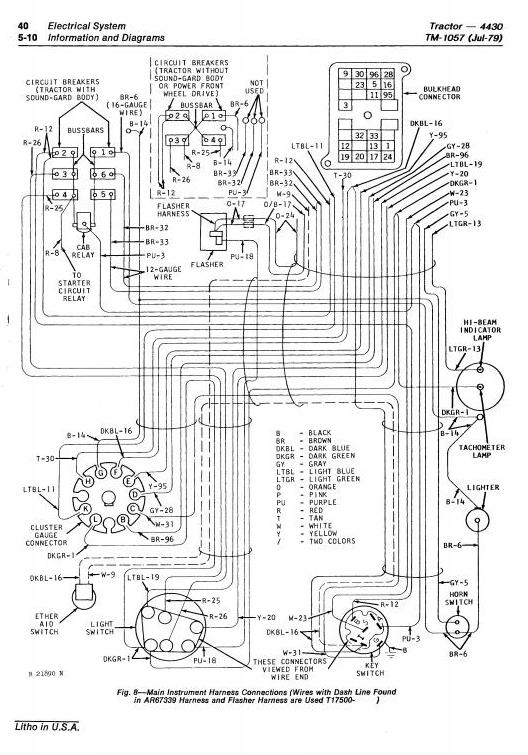

       Group 5-Information and Wiring Diagrams
       Group 10-Delcotron Charging Circuit
       Group 15-Delco-Remy Starting Circuit
       Group 20-John Deere Starting Circuit
       Group 25-Lighting and Accessory Circuits
       Group 30-Specifications and Special Tools
   SECTION 50-POWER TRAIN
       Group 5-Perma-Clutch
       Group 10-Creeper Transmission
       Group 15-Syncro-Range Transmission
       Group 20-Quad-Range Transmission
       Group 25-Power Shift Transmission
       Group 30-Differential
       Group 35-Final Drive
       Group 40-Hi-Crop Final Drive
       Group 45-PTO, Perma-Clutch
       Group 50-PTO, Power Shift
       Group 55-Power Front-Wheel Drive
       Group 60-Specifications and Special Tools
   SECTION 60-STEERING AND BRAKES
       Group 5-General Information
   SECTION 70-HYDRAULIC SYSTEM
       Group 5-General Information
       Group 6-General Hydraulic System Diagnosis and Test
       Group 10-Main Reservoir, Filters, Valves, and Oil Cooler
       Group 15-Hydraulic Pumps
       Group 20-Early Machine Model Power Steering
       Group 22-Late Machine Model Power Steering
       Group 25-Power Brakes
       Group 30-Selective Control Valve, Breakaway Couplers, and Remote Cylinders
       Group 35-Specifications and Special Tools
   SECTION 80-MISCELLANEOUS
       Group 5-Front Axles

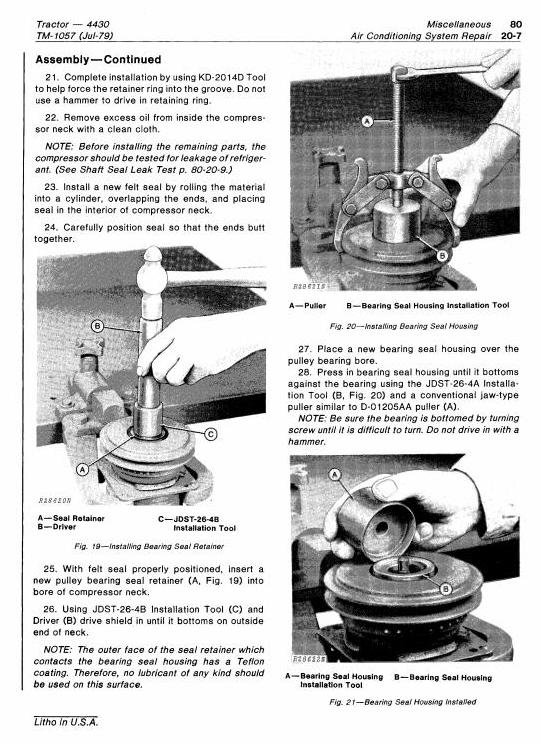

       Group 10-Air Conditioning System
       Group 15-Heating System
       Group 20-Specifications and Special Tools
