John Deere 4710 Self-Propelled Sprayer Diagnosis Test Manual TM2108

John Deere 4710 Self-Propelled Sprayer Diagnosis Test Manual TM2108
Language: English
Format: PDF
Document: Diagnosis Test Manual
Machine: Self-Propelled Sprayer
Machine Model: 4710 (SN: 004001 - XXXXXX)
Pages: 1419 Pages
Part Number: TM2108

Contents:
  Diagnostic Trouble Codes
     Fault Codes
     SSU - Steering System Diagnostic Trouble Codes
  4710 Self Propelled Sprayer Symptoms
     Engine
     Fuel/Air
     Electrical
     Power Train
     Brakes
     Hydraulics
     Suspension and Tread Adjust
     Steering
     Operator Station
     Solution System
     Foam Marker
  Engine Diagnosis and Test
  Fuel and Air Diagnosis and Test
  Electrical Diagnosis and Test
     Agitation Diagnostics
     Air Quality Diagnostics
     Auxiliary Power Diagnostics
     Caution Light Diagnostics
     CCU/SRC Controller Diagnostics
     Charging Diagnostics
     Dome and Sentry Light Diagnostics
     Engine Air Filter Switch Diagnostics
     Engine Coolant Sensor Diagnostics
     Engine Oil Pressure Switch Diagnostics
     Engine Speed Sensor Diagnostics
     Foam Marker (Dual Drop) Diagnostics
     Foam Marker (Single Drop) Diagnostics
     Fuel Level Sensor Diagnostics
     Fuel Shut-Off Diagnostics
     Horn Diagnostics
     Hydraulic Oil Temperature Sensor Diagnostics
     Hydrostatic Boost Diagnostics
     Ladder w/ Remote Control Diagnostics
     Ladder w/o Remote Control Diagnostics
     Lighter Diagnostics
     Lighting Diagnostics
     Load Sense Jam Valve Diagnostics
     Park Brake Diagnostics
     Power Diagnostics
     Radar Sensor Diagnostics
     Radio and Clock Diagnostics
     Seat Adjust Diagnostics
     Solution Pressure Diagnostics
     Solution Pump Diagnostics
     Speed Range Diagnostics
     Spray Control Diagnostics
     Spray Rate Diagnostics
     Start Aid Diagnostics
     Starting System Diagnostics
     Stop Light Diagnostics
     Throttle Diagnostics
     Traction Control Diagnostics
     Tread Adjust Diagnostics
     Wheel Speed Sensor Diagnostics
     Wiper Diagnostics

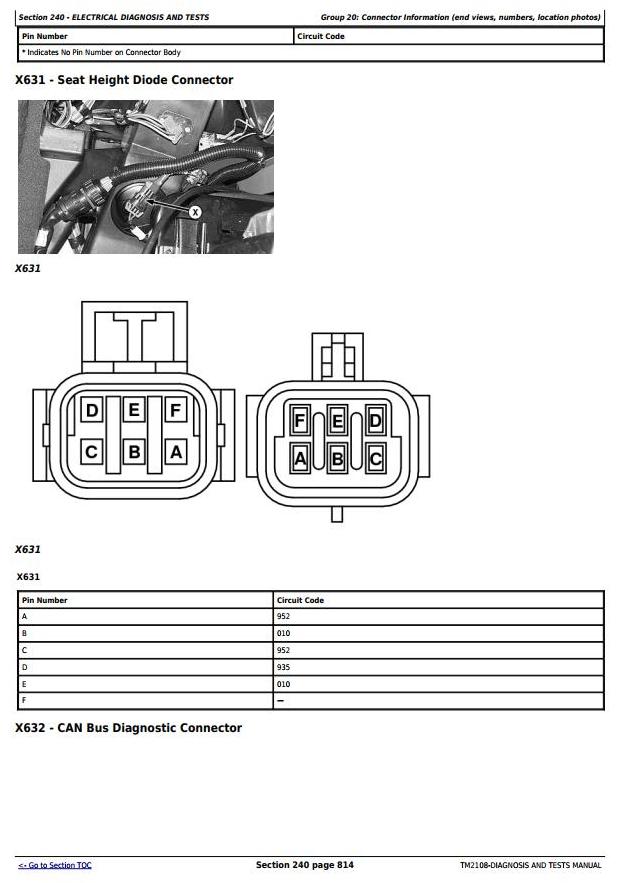

     Connector Information (end views, numbers, location photos)
  Power Train Diagnosis and Test
  Brake Systems Diagnosis and Test
  Hydraulic System Diagnosis and Test
  Suspension and Tread Adjust Diagnosis and Test
  Steering System Diagnosis and Test
  Operator Station Diagnosis and Test
     Air Conditioning and Heating Diagnostics
     Component Location
  Solution System Diagnosis and Test
  Foam Marker Diagnosis and Test
  Dealer Fabricated Tools
