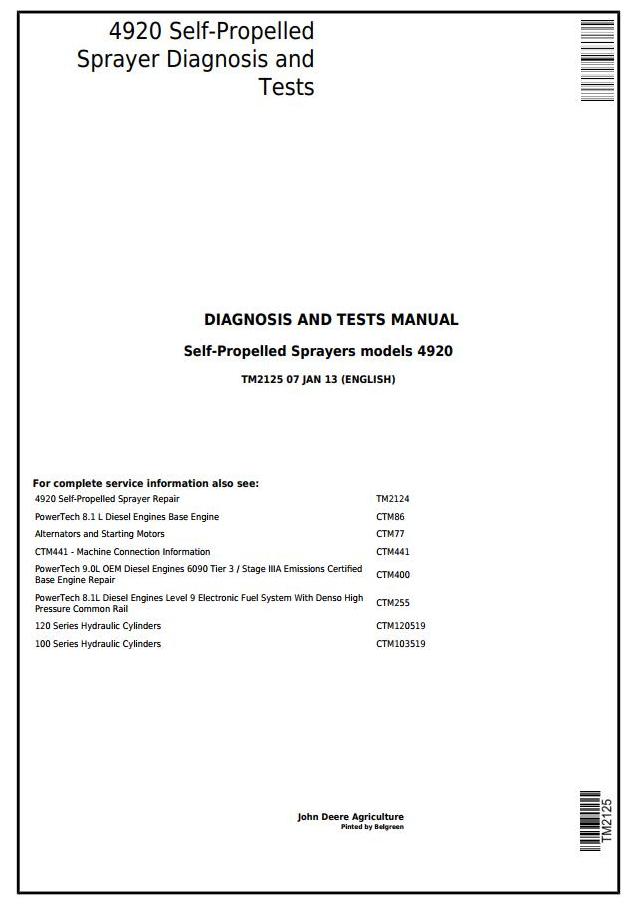

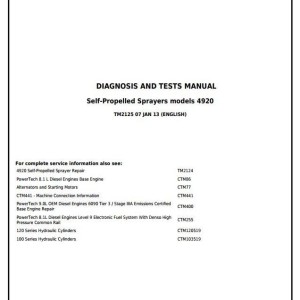

John Deere 4920 Self-Propelled Sprayer Diagnosis Test Manual TM2125

John Deere 4920 Self-Propelled Sprayer Diagnosis Test Manual TM2125
Language: English
Format: PDF
Document: Diagnosis Test Manual
Machine: Self-Propelled Sprayer
Machine Model: 4920
Pages: 1660 Pages
Part Number: TM2125

Contents:
  Diagnostics Trouble Codes
     FIELD DOC Basic Warning Messages
     FIELD DOC Connect Warning Messages
     GREENSTAR AutoTrac Assisted Steering System
     GREENSTAR Display
     GREENSTAR Mobile Processor
     GREENSTAR Parallel Tracking
     KeyCard and PC Data Storage Card
     STARFIRE Receiver
     STARFIRE iTC Receiver
     Terrain Compensation Module
     Codes By Number
  Observable Symptoms
     Electrical
     Power Train
     Brake System
     Hydraulic System
     Tread Adjust
     Steering
     Solution System
     Operator Station
     Foamer
     Automatic Air Suspension Leveling
  Engine Diagnosis and Test
  Air Intake and Cooling Systems
  Electrical Diagnosis and Test
     How To Use Diagnostic Information
     Diagnostic Codes and Addresses
     Test Procedures and Adjustments
     Agitation Diagnostics
     Air Quality Diagnostics
     Auxiliary Power Diagnostics
     Boom Fold Unfold Diagnostics
     Boom Leveling (Manual) Diagnostics
     Boom Leveling (Automatic) Diagnostics
     Boom Raise Lower Diagnostics
     Brake Pressure Sensor Diagnostics
     CAN Bus Diagnostics, Vehicle and Engine
     Caution Lamp Diagnostics
     Charging Diagnostics
     Chassis Controller Diagnostics
     Dome Light Diagnostics
     Drivetrain Status Diagnostics
     Dry Applicator System Diagnostics
     Dry Rate Control Unit Power Diagnostics
     Engine Control Unit-Overall Diagnostics

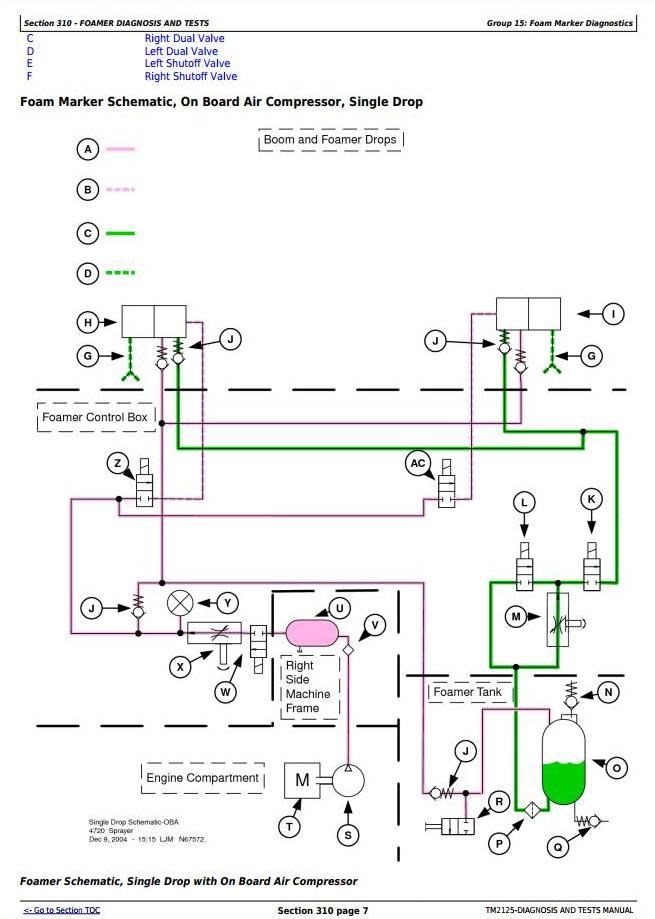

     Foam Marker (Dual Drop) Diagnostics

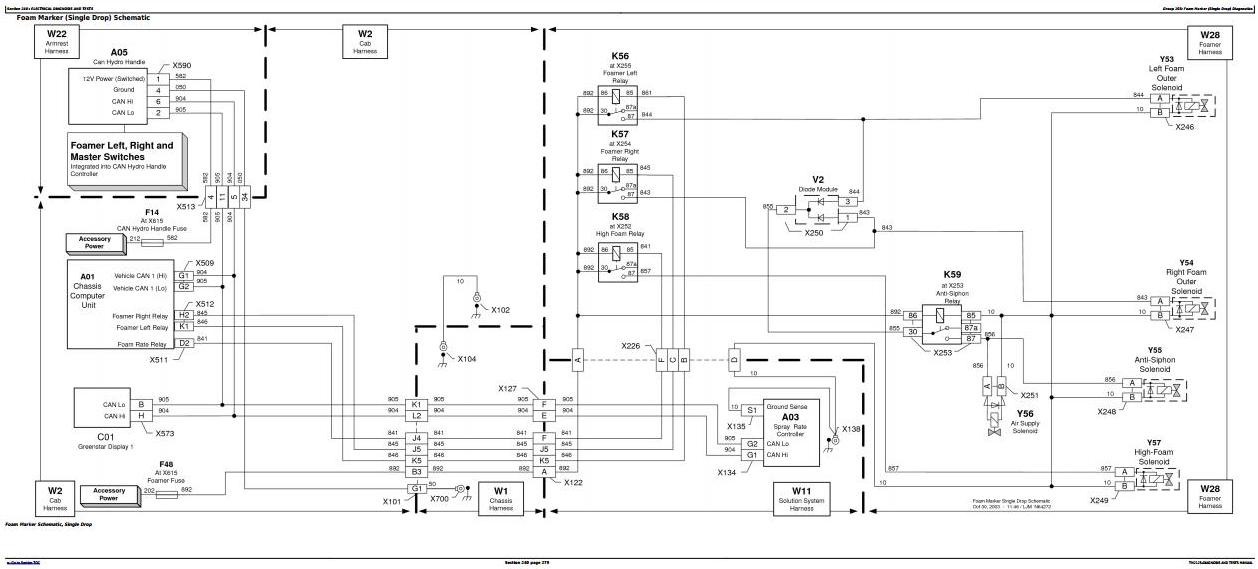

     Foam Marker (Single Drop) Diagnostics
     Fuel Level Sensor Diagnostics
     Tread Adjust Diagnostics
     Wheel Speed Sensor Diagnostics
     Wiper Diagnostics

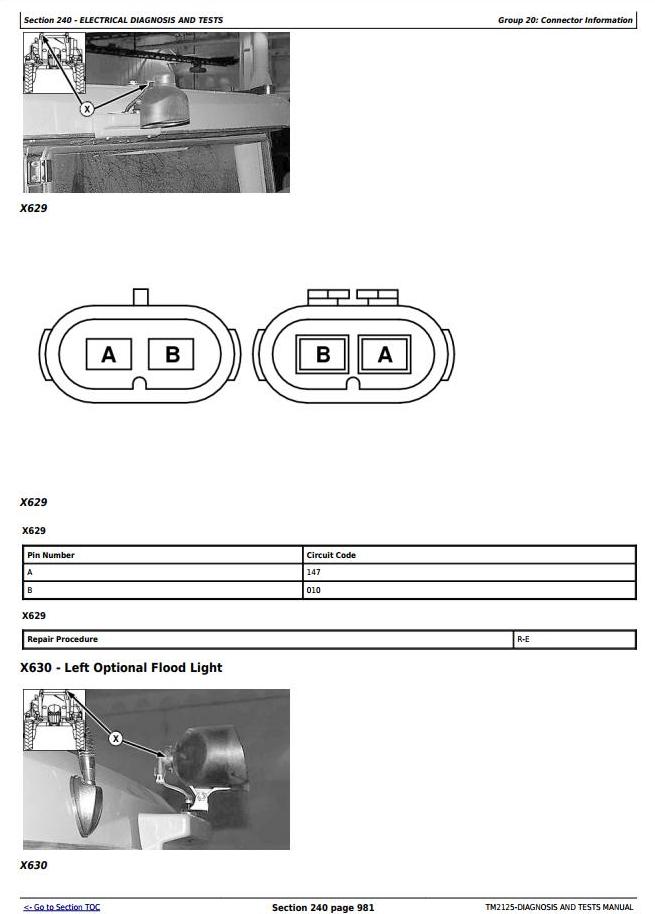

     Connector Information
  Power Train Diagnosis and Test
  Brake Systems Diagnosis and Test
  Hydraulic System Diagnosis and Test
  Tread Adjust System
  Steering System Diagnosis and Test
  Operator Station Diagnosis and Test
  Solution System Diagnosis and Test
  Foamer Diagnosis and Test
  Automatic Air Suspension Leveling System Diagnostics
  Service Tools
