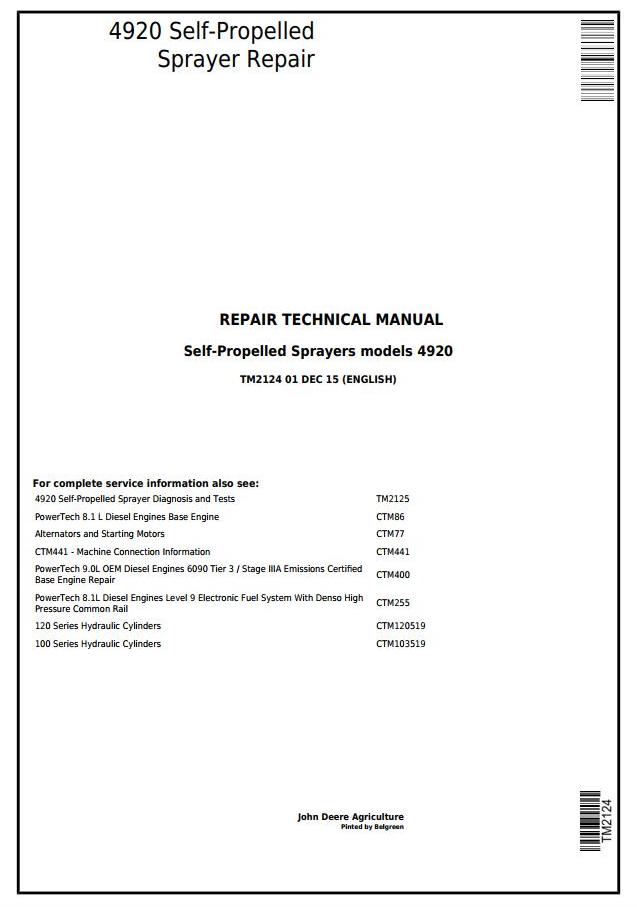

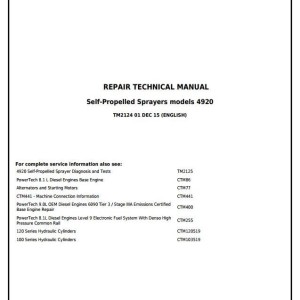

John Deere 4920 Self-Propelled Sprayer Repair Technical Manual TM2124

John Deere 4920 Self-Propelled Sprayer Repair Technical Manual TM2124
Language: English
Format: PDF
Document: Repair Technical Manual
Machine: Self-Propelled Sprayer
Machine Model: 4920
Pages: 802 Pages
Part Number: TM2124

Contents:
  Foreword
  General Information
     Safety
     General Information
     Fuel and Lubricants

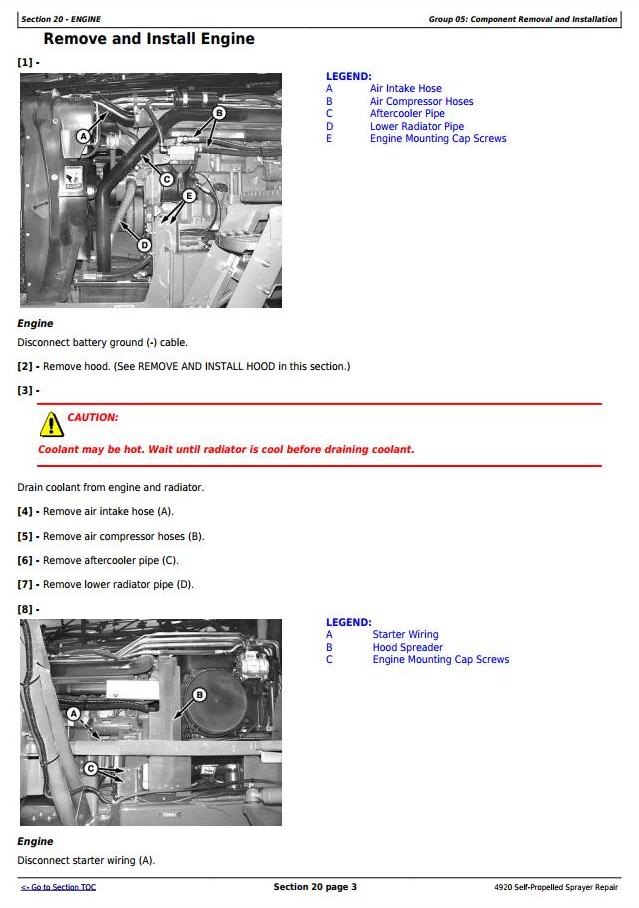

  Engine
     Component Removal and Installation
  Fuel, Air Intake, and Cooling Systems
     Diesel Fuel System
     Engine Cooling System
     Coolers and Air Conditioning Condenser
  Electrical
     Batteries
     Connector Repair
     Charging Circuit
     Starting Circuit
     Fuses and Relays
     Spray Rate Control System
     Chassis Control System
     Engine Control System
     Lighting
     Cab Components
     Wiring Harness Routing
     Boom Trac Pro™ System
  Power Train Repair
     Remove and Install Hydrostatic Components
     Hydrostatic Drive Repair

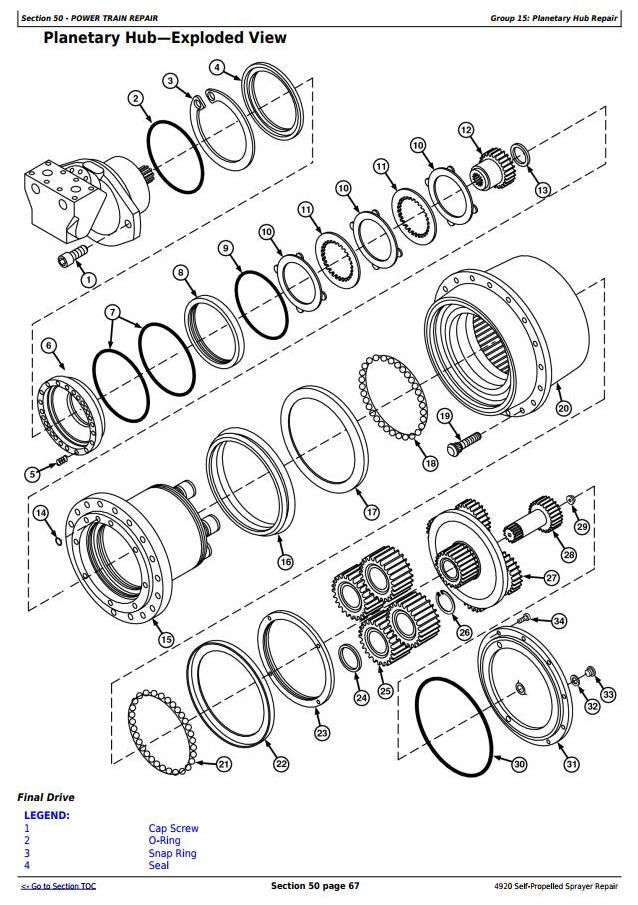

     Planetary Hub Repair
  Steering and Brakes
     Steering Column
     Steering Valve
     Steering Cylinder
     Brakes
     AutoTrac Steering System
  Suspension and Tread Adjust Repair
     Suspension
     Tread Adjust Valves
     Tread Adjust Cylinders
     Tread Adjust Shim Pads
  Hydraulic System
     Hydraulic Pump
     Hydraulic Valves
     Boom Hydraulic Cylinders
     Hydraulic Reservoir
     Accumulator
  Solution Spray System
     Nozzle Repair
     Solution Tank
     Solution Pump-Standard
     Solution Pump-High Flow

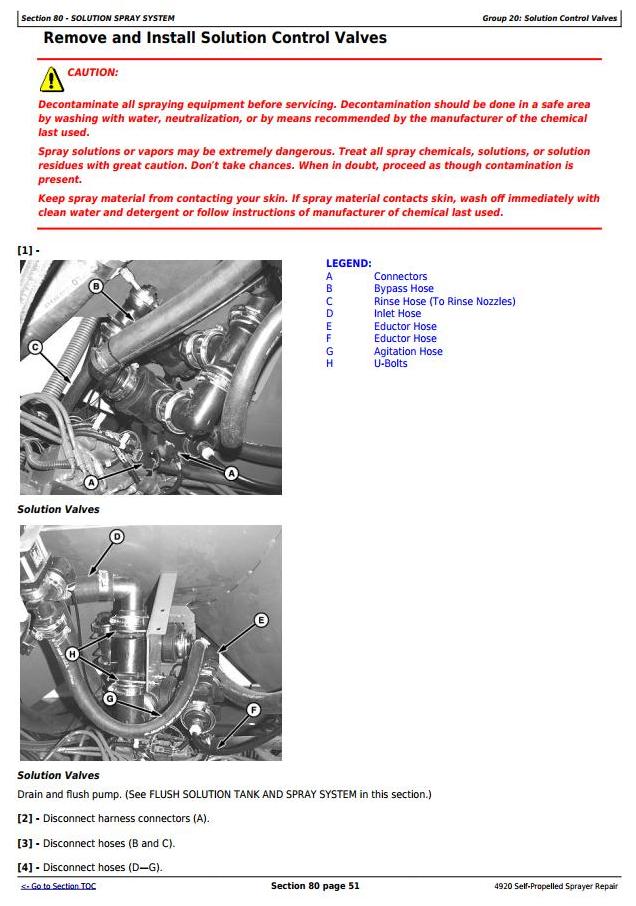

     Solution Control Valves
     Rinse Tank
     Eductor
  Foam Marker System
     Foam Marker System Repair
     On Board Air System
  Dry Box Conversion
     Liquid System
  Operator Station
     Component Removal and Installation
     Air Conditioning System
     Heating System
     Air Suspension Seat and Armrest
     Cab Door and Windshield
  Boom Repair
     Boom Repair
     Full Boom Breakaway
  Dealer Fabricated Tools
     Dealer Fabricated Tools
