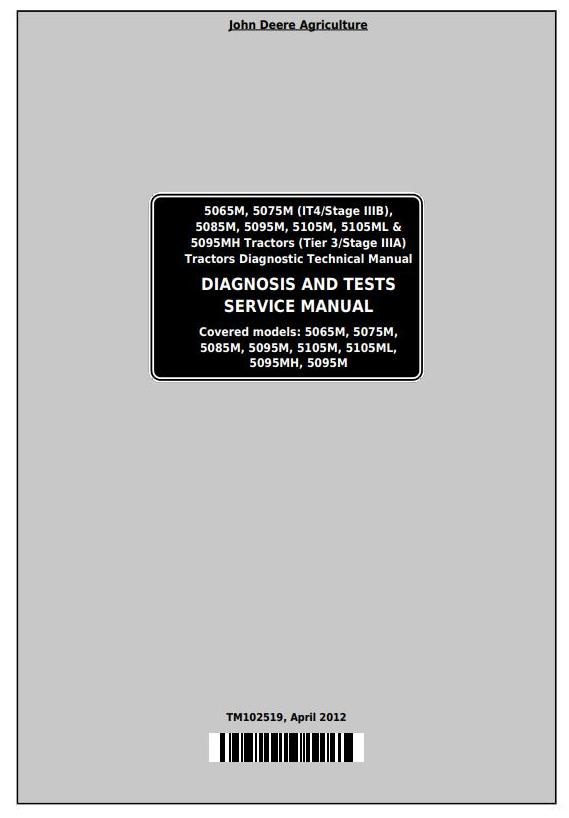

John Deere 5065M 5075M 5085M 5095M 5105M 5105ML 5095MH Tractor Diagnostic Service Manual TM102519

John Deere 5065M 5075M 5085M 5095M 5105M 5105ML 5095MH Tractor Diagnostic Service Manual TM102519
Language: English
Format: PDF
Document: Diagnostic Service Manual
Machine: Tractor
Machine Model: 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M, 5105ML
Pages: 2307 Pages
Part Number: TM102519

Contents:
Foreword
  General
     Safety
     General References
  Diagnostic Trouble Codes
     CCU Code Diagnostics
     ECU Code Diagnostics
     HCU Code Diagnostics
     ICC Code Diagnostics
     PTR Code Diagnostics
  Observable Symptoms
     Engine Symptoms
     Fuel and Air Symptoms
     Electrical Symptoms
     Control Unit Symptoms
     SyncShuttle Plus Transmission Symptoms
     SyncReverser Transmission Symptoms
     PowrReverser/PowrReverser Plus Transmission Symptoms
     Drive Systems Symptoms
     Steering and Brake Symptoms
     Hydraulic Symptoms
     Operator Station Symptoms
  System Diagnosis
     Engine System Diagnosis
     Fuel and Air System Diagnosis
     Electrical System Diagnosis
     Control Unit System Diagnosis
     SyncShuttle Plus Transmission System Diagnosis
     SyncReverser Transmission System Diagnosis
     PowrReverser/PowrReverser Plus Transmission System Diagnosis
     Drive Systems Diagnosis
     Steering and Brake System Diagnosis
     Hydraulic System Diagnosis
     Operator Station System Diagnosis
  Engines
     General Information
     Test Procedures and Adjustments
     Cooling System
     Engine Theory of Operation
  Fuel and Air
     General Information
     Fuel and Air Theory of Operation
  Electrical System
     General Electrical References
     Connector Information
     Harness Information
     SE01, SE02 - Power, Starting, PTM Fuel Injection
     SE03 - Accessory Power and SE04 - Horn
     SE05 - Light Switch, Headlights, and Signal Lights
     SE05A - Cab Work Lighting
     SE05B - Open Operator Station Work Lighting
     SE06 - Turn Signal Switch and Warning Lights
     SE07 - Light Switch, Headlights, Signal, License & Clearance Lights
     SE07A - Cab Work Lighting (with Work Light Switches)
     SE07B - Open Operator Station Work Lighting
     SE08 - Warning Light Switch and Turn Signal Lighting
     SE09, SE10, SE12 Junction Block Power, Trailer Connector, Loader Lights
     SE11 - Trailer Connector (with Implement Flood Light Connector)
     SE13, SE14, SE15 - Backup Alarm, Mid-Mount SCV, Power Outlets
     SE16 - Heating, SE17 - Air Conditioner, SE19 - Wipers
     SE20, SE21 - Wipers (Single Speed)
     SE22 - Dome Light, Radio, and SE23 - Air Seat
     SE24A, SE24B - Standard\Deluxe Instrument Cluster Control (ICC) Unit
     SE25 - Diff Lock, Seat, Rear PTO, Wheel Speed, Ground Drive PTO
     SE27, SE28 - Mechanical Front-Wheel Drive (MFWD), Brake Switch
     SE26 - EH System Relay, and SE29 - EH Control (EHC) Unit
     SE29A - Power Train Reverser (PTR) Control Unit Functions
     SE29B - Chassis Control Unit (CCU) Functions
     SE29C - Hitch Control Unit (HCU) Functions
     SE30, SE31 - 4045 and 5030 Engine Control Unit (ECU)
     SE32 - Controller Area Network Terminators/Service ADVISOR Connector
  Control Units
     General References
     CCU - Chassis Control Unit
     ECU - Engine Control Unit
     HCU - Hitch Control Unit
     ICC - Instrument Cluster Control
     PTR - Power Train Reverser
  Transmission
     Preliminary and Operational Checks
     Test and Adjustments
     Theory of Operation
  Drive Systems
     Preliminary and Operational Checks
     Test and Adjustments
     Theory of Operation
  Steering and Brakes
     Preliminary and Operational Checks
     Test and Adjustments
     Theory of Operation
  Hydraulics
     Preliminary and Operational Checks
     Test and Adjustments
     Theory of Operation
     Theory of Operation-Mono Block SCV Valves
     SCV Theory of Operation-Sectional Valves
  Operator Station
     Preliminary and Operational Checks
     Test and Adjustments
     Theory of Operation
  Service Tools and Installing Test Equipment
     Dealer Fabricated Tools
     Service Tools and Kits
     Transmission - Install Test Equipment
     Drive Systems - Install Test Equipment
     Steering and Brakes - Install Test Equipment
     Hydraulics - Install Test Equipment
     Operator Station - Install Test Equipment
