John Deere 540H 548H Cable Grapple Skidder Repair Technical Manual TM11810

John Deere 540H 548H Cable Grapple Skidder Repair Technical Manual TM11810
Language: English
Format: PDF
Document: Repair Technical Manual
Machine: Cable Grapple Skidder
Machine Machine Model: 540H, 548H (SN. from 630436)
Pages: 492 Pages
Part Number: TM11810

Contents:
  Foreword
  Technical Information Feedback Form
  General Information
     Safety
     Torque Values
  Wheels
     Powered Wheels and Fastenings
  Axles and Suspension Systems
     Removal and Installation
     Input Drive Shafts and U-Joints
     Hydraulic System
  Transmission
     Removal and Installation
     Controls
     Input Drive Shafts and U-Joints
     Gears, Shafts and Power Shift Clutches
     Hydraulic System
  Engine
     Removal and Installation
  Engine Auxiliary Systems
     Cold Weather Starting Aids
     Cooling System
     Intake System
     Exhaust System
     External Fuel Supply System
  Dampener Drive

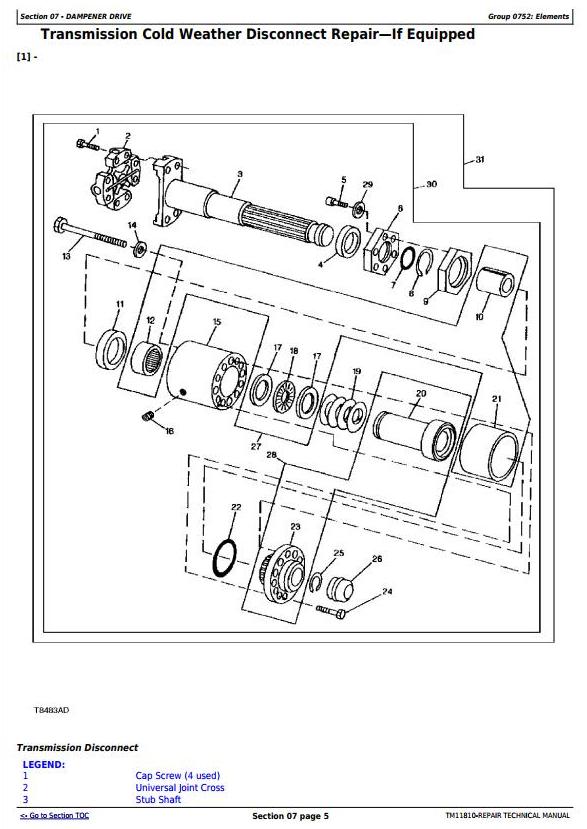

     Elements
  Steering Systems
     Secondary Steering
     Hydraulic System
     Dual Mode Steering
  Service Brakes
     Control Linkage
     Hydraulic System
  Park Brake
     Active Elements
     Hydraulic System
  Frame, Chassis, or Supporting Structures
     Frame Installation
     Frame Bottom Guards
  Operator's Station
     Removal and Installation
     Operator Enclosure
     Seat and Seat Belt
     Heating and Air Conditioning
  Sheet Metal and Styling
     Hood or Engine Enclosure
  Safety, Convenience and Miscellaneous
     Pressurized Water System
     Horn and Warning Devices
  Main Hydraulic System
     Hydraulic System
  Winch
     Removal and Installation

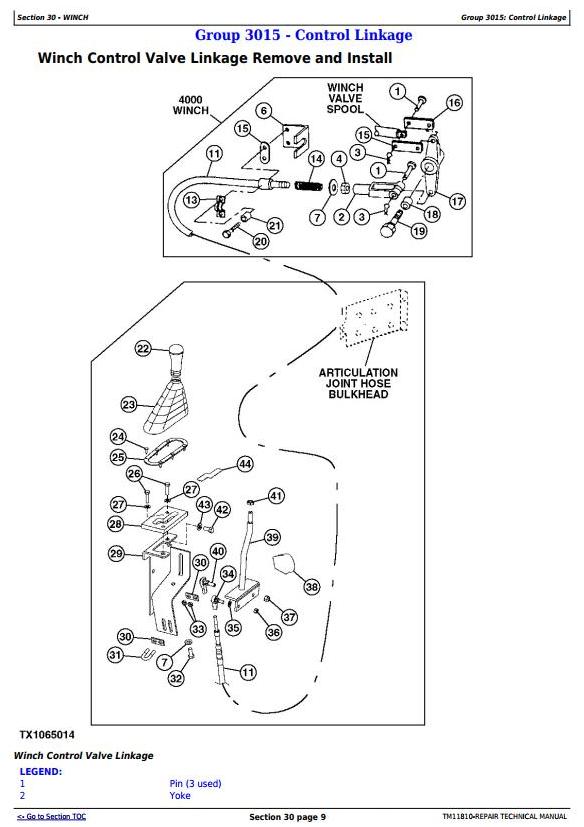

     Control Linkage
     Input Drive Shafts and U-Joints
     Drive and Clutch
  Stacking Blades
     Blades
     Control Linkage
     Hydraulic System
  Arch or Boom
     Frame

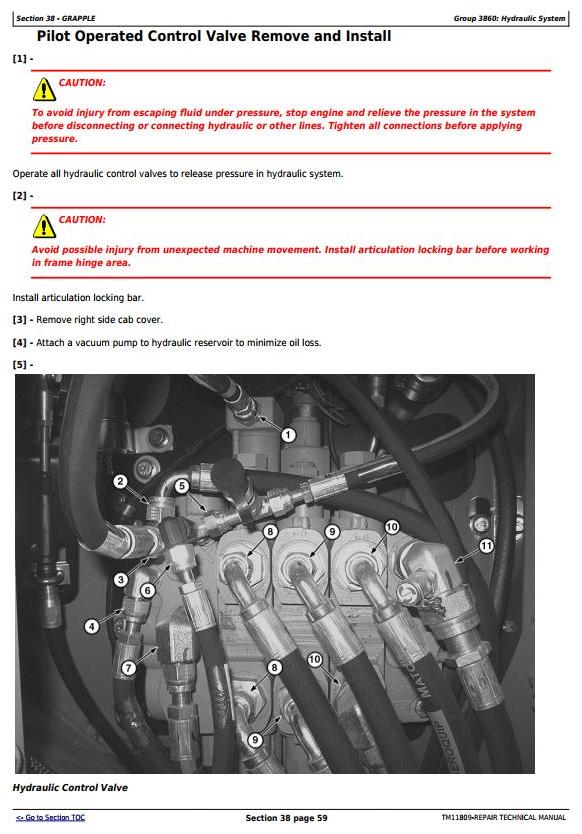

  Grapple
     Grapple Mechanism
     Control Linkage
     Frame
     Hydraulic System
  Dealer Fabricated Tools
     Dealer Fabricated Tools
