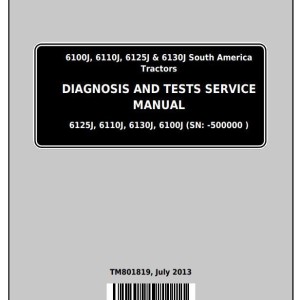

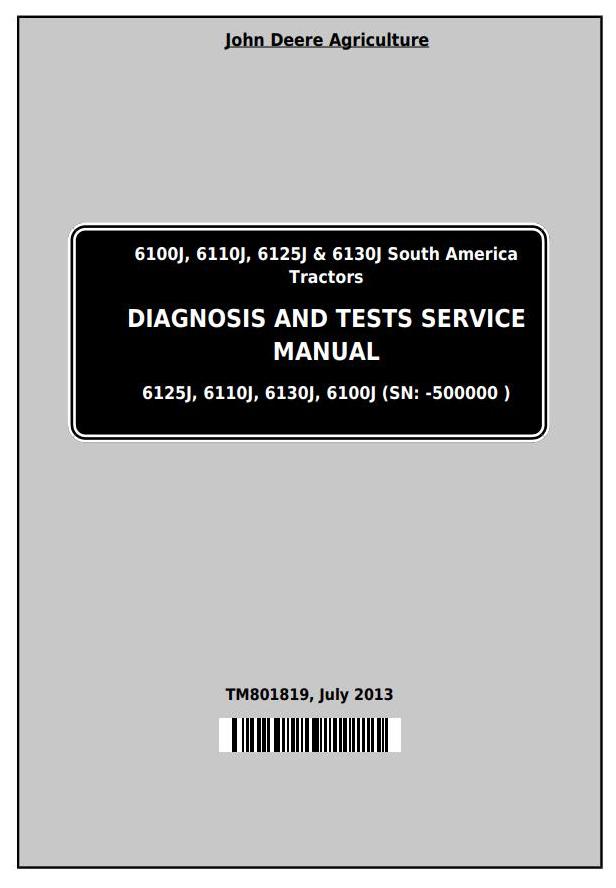

John Deere 6100J 6110J 6125J 6130J Tractor Diagnostic Test Service Manual TM801819

John Deere 6100J 6110J 6125J 6130J Tractor Diagnostic Test Service Manual TM801819
Language: English
Format: PDF
Document: Diagnostic Test Service Manual
Machine: Tractor
Machine Model: 6110J, 6125J, 6130J (South America)
Pages: 1640 Pages
Part Number: TM801819

Contents:
Foreword
  safety
     Safety Information
  General Information
     Safety Measures
     General References
  Diagnostic Trouble Codes
     BCU Diagnostic Trouble Codes
  Observable Symptoms
     Electrical System
     SyncroPlus™ Transmission
     PowrQuad™ Transmissions
     Drive Systems
     Steering and Brakes
     Hydraulic System
     Operator's Cab
  System Diagnosis
     Electronic Components
  Engine
     Operational Checks
     Test and Adjustments
  Fuel System, Air Intake and Cooling
     Test and Adjustments
     Theory of Operation
  Electrical System - Cab Tractor
     How To Use Diagnostic Information
     Fuse Box
     Starting and Charging Circuit
     Panel Warning Lights
     Lights and Tail Lights
     Work Lights
     Radio, Dome Light, Console Light and Beacon Light
     Horn and Accessory Connector
     Accessory Socket without AutoTrac™ Universal
     Accessory Socket with AutoTrac™ Universal
     Fan and A/C
     Reverse Light and Backup Alarm
     Front Windshield Wiper and Washer
     Rear Windshield Wiper and Washer
     Trailer Connector
     BCU - Turn Signal and Hazard Warning Lights
     BCU - Electronic Hitch Control
     BCU - Brakes
     BCU - Service Connector
     BCU - PTO
     BCU - Engine Speed Sensor
     BCU - Front-Wheel Drive
     BCU - Differential Lock
     GreenStar™ and AutoTrac™ Universal
     Component Test

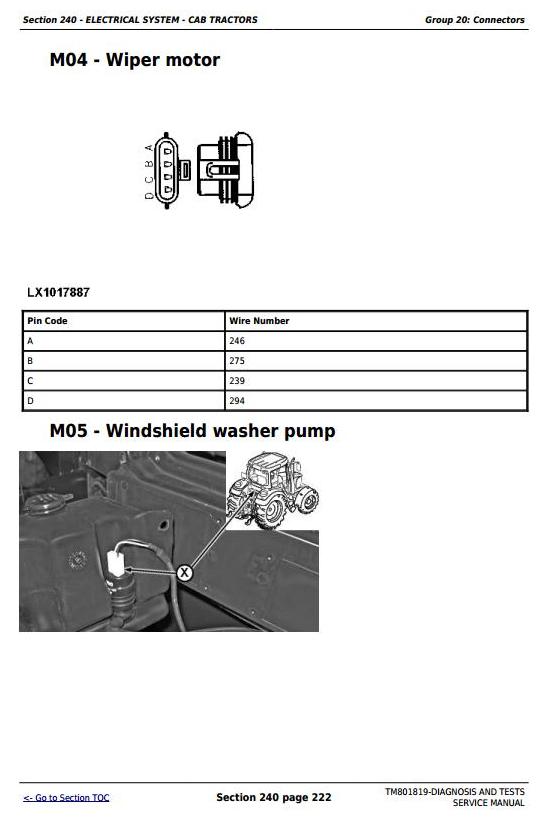

     Connectors
  Electrical System - Open Operator's Station
     How To Use Diagnostic Information
     Fuse Box
     Starting and Charging Circuit
     Panel Warning Lights
     Lights and Tail Lights
     Work Lights
     Horn
     Reverse Light and Backup Alarm
     Trailer Connector
     BCU - Turn Signal and Hazard Warning Lights
     BCU - Electronic Hitch Control
     BCU - Brakes
     BCU - Service Connector
     BCU - PTO
     BCU - Engine Speed Sensor
     BCU - Front-Wheel Drive
     BCU - Differential Lock
     Component Test
     Connectors
  Electronic Control Units
     Operation and General Information on Diagnostics
     Data BUS Systems, Operation
     BCU - Basic Control Unit
  SyncroPlus™ Transmission
     Preliminary Checks
     Operational Check
     Test and Adjustments

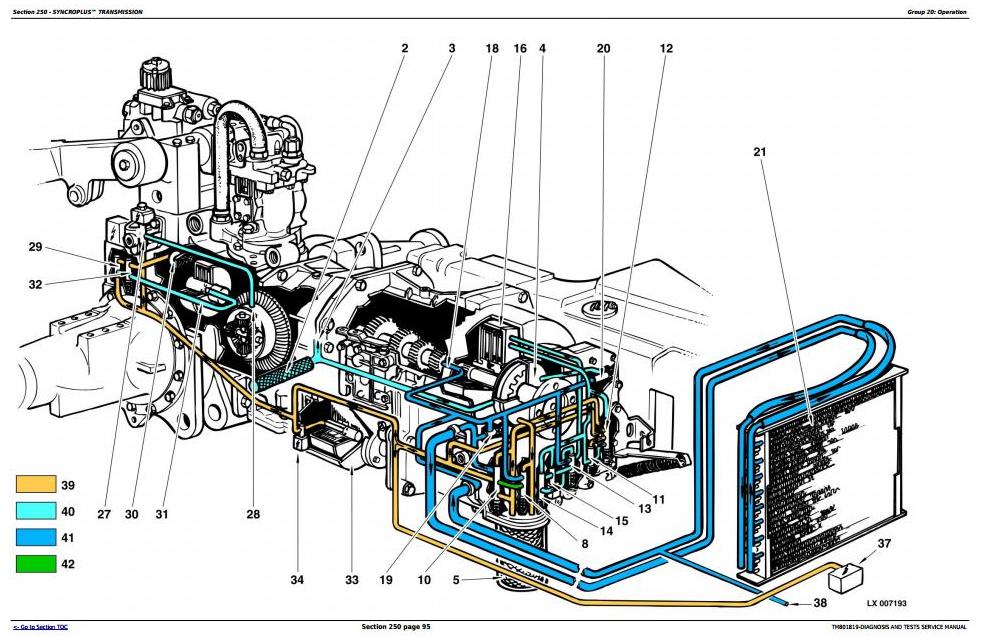

     Operation
     Range Box
  PowrQuad™ Transmissions
     Operational Check
     Test and Adjustments
     Operation
     Range Box
  Drive Systems
     Operational Check
     Test and Adjustments
     Operation
  Steering and Brakes
     Preliminary Checks
     Operational Check
     Test and Adjustments
     Operation
  PC hydraulic system
     General Information
     Operational and Preliminary Checks
     Operation
     Schematic

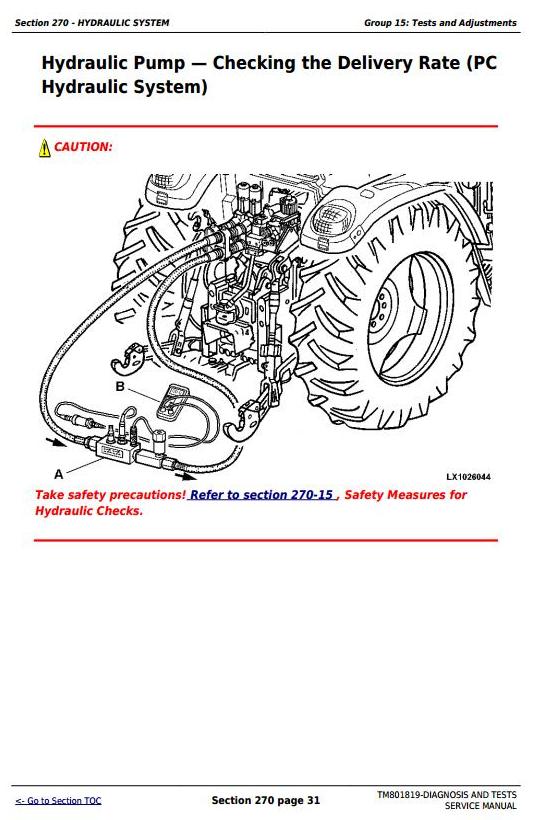

     Test for Diagnostics and Adjustments
  PFC Hydraulic System
     General Information
     Operational and Preliminary Checks
     Theory of Operation
     Schematic
     Test for Diagnostics and Adjustments
  Operator's Cab
     Test and Adjustments
     Operation
  Special Tools (Dealer-Fabricated)
     Special Tools (Dealer-Fabricated)
