John Deere 7200R 7215R 7230R 7260R 7280R Tractor Repair Technical Manual TM110119

John Deere 7200R 7215R 7230R 7260R 7280R Tractor Repair Technical Manual TM110119
Language: English

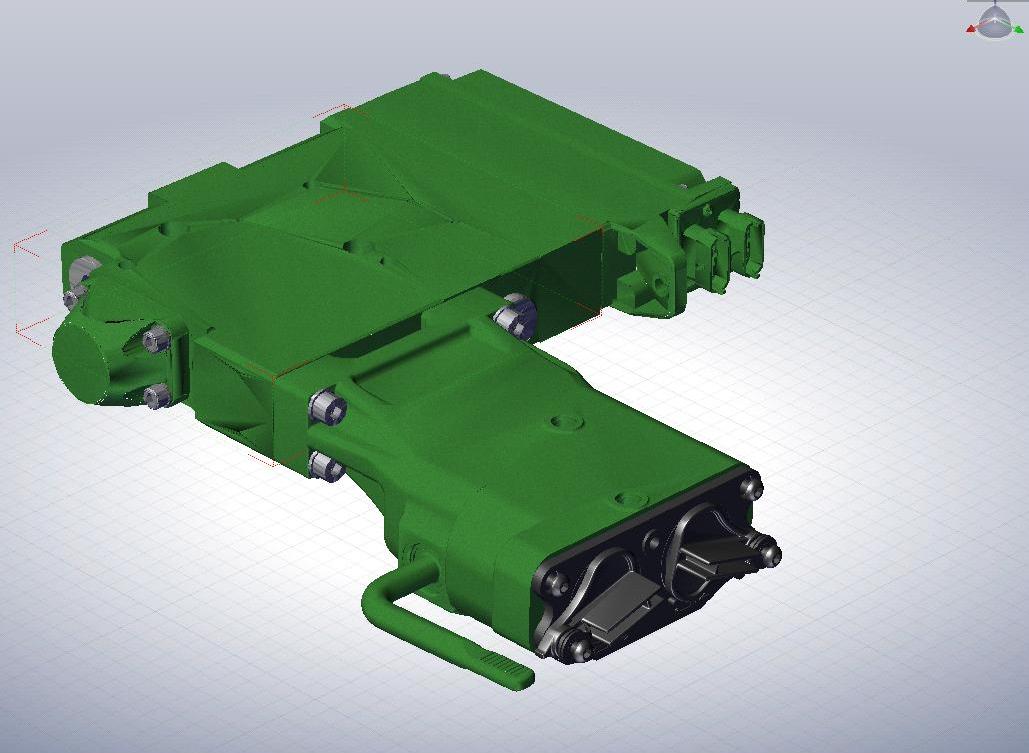

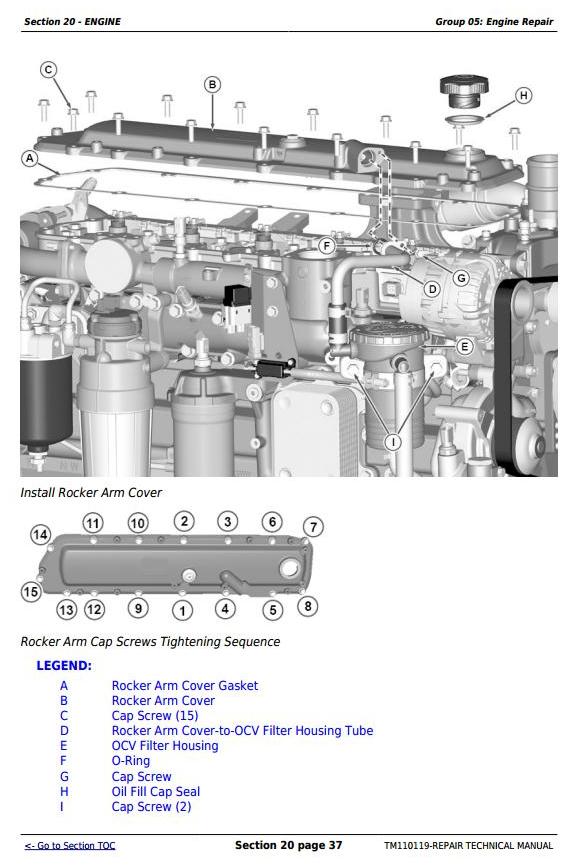

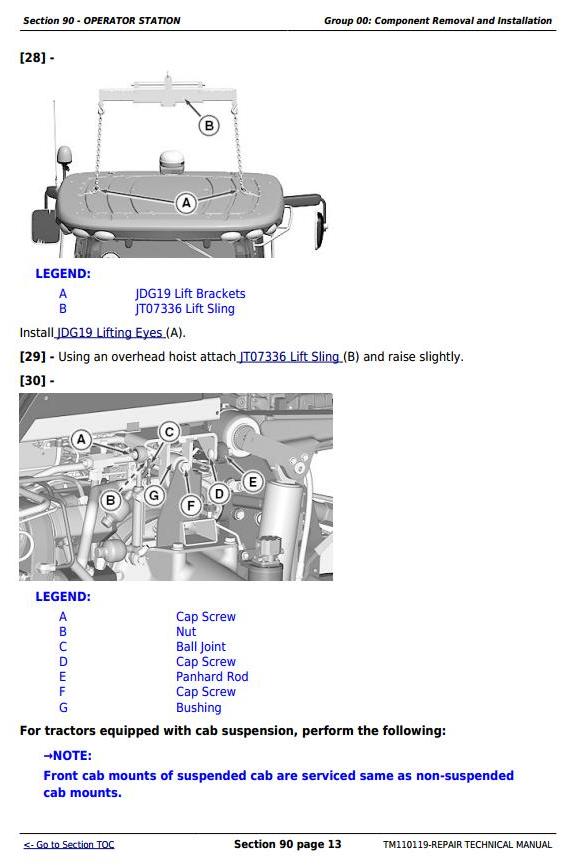

Format: ZIP, contained: PDF Manual, 2680 Pages, `VIDEO` folder. To view 3D animation you need to unpack PDF files and `VIDEO` folder in same folder on your harddrive. Also you need installed CATIA Composer Player, link to installer is included into PDF.
Document: Repair Technical Manual
Machine: Tractor
Machine Model: 7200R, 7215R, 7230R, 7260R, 7280R (SN: 000101-080000)
Part Number: TM110119

Contents:
Foreword
  Dealer Predelivery Information Form
  General Information
     Safety
     General Information
  Engine
     Component Removal and Installation
     Engine Repair
  Fuel and Cooling Systems
     Diesel Fuel System
     Air Intake System
     Auxiliary Drive System
     Radiator and Coolers
     Exhaust System
  Electrical
     Connectors
     Wiring Harness Routings
     Charging Circuit
     Starting Circuit
     Relays, Fuses, Solenoids, and Switches
     Monitoring System
     Armrest Control
     Implement and Accessory Connectors
     Convenience and Accessory Components
  AutoQuad/CommandQuad Transmission
     Component Removal and Installation
     Transmission Shifting Mechanisms
     PowrQuad-Plus™ Module
     Range Box (PowrQuad™ and AutoQuad™)
     Range Box (CommandQuad™)
  AutoPowr/IVT Transmission
     Component Removal and Installation
     General Repair Procedures
     Transmission Repair
     Assemble Transmission
  Drive Systems
     Component Removal and Installation
     Rear Differential
     Final Drive
     Rear PTO
     Front PTO
     Primary Brakes
     Pump Drive Housing
  1100 Series MFWD Axle
     Component Removal And Installation
     Final Drives
     Axle Housing
     Differential
  1300 Series MFWD Axle
     Component Removal And Installation
     Final Drives
     Axle Housing
     Differential
  Suspended MFWD Axle
     Component Removal And Installation
     Final Drives
     Axle Housing
     Differential
     Suspension Components
  Steering and Brakes
     Steering Column
     Steering Control Assembly
     Steering Cylinders
     Service Brakes
     Hydraulic Trailer Brake
     Air Trailer Brake
  Hydraulics
     Component Removal and Installation
     General Repair Procedures
     Integrated Hydraulic Pump
     Hitch Valve, Selective Control Valves and Couplers
     Rear Hitch
     Front Hitch
  Miscellaneous
     Hood
     Front Axle (Two-Wheel Drive)
     Rear Wheels
     Wagon And Pick-Up Hitch
  Operator Station
     Component Removal and Installation
     Heating, Ventilating, and Air Conditioning (HVAC)
     Air Conditioning System
     Air Suspension Seat
     ComfortCommand™ Seat
     ActiveSeat™
     Armrest
     Cab Door and Windshield
     Cab Suspension
  Dealer Tools
     Dealer Fabricated Tools
     Essential And Recommended Tools
