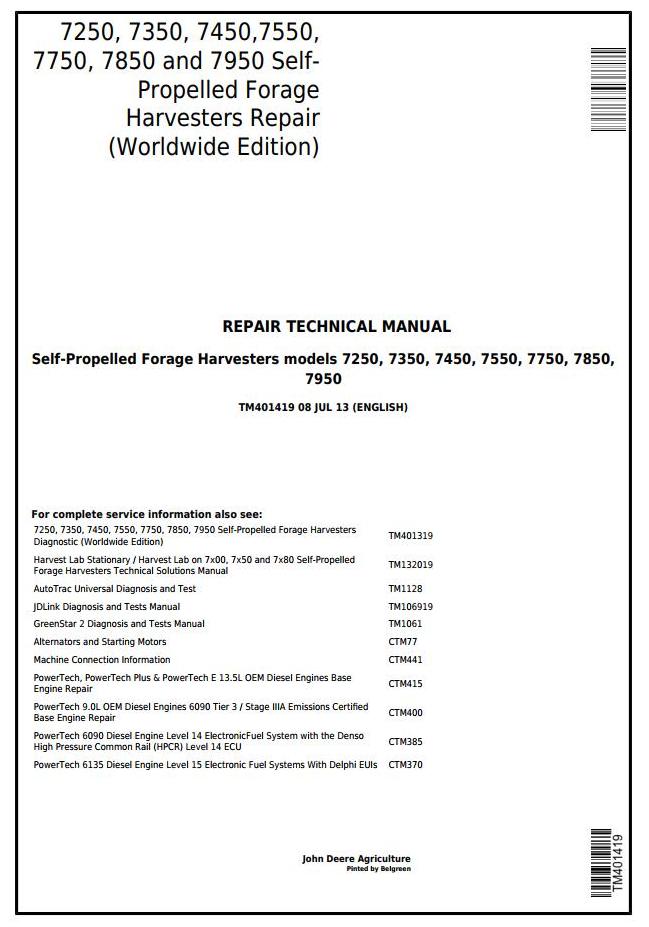

John Deere 7250 to 7950 Self-Propelled Forage Harvester Repair Manual TM401419

John Deere 7250 to 7950 Self-Propelled Forage Harvester Repair Manual TM401419
Language: English
Format: PDF
Document: Repair Manual
Machine: Self-Propelled Forage Harvester
Machine Model: 7250, 7350, 7450, 7550, 7750, 7850, 7950 Worldwide Edition
Pages: 1970 Pages
Part Number: TM401419

Contents:
  Foreword
  Version Date
  Safety
     Safety Information
  General Information

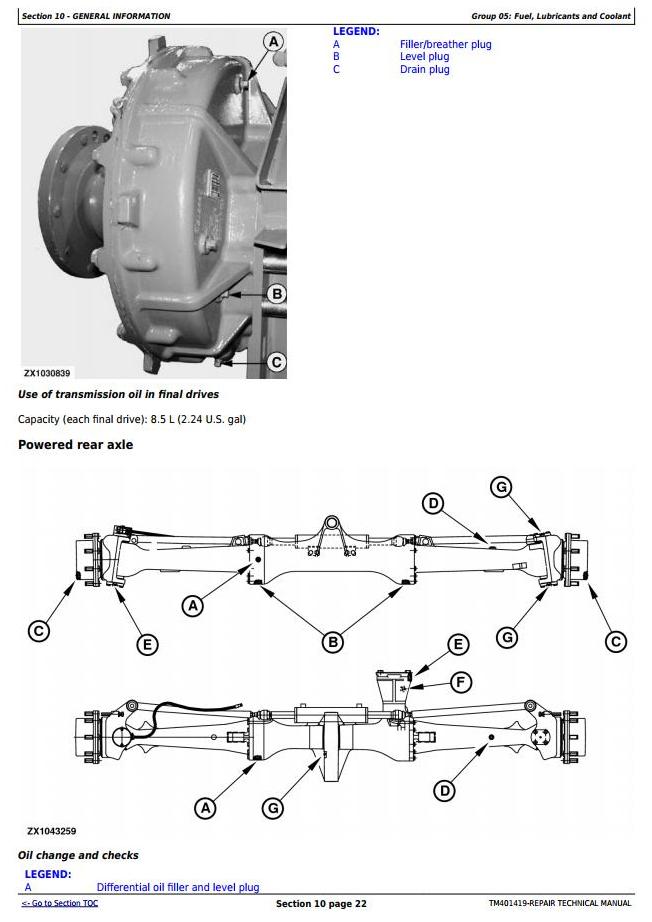

     Fuel, Lubricants and Coolant
     Torque Values
     Serial Numbers
     Dimensions
  Engine
     Remove and Install Engine
  Fuel, Air Intake and Cooling Systems
     Fuel Tank
     Air Intake System
     Cooling System
  Electrical System
     Harness and Connector Repair
     Electrical System Components
  Power Train
     Main Drive Belt Replacement
     Bevel Gear Drive
     Transmission and Differential (Three-Speed Transmission)

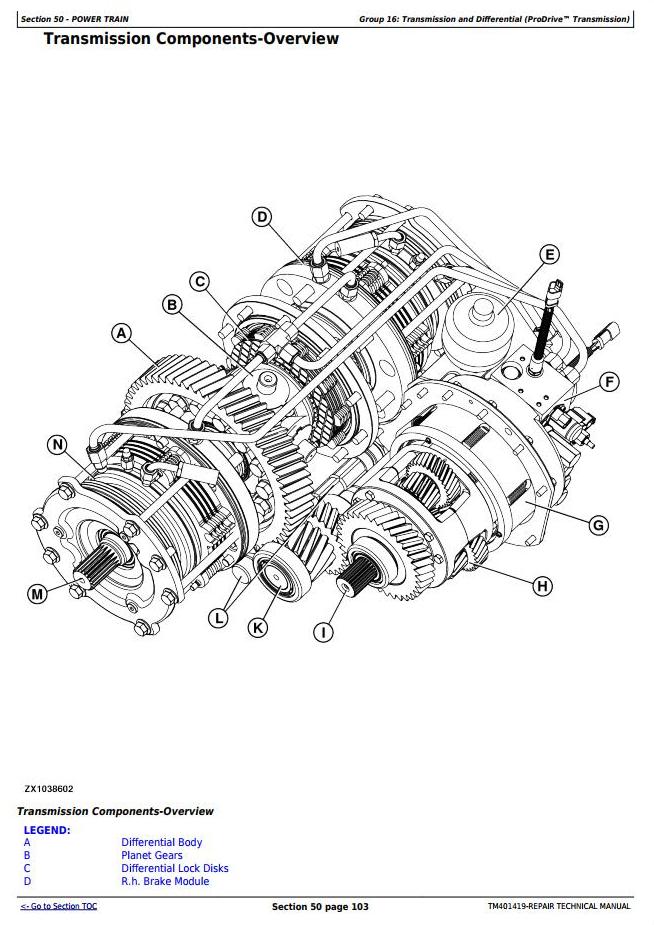

     Transmission and Differential (ProDrive™ Transmission)
     Final Drives
     Hydrostatic Drive, Variable Pump (Three-Speed Transmission)
     Hydrostatic Drive, Variable Pump (ProDrive™ Transmission)
     Hydrostatic Drive, Fixed Displacement Motor (3-Speed Transm.)
     Hydrostatic Drive, Variable Displacement Motor (ProDrive™)
     Rear-Wheel Drive Axle
     Rear-Wheel Drive Axle, Variable Displacement Motor
  Brakes, Steering and Rear Axle
     Brake Operation (Three-Speed Transmission)
     Brake Operation (ProDrive™ Transmission)
     Brakes (Three-Speed Transmission)
     Brakes (ProDrive™ Transmission)

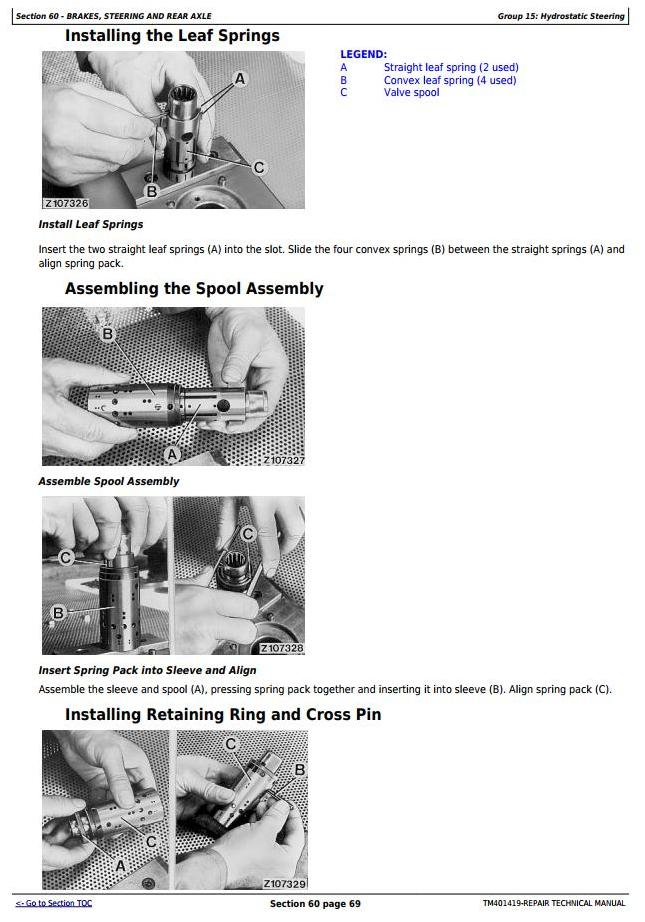

     Hydrostatic Steering
     Row Guidance System
     Rear Axle
  Hydraulic System
     Hydraulic Pressure Accumulators
     Hydraulic Pumps
     Electromagnetic Control Valve
     Reverser Motor (Four-Speed LOC)
     Hydraulic Motor - Discharge Spout
     Hydraulic Motor - Rotary Screen
     IVLOC Transmission Motor
     IVLOC Transmission Hydrostatic Pump
  Miscellaneous
     Central Lubrication System
  Operator`s Cab, Air-Conditioning System
     Control Levers
     Cab Ventilation
     Operator`s Cab
     R134a Air-Conditioning System
     Super Comfort Seat
  Special Tools
     Special Tools (Dealer Fabricated)
     Special Tools (Available as Spare Parts)
  Harvesting Units
     Harvesting Unit Cross Drive
     Harvesting Units
  Feeding System
     Four-Speed Length-Of-Cut Transmission
     IVLOC Transmission
     Reverser Motor and Clutch (4-Speed LOC Transmission)
     Electric Clutch (4-Speed LOC Transmission)
     Feed Roll Housing
     Feed Roll Assembly
     Locking Pawl (4-Speed LOC Transmission)
  Cutterhead Assembly
     Knife Sharpening Device
     Cutterhead
     Bottom and Outlet Bands
     Stationary Knife Removal and Installation
     Kernel Processor
     Power Chute
  Discharge Components
     Discharge Fan
     Blower Rotor and Rotor Bearings
     Discharge Spout
