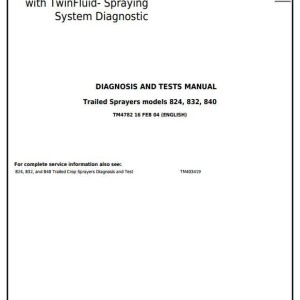

John Deere 824 832 840 Trailed Sprayer Diagnosis Test Manual TM4782

John Deere 824 832 840 Trailed Sprayer Diagnosis Test Manual TM4782
Language: English
Format: PDF
Document: Diagnosis Test Manual
Machine: Trailed Sprayer
Machine Model: 824, 832, 840 with ELC-1/EHC-2 Control Unit / with EL-4 Control Unit / with TwinFluid Spraying System
Pages: 674 Pages
Part Number: TM4782

Contents:
  Foreword
  Safety
     Safety Information
  General Information
     Description of the Machine
     Torques for Hardware
     Specifications
  Electrical System
     Connector Repair
     Electrical Control
     Troubleshooting (General)
     Troubleshooting – EL4 Control Unit
     Troubleshooting – ELC-1/EHC-2 Control Units
     GreenStar™ Programming and Info
     GreenStar™ Caution and Warning Statements
  Power Train
     Compressor
     Gearbox
  Brake System
     Hydraulic Brake System
     Pneumatic Brake System
  Hydraulic System
     Hydraulic Functions
     Hydraulic Cylinders
     Control Valves
     Accumulator
     Sensors
     Adjustments
     Hydraulic Diagrams
  Miscellaneous
     Welding and Repair
     Function Diagrams
     Sprayboom
     Sprayboom Adjustments
     Center Frame
     Track Width Adjustment
     Axle
     Drawbar Adjustments
     Drawbar
     Parallelogram
  Tank and Accessories
     Spraying Liquid Tank
     Rinse Tank
  Pump
     Pump
  Lines and Valves
     Sprayline
  Activation Systems
     Sensors
     Boom Tilt Cylinder
     Ball Valves
     Regulating Unit
     Air Pressure Regulating Unit
  Spray Nozzles
     Spray Nozzles
  VRS
     Distributor Tube
