John Deere 824 832 840 Trailed Sprayer Diagnostic Test Manual TM403419

John Deere 824 832 840 Trailed Sprayer Diagnostic Test Manual TM403419
Language: English
Format: PDF
Document: Diagnostic Test Manual
Machine: Trailed Sprayer
Machine Model: 824, 832, 840
Pages: 297 Pages
Part Number: TM403419

Contents:
  Foreword
  General Information
     Safety
  Electrical Diagnosis and Test - 800se
     Power Supply EL4
     EL4 + EHS1 Connection 800SE
     EL4+EHB1 Connection 800SE
     EL4+EHS1 Connection 800SE V2
     EL4+EHB1 Connection 800SE V2
     LS for ELB1/EL4/EHC2 V1
     Power Supply 3 pole Cobo connector
     EL4 Connection V3 800SE
     Update to B-motor
  Electrical Diagnosis and Test - 800i
     Power Supply 3 Pole Cobo Connector
     PCB Connection CAN box V3

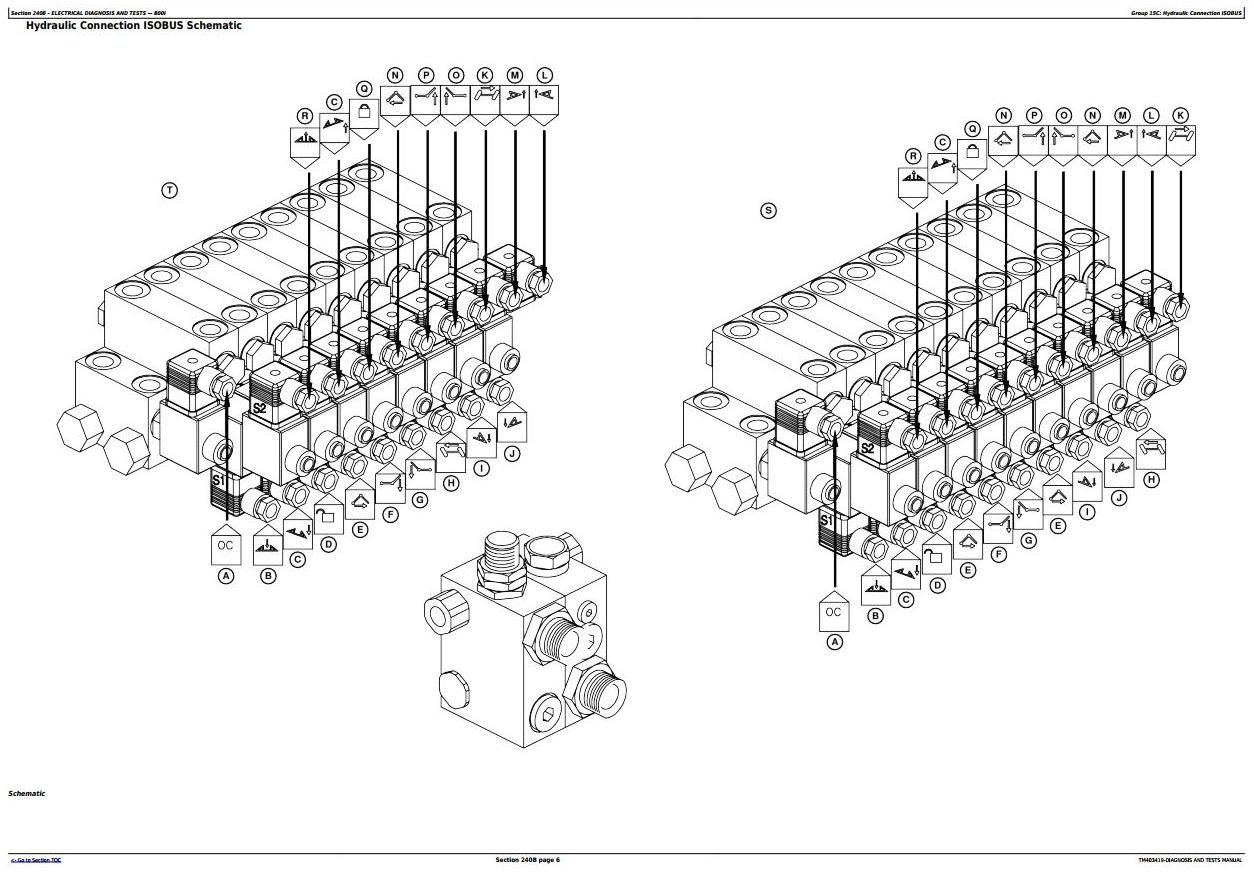

     Hydraulic Connection ISOBUS
     Fuses
     Electric Fusing Plan ISOBUS
     Warning Screen Codes
     Wiring Harness
  Electrical Diagnosis and Test - 800
     Universal CAN Box Connector
     Power Supply EL4
     ELC1+EHC2 Connection
     Universal CAN Box Connector V2

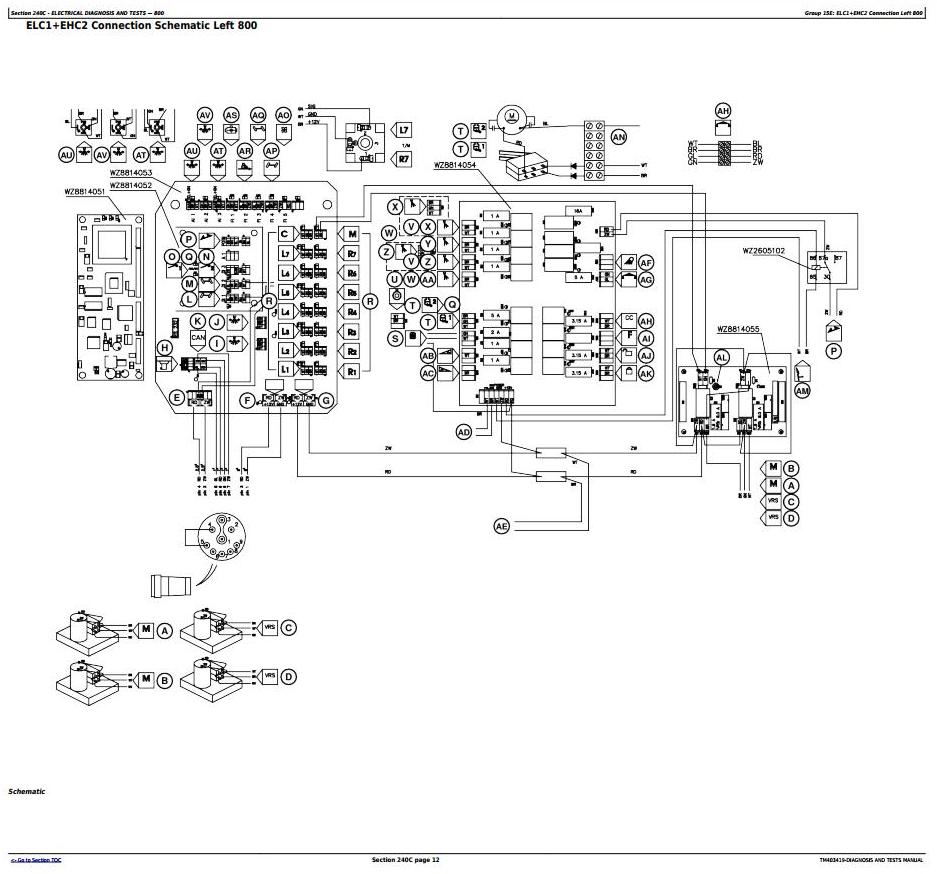

     ELC1+EHC2 Connection Left 800
     ELC1+EHC2 Connection Right 800
     EL4+Tilt Connection 800
     EL4+Tilt Preselect+Edge Nozzle Connector 800
     Drawbars Sensor Connection 800
     Lightning Connection 800
     T-split cable CAN connection
     ELC1+EHC2 Connection 800
     EL4 Electrical Connection 800
     EL4+EHS1 Connection 800
     EHC2 Connection Right 800
     EHC2 Connection Left 800
     EL4+EHB2 Connection 800
     Droplethose Bracket Connection
     Universal CAN Box Connection V3
     PCB Connection CAN Box V2
     Modification of Drawbar Sensors on EHC2 Hydraulic
     Modification of PCB Security on EHC2
     Modification of Drawbar Sensors on EHB2

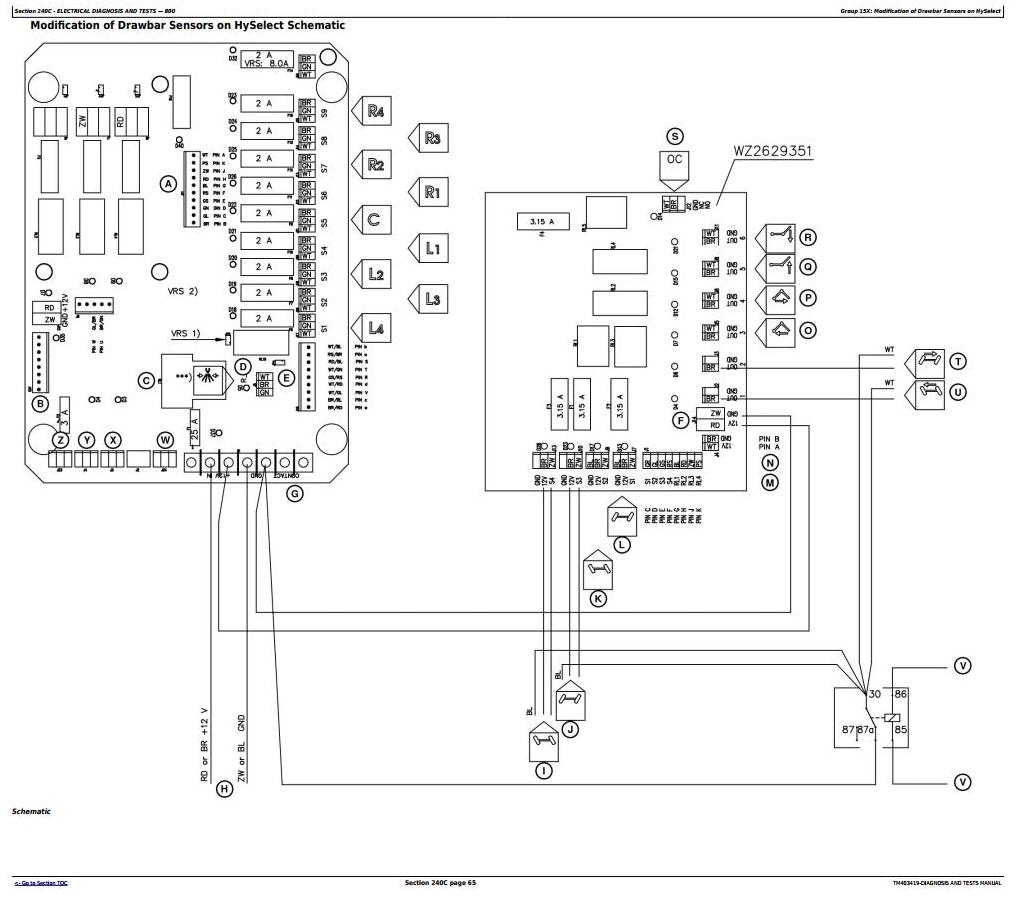

     Modification of Drawbar Sensors on HySelect
     Modification of Drawbar Sensors on EHC2 Electrical
     EL4 Electrical Connection 800 V2
     EL4+EHS1 Connection 800 V2
     EL4+EHB2 Connection 800 V2
     LS For ELB1/EL4/EHC2 V1
     LS For EL4+EHC2 V1
     Power Supply 3 Pole Cobo Connector
     PCB Connection CAN Box V3
     EHC2 Connection Left 800 V2
     BoomTrac Connection
     LS For GSD4+EHC2 V2.01
     EL4 connection 800 V3
     EL4 + Off Centre Nozzle Valves Connection 800
     Update to B-motor
     EL4 + Tankmatic Connection V2
     Wiring Harness
  Hydraulic Diagnostics - 800
     SCV Lift/Symmetric Folding
     SCV Lift/Asymmetric Folding
     Electrohydraulic Lift/Symmetric Folding/Steering Drawbar
     Electrohydraulic Lift/Assymmetric folding
     Electrohydraulic Lift/Assymmetric Folding/Steering Drawbar
     EH Lift/Symmetric Folding/Steering Drawbar/Variable Geometry
     EH Lift/Asymmetric Folding/Steering Drawbar/Variable Geometry
     HySelect Symmetric Folding/Steering Drawbar
     HySelect Symmetric Folding
     EHB2/EHC2 3 Part Folding Boom Tfi
     EHS1 3 Part Folding Boom Tfi
     EHB2/EHC2 2 Part Folding Boom No Variable Geometry
     EHB2/EHC2 2 Part Folding Boom Variable Geometry
     SCV Lift/Balance/Symmetric Folding
     EHB2/EHC2 2 Part Folding Boom Tfi
     Stand Alone Hydraulics 800
     LS on EHB2/EHC2
     Brakes 800
  Hydraulic Diagnostics - 800SE
     EHS1 800SE Hydraulics
     EHB1 800SE Hydraulics
     Stand Alone Hydraulics 800SE
     Lift Balance Sequence Hydraulics 800SE
     LS on EHB1, EHB2, EHC2 Hydraulics
  Hydraulic Diagnostics - 800i
     EHC2 3 Part Folding Boom Tfi Hydraulic
     EHC2 2 Part Folding Boom Tfi Hydraulic
     Stand Alone Hydraulic 800i
     LS on EHC2 Hydraulic
     Brake Hydraulics 800i
     Plan Auto Dilute Hydraulics
