John Deere 848H Grapple Skidder Repair Technical Manual TM11814

John Deere 848H Grapple Skidder Repair Technical Manual TM11814
Size: 19.3 MB
Language: English
Format: PDF
Document: Repair Technical Manual
Machine: Grapple Skidder
Machine Model: 848H (SN.630436-)
Pages: 477 Pages
Part Number: TM11814

Contents:
  Foreword
  Technical Information Feedback Form
  General Information
     Safety
     Torque Values
  Wheels
     Powered Wheels and Fastenings
  Axle
     Removal and Installation
     Input Drive Shafts and U-Joints
     Hydraulic System
  Transmission
     Removal and Installation
     Controls
     Input Drive Shafts and U-Joints
     Gears, Shafts and Power Shift Clutches
     Hydraulic System
  Engine
     Removal and Installation
  Engine Auxiliary Systems
     Cold Weather Starting Aids
     Cooling Systems
     Intake System
     Exhaust System
     External Fuel Supply
  Torque Converter
     Remove and Install
     Torque Converter Housing
  Steering System
     Secondary Steering
     Hydraulic System
     Dual Mode Steering
  Service Brakes
     Controls Linkage
     Hydraulic System
  Park Brake
     Active Elements
     Hydraulic System
  Frame, Chassis, or Supporting Structures
     Frame Installation
     Frame Bottom Guards
  Operator's Station
     Removal and Installation
     Operator Enclosure
     Seat and Seat Belt

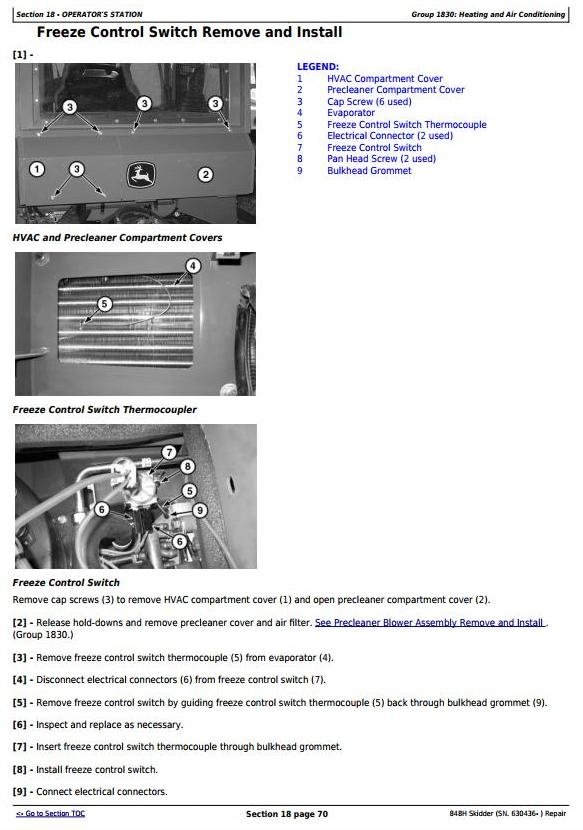

     Heating and Air Conditioning
  Sheet Metal and Styling
     Hood or Engine Enclosure
  Safety, Convenience, and Miscellaneous
     Pressurized Water System
     Horn and Warning Devices
  Main Hydraulic System
     Hydraulic System
  Winch
     Removal and Installation

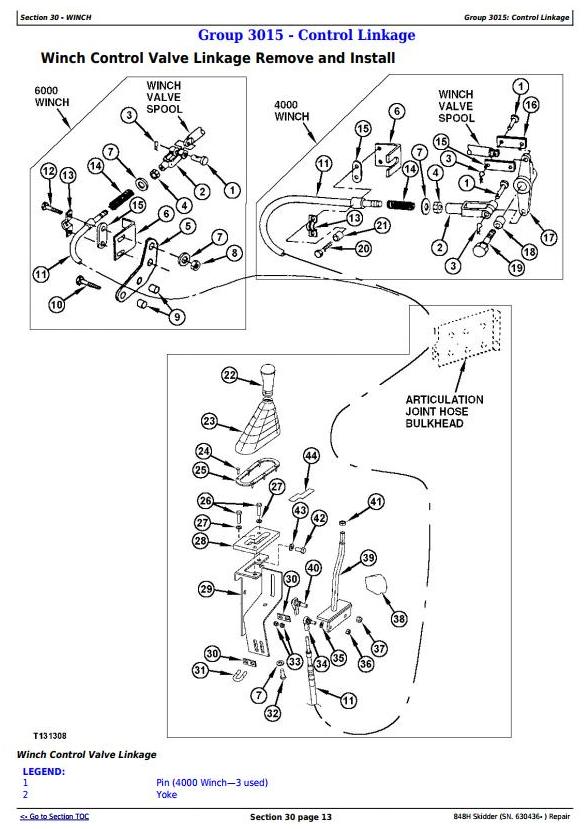

     Control Linkage
     Input Drive Shafts and U-Joints
     Drive and Clutch
  Stacking Blades
     Blades
     Controls Linkage
     Hydraulic System
  Grapple
     Grapple Mechanism
     Frame
     Hydraulic System
  Dealer Fabricated Tools
     Dealer Fabricated Tools
