John Deere 903M 953M 959M Tracked Feller Buncher Repair Manual TM14264X19
Language: English
Format: PDF
Document: Repair Manual
Machine: Tracked Feller Buncher
Machine Model: 903M (PIN: 1T0903MX_ _C317982—; PIN: 1T0903MX_ _D317982—), 953M (PIN: 1T0953MX_ _C317982—; PIN: 1T0953MX_ _D317982—), 959M (PIN: 1T0959MX_ _C317982—; PIN: 1T0959MX_ _D317982—)
Pages: 308 Pages
Part Number: TM14264X19
Contents:
Foreword
General Information
Safety
Torque Values
Tracks
Track System
Axles and Suspension Systems

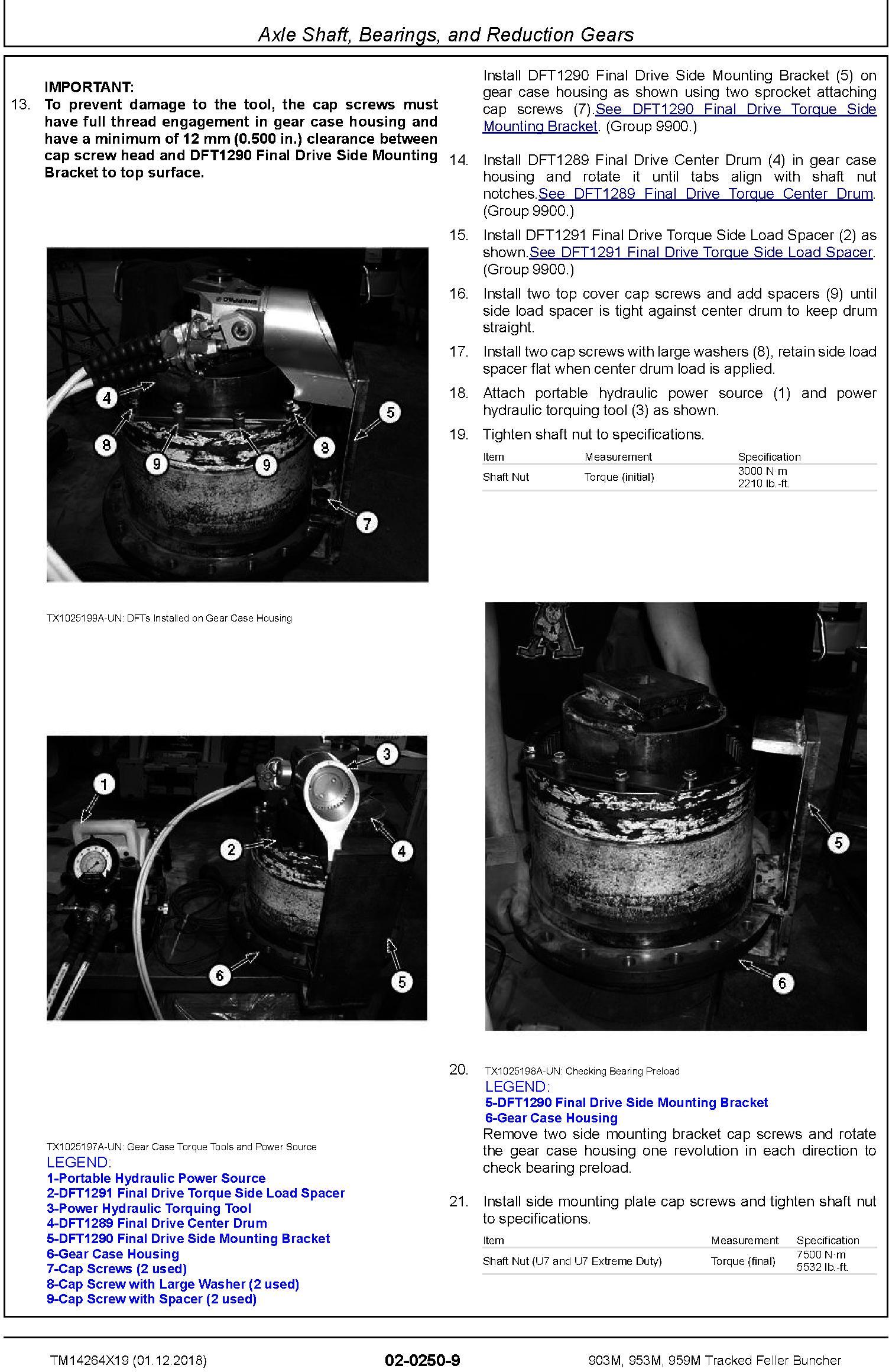

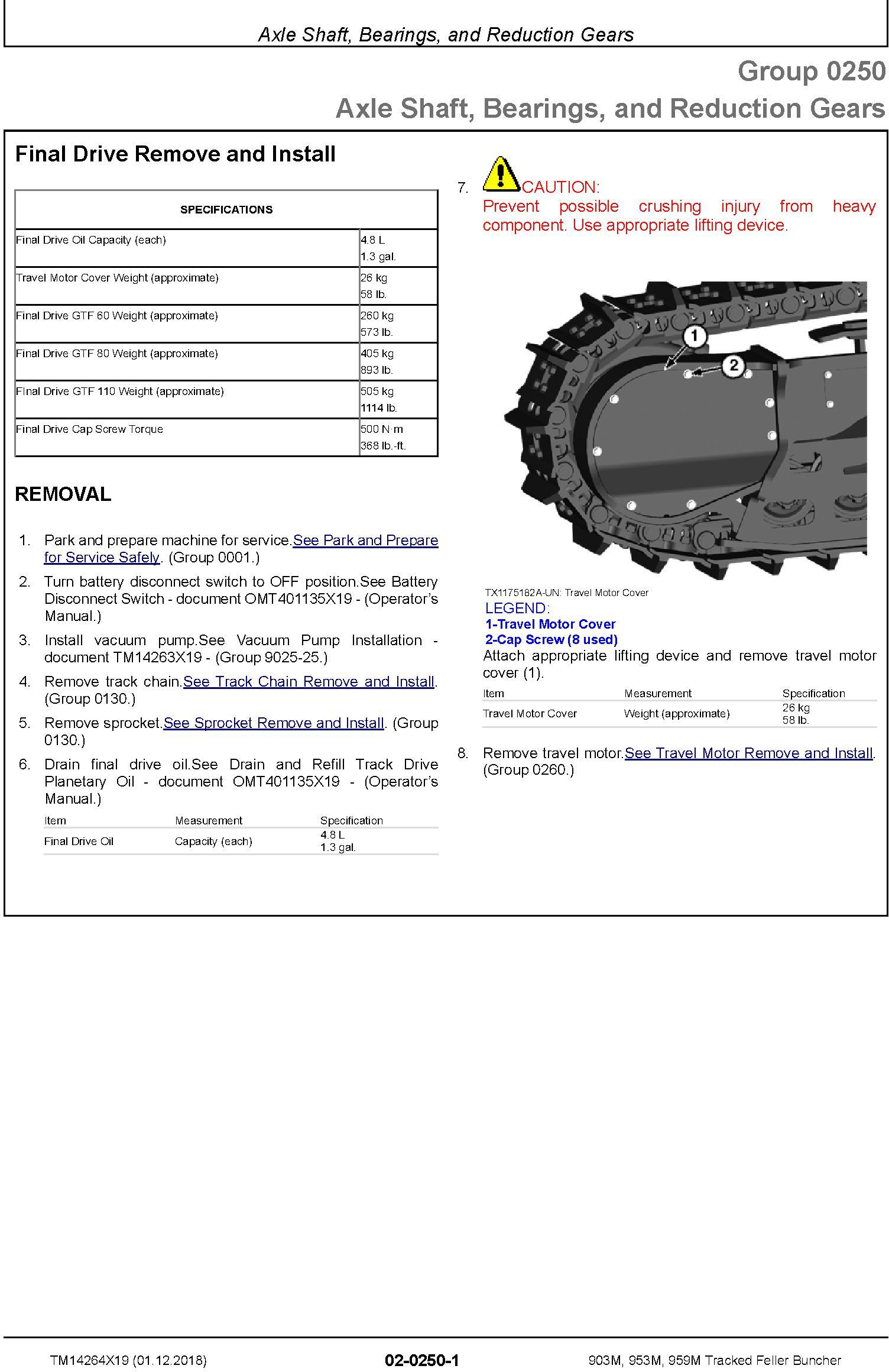

Axle Shaft, Bearings, and Reduction Gears
Hydraulic System
Engine

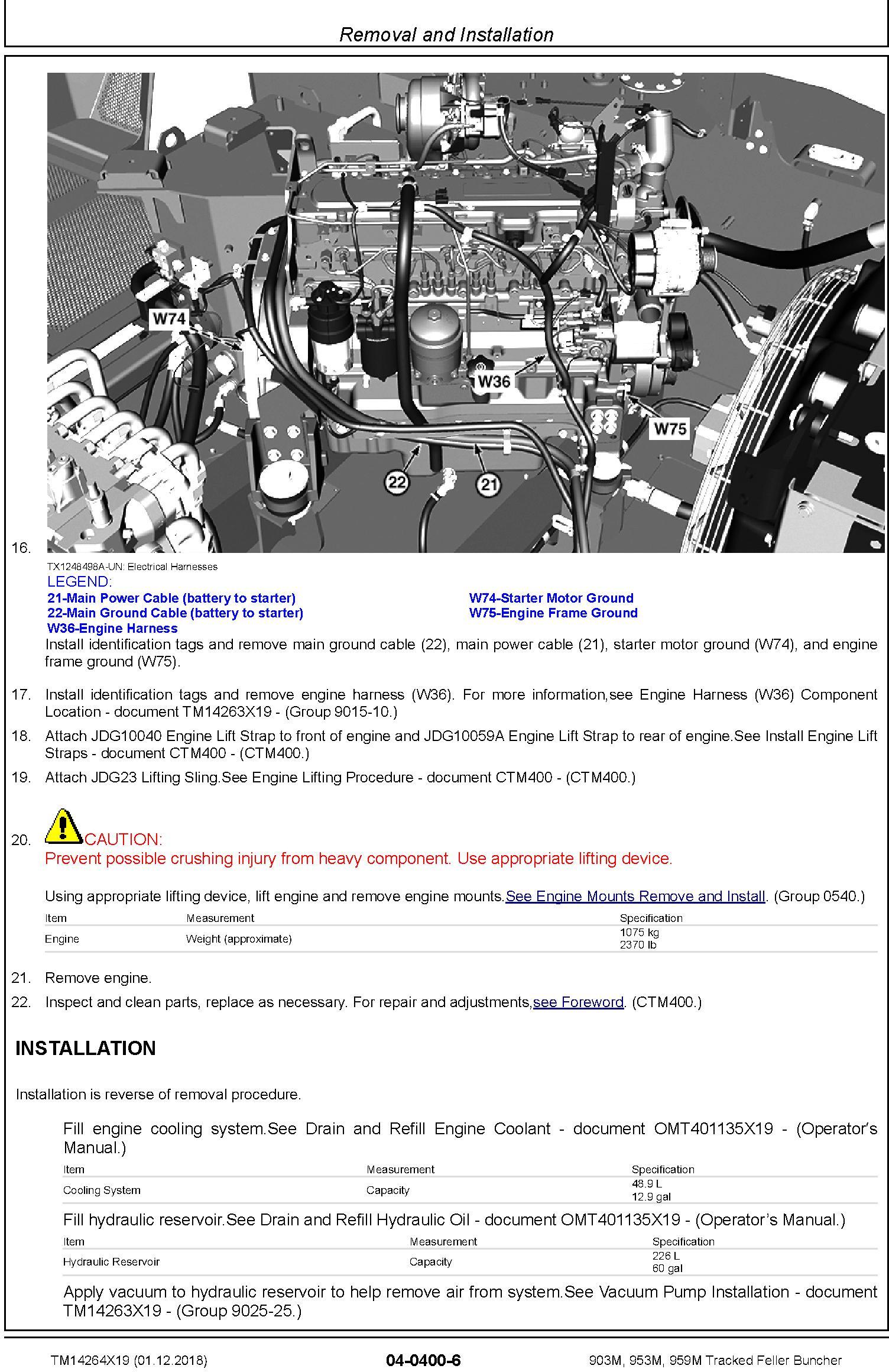

Removal and Installation
Engine Auxiliary System
Cooling Systems
Exhaust Systems
Engine Mounts
External Fuel Supply Systems
Engine Damper
Damper Drive
Remove and Install
Electrical System
Removal and Installation
Frame or Supporting Structure
Frame Installation
Leveler Frame
Chassis Weights
Operator`s Station
Removal and Installation
Operator Enclosure
Seat and Seat Belt
Heating and Air Conditioning
Sheet Metal and Styling
Hood or Engine Enclosure
Main Hydraulic System
Removal and Installation
Hydraulic System
Boom and Stick
Remove and Install
Hydraulic System
Swing or Pivoting System
Remove and Install
Swing Brake
Swing Drive Gear Case and Bearing
Hydraulic System
Dealer Fabricated Tools
Dealer Fabricated Tools
