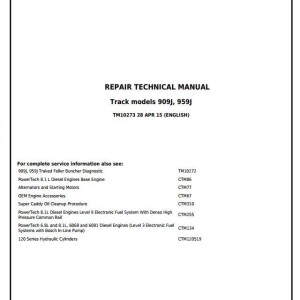

John Deere 909J 959J Tracked Feller Buncher Repair Technical Manual TM10273

John Deere 909J 959J Tracked Feller Buncher Repair Technical Manual TM10273
Language: English
Format: PDF
Document: Repair Technical Manual
Machine: Tracked Feller Buncher
Machine Model: 909J, 959J
Pages: 408 Pages
Part Number: TM10273

Contents:
  Foreword
  General Information
     Safety Information
     General Specifications
     Torque Values
     Fuels and Lubricants
     Inspection and Procedures
  Track Drive
     Remove and Install
     Track Wear Specifications
  Leveling Frame
     Remove and Install
     Hydraulic System
  Engine
     Remove and Install
     Oiling System
     Fuel System
     Starter Motor
     Alternator
  Engine Auxiliary Systems
     Cooling System
     Radiator and Fan Shroud
     Air Intake System
     Exhaust System
     Engine Mounts
     Fuel Tank
     Engine Wiring Harness
  Frame
     Frame Installation
     Leveler Frame
     Chassis Weights
  Operator`s Station
     Cab
     Heating and Air Conditioning
  Sheet Metal and Styling
     Engine Enclosure
  Main Hydraulic System
     Remove and Install
     Hydraulic System
     Control Valves
     Hydraulic Reservoir, Filters and Cooler
     Cylinders
  Booms
     Remove and Install
     Hydraulic System
  Swing System

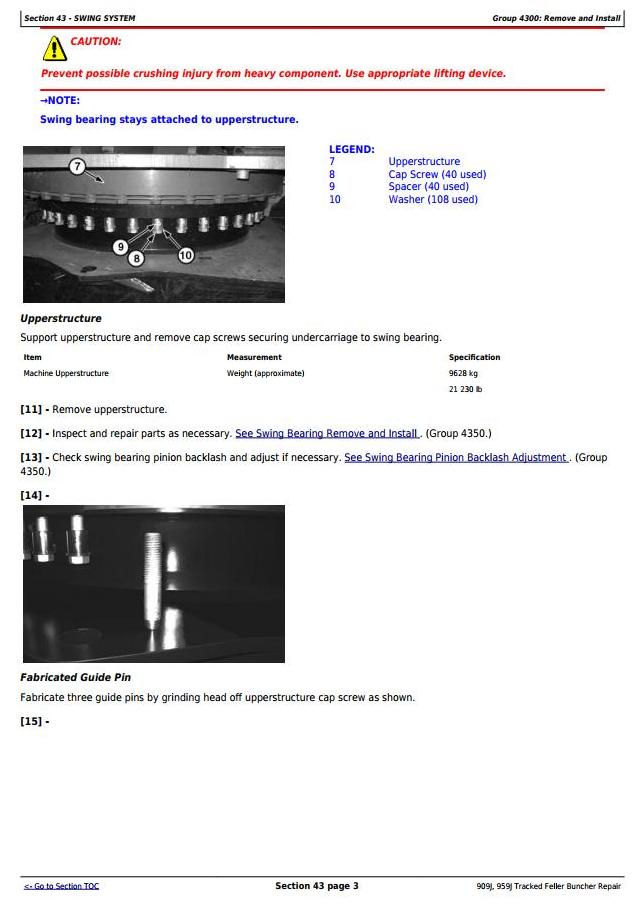

     Remove and Install

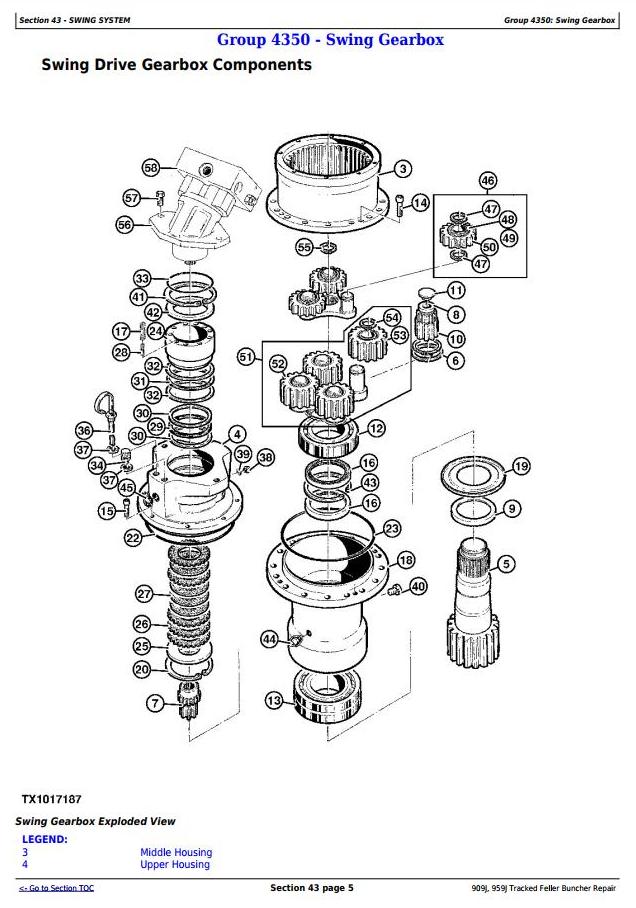

     Swing Gearbox
     Swing Bearing
     Hydraulic System
  Dealer Fabricated Tools
     Dealer Fabricated Tools
