John Deere Articulated Tractor 8570 8770 8870 8970 4WD Operation Test Manual TM1550

John Deere Articulated Tractor 8570 8770 8870 8970 4WD Operation Test Manual TM1550
Language: English
Format: PDF
Document: Operation Test Manual
Machine: Articulated Tractor
Machine Model: 8570 8770 8870 8970
Pages: 803 Pages
Part Number: TM1550

Contents:
SECTION 210-General Information
   Group 05-Safety
   Group 10 -Machine Operational Checks
   Group 15 -General Reference Information
   Group 20-Test Equipment Calibration
SECTION 220-Engine Operation and Test
   Group 05-General Information
   Group 10 -System Diagnosis

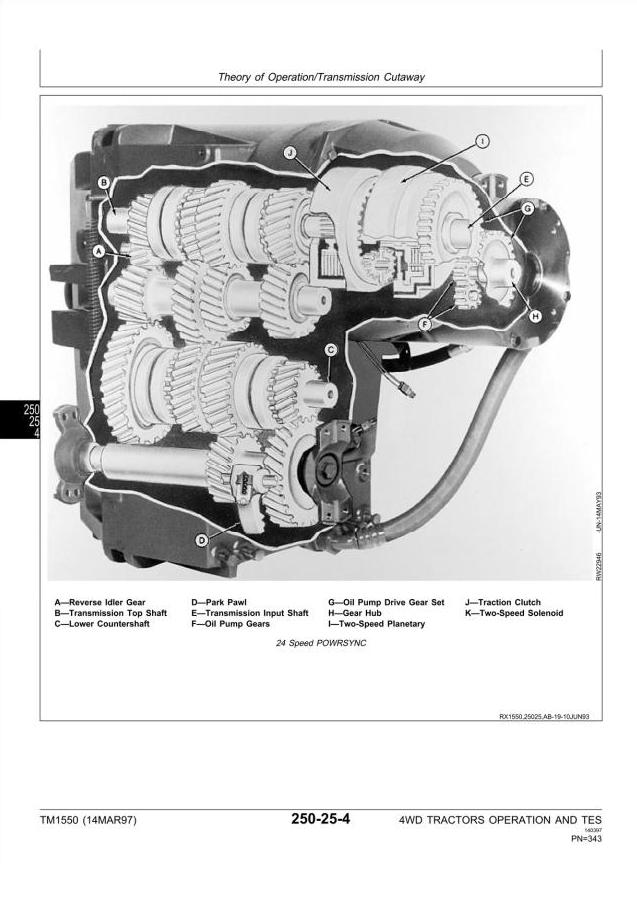

   Group 25-Theory of Operation
SECTION 230-Fuel and Air Operation and Test
   Group 05-Air Intake System
   Group 10 -Diesel Fuel System
SECTION 240-Electrical Operation and Test
   Group 05-Electrical System Introduction
   Group 10 -Load Center, Fuses, Relays andConnectors
   Group 15 -Preliminary Checks
   Group 20-Operational Checks
   Group 25-Starting Circuit
   Group 30-Charging Circuit
   Group 35-INTELLITRAK System-Tachometer Module
   Group 40-INTELLITRAK System-Performance Monitor
   Group 45-24-Speed POWRSYNC Transmission
   Group 50-Lighting Circuit
   Group 55-Accessory Circuits
SECTION 250-12-Speed Syncro & 24-Speed Powrsync™ Transmission
   Group 05-Operational Checks
   Group 10 -Transmission System Diagnosis
   Group 25-Theory of Operation
SECTION 255-Power Shift Transmission
   Group 05 -Operational Checks
   Group 10 -Power Shift Transmission System Diagnosis
   Group 25-Power Shift Theory of Operation
SECTION 256-PTO, Axles and Differentials
   Group 25-Theory of Operation
SECTION 260-Steering and Brakes
   Group 05 -Operational Checks
   Group 10 -System Diagnosis
   Group 15 -Steering And Brake Test
   Group 25-Theory of Operation
SECTION 270-Hydraulic System
   Group 05-Operational Checks
   Group 10 -Hydraulic System Diagnosis
   Group 10A -Hitch System Diagnosis
   Group 15 -Test
   Group 15A -Hitch System Test

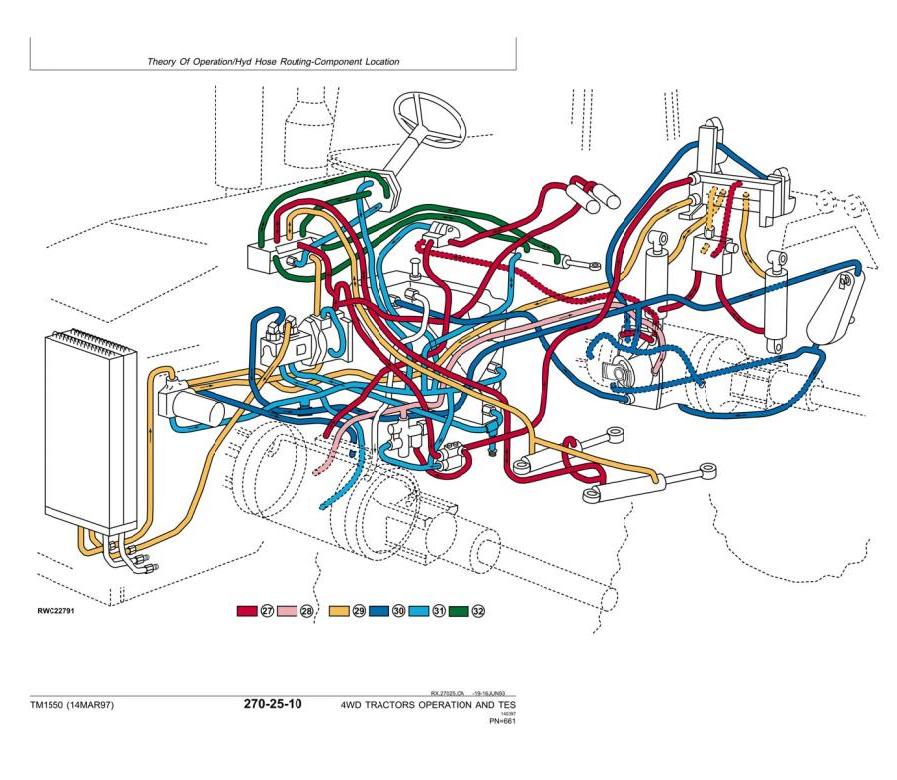

   Group 25-Theory Of Operation
   Group 25A-Hitch System Theory Of Operation
SECTION 290-Operator Station
   Group 05 -Air Quality System Operational Checks
   Group 10 -Air Quality System Diagnosis
   Group 25-Theory of Operation
   Group 30-Seat Diagnosis
SECTION 299-Dealer Fabricated Tools
   Group 05-Fabricated Tools
Index
