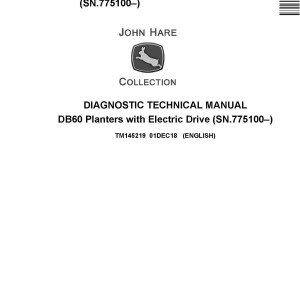

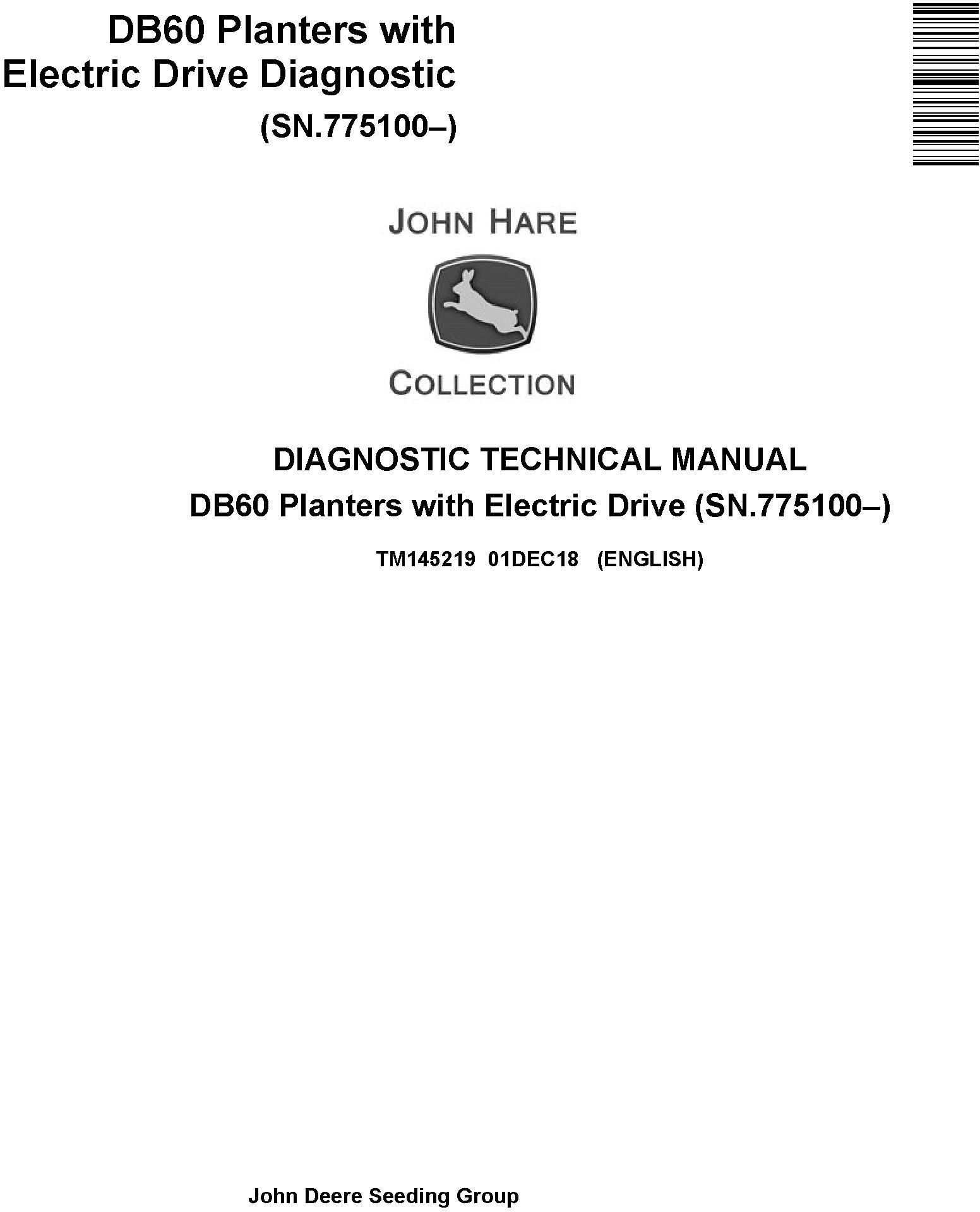

John Deere DB60 Planter Diagnostic Technical Manual TM145219

John Deere DB60 Planter Diagnostic Technical Manual TM145219
Language: English
Format: PDF
Document: Diagnostic Technical Manual
Machine: Planter
Machine Model: DB60 (SN. from 775100) with Electric Drive Diagnostic
Pages: 820 Pages
Part Number: TM145219

Contents:
  Foreword
  General Information
     Safety
     Lubricants
     Recommended Tools for Diagnostics
     Diagnostic Philosophy
     Diagnostic Information for Electrical Components
     Diagnostic Information for Hydraulic Components
     Maintaining Hydraulic Systems and Components
     Standard Torque Chart Procedures
     Acronym Table
  Diagnostic Trouble Codes
     Accessing Diagnostic Trouble Codes
     Closing Wheel Controller (CWC) Codes
     Electric Power Generation (EPG) Codes
     Inertial Measurement Unit (IMU) Codes
     JDLink (MTG) Codes
     Meter Master Controller (MMC) Codes
     Planter Auxiliary Controller (PAC) Codes
     Row Cleaner Control (RCC) Codes
     Row Unit Controller (RUC) Codes
     Wireless Data Server (WDS) Codes
  Observable Symptoms and System Diagnostics
     Observable Symptoms
  Electrical
     General Information
     Theory of Operation
     Frame Electrical Schematics
     56 Volt Power Electrical Schematics
     CAN Bus Electrical Schematics
     Power Schematics
     Diagnostics
  Electrical Control Units
     Accessing Diagnostic Addresses
     Diagnostic Addresses by Control Unit
     Diagnostics
  Electrical Connectors
     Electrical Assemblies
     Sensors
     Lights
     Fuses
     Charging
     Relays
     Motors
     Switches

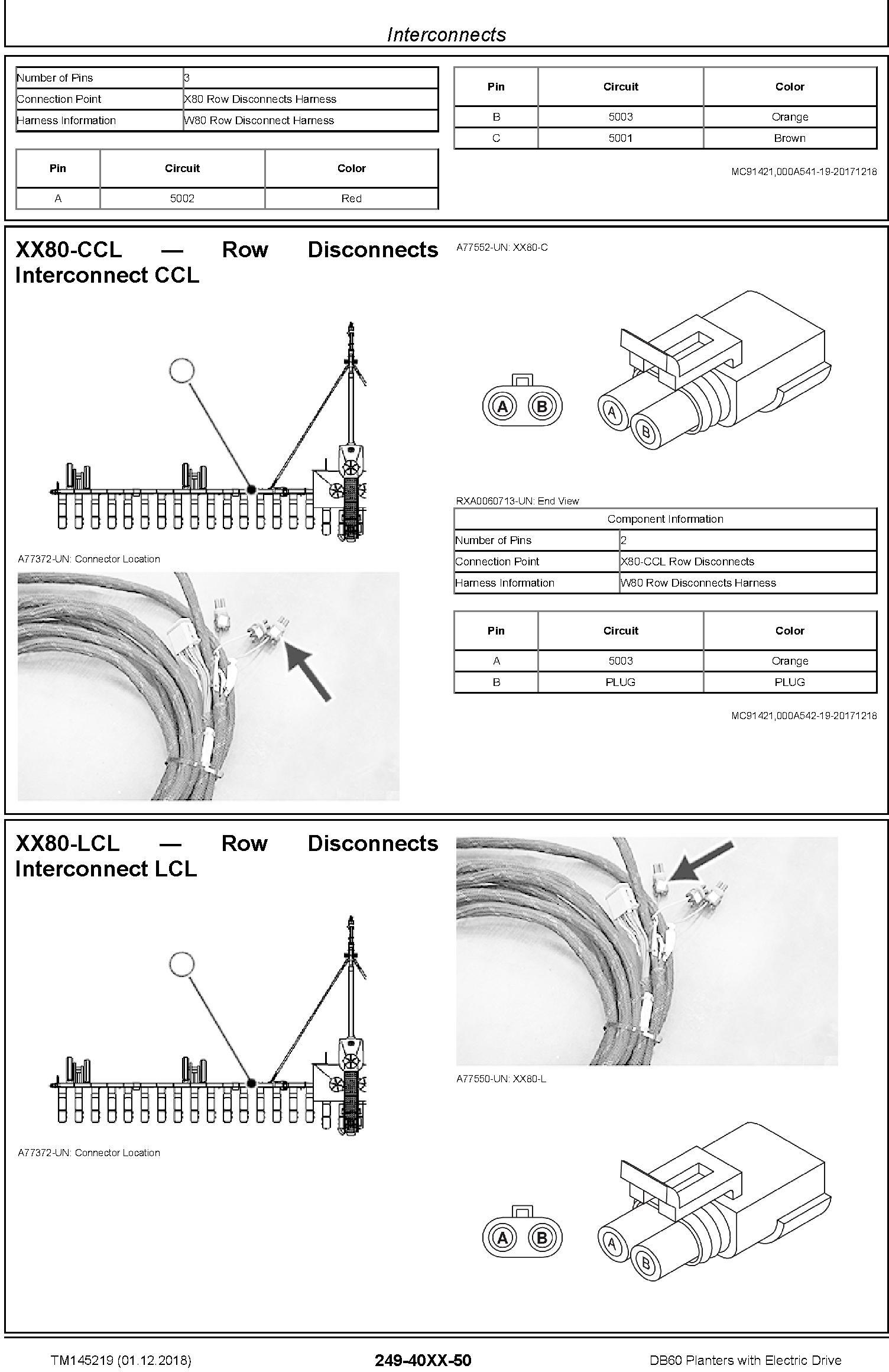

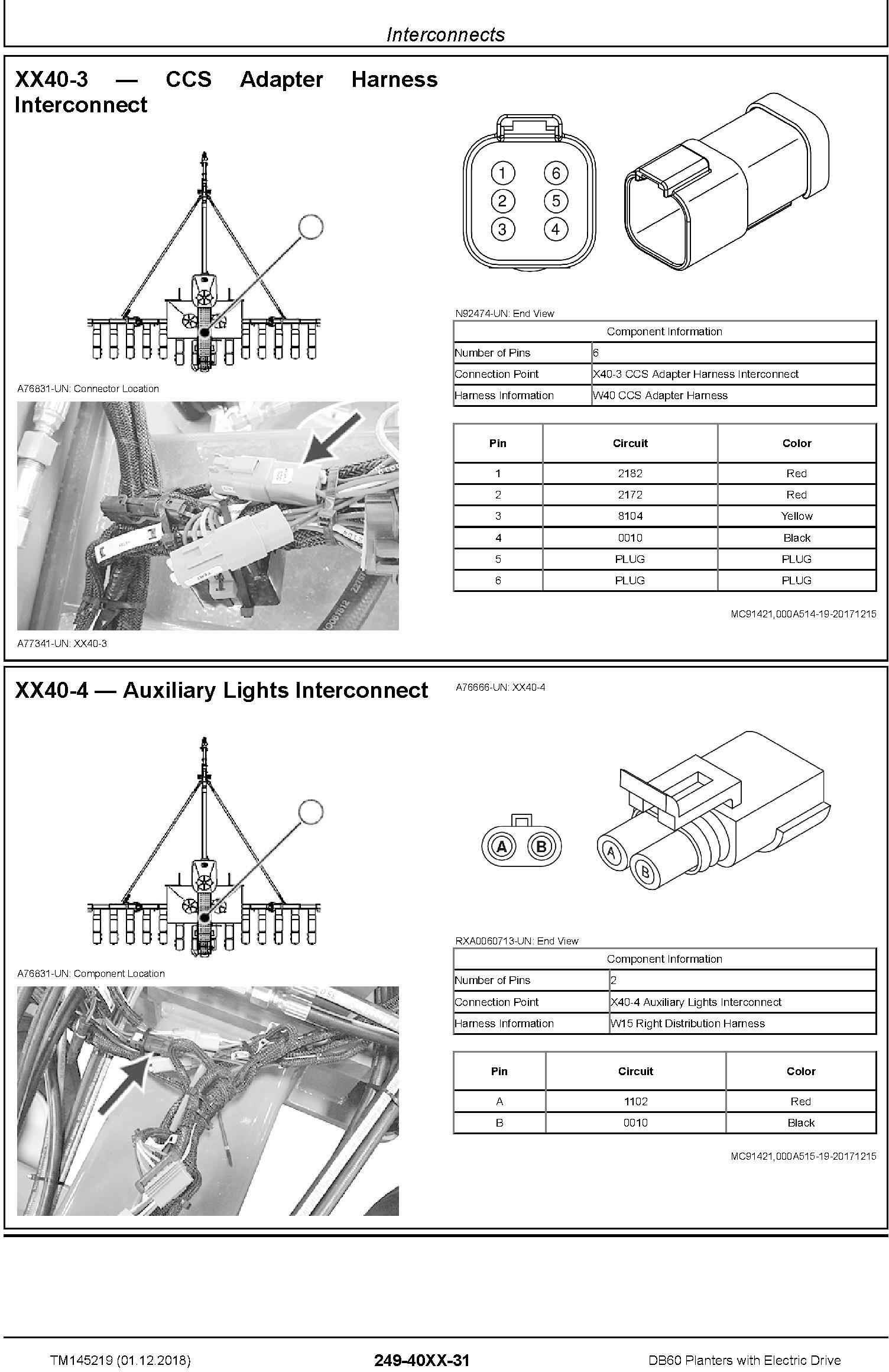

     Interconnects

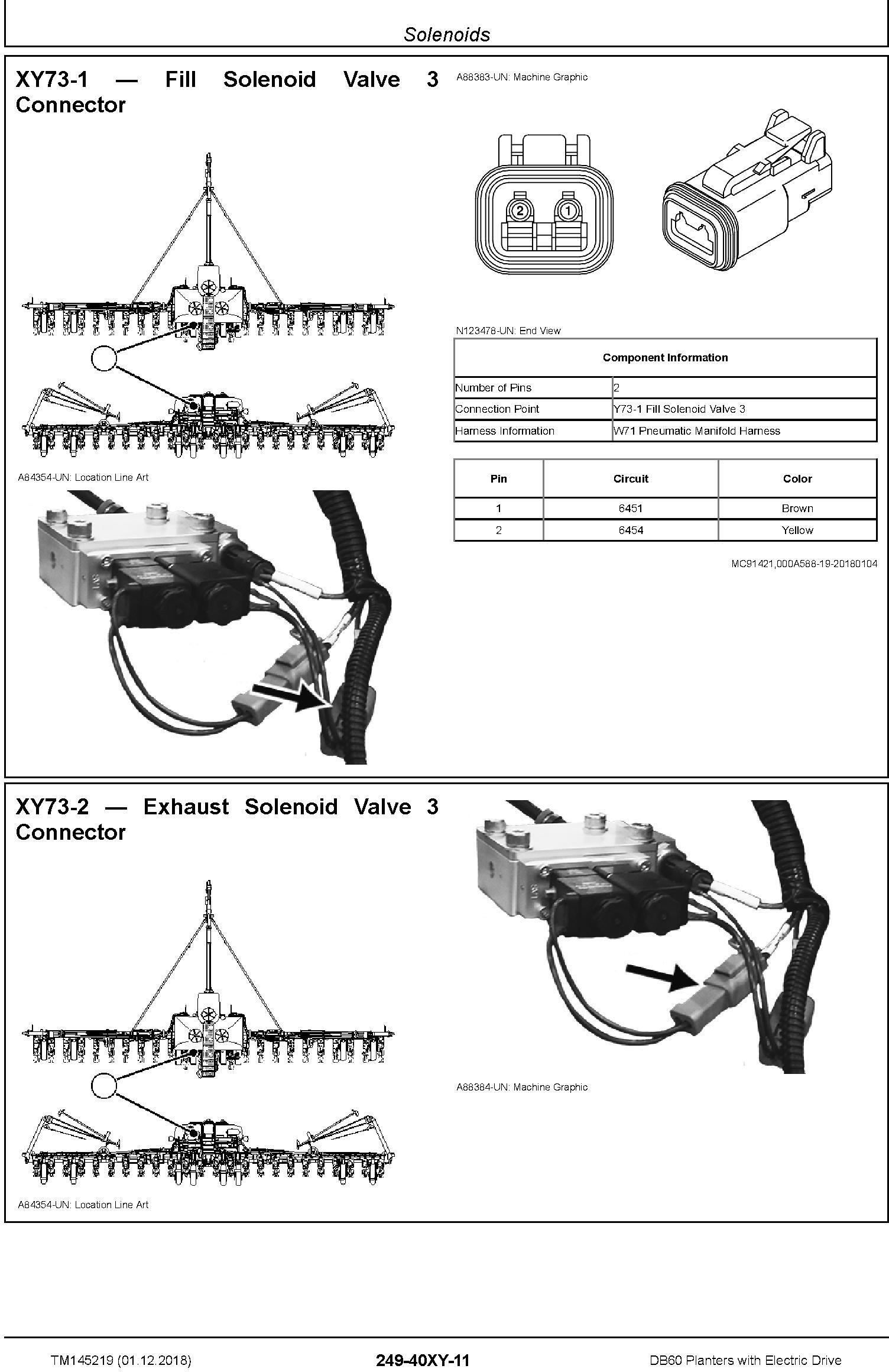

     Solenoids
  Hydraulics
     Theory of Operation
     Schematics
     Diagnostics
  Hydraulic Components
     Accumulator
     Sensor or Gauge
     Cylinder, Actuator, or Piston
     Check Valve
     Filter
     Valve Block, Assembly, or Gearcase
     Cooler
     Motor
     Orifice
     Reservoirs
     Valve
     Diagnostic Receptacle or Coupler
     Solenoid Valve
  Pneumatics
     Theory of Operation
     Schematics
     Diagnostics
  Pneumatic Components
     Accumulators
     Sensors
     Check Valves
     Filters
     Assembly Groups
     Pumps
     Reservoirs
     Valves
     Solenoid Valves
