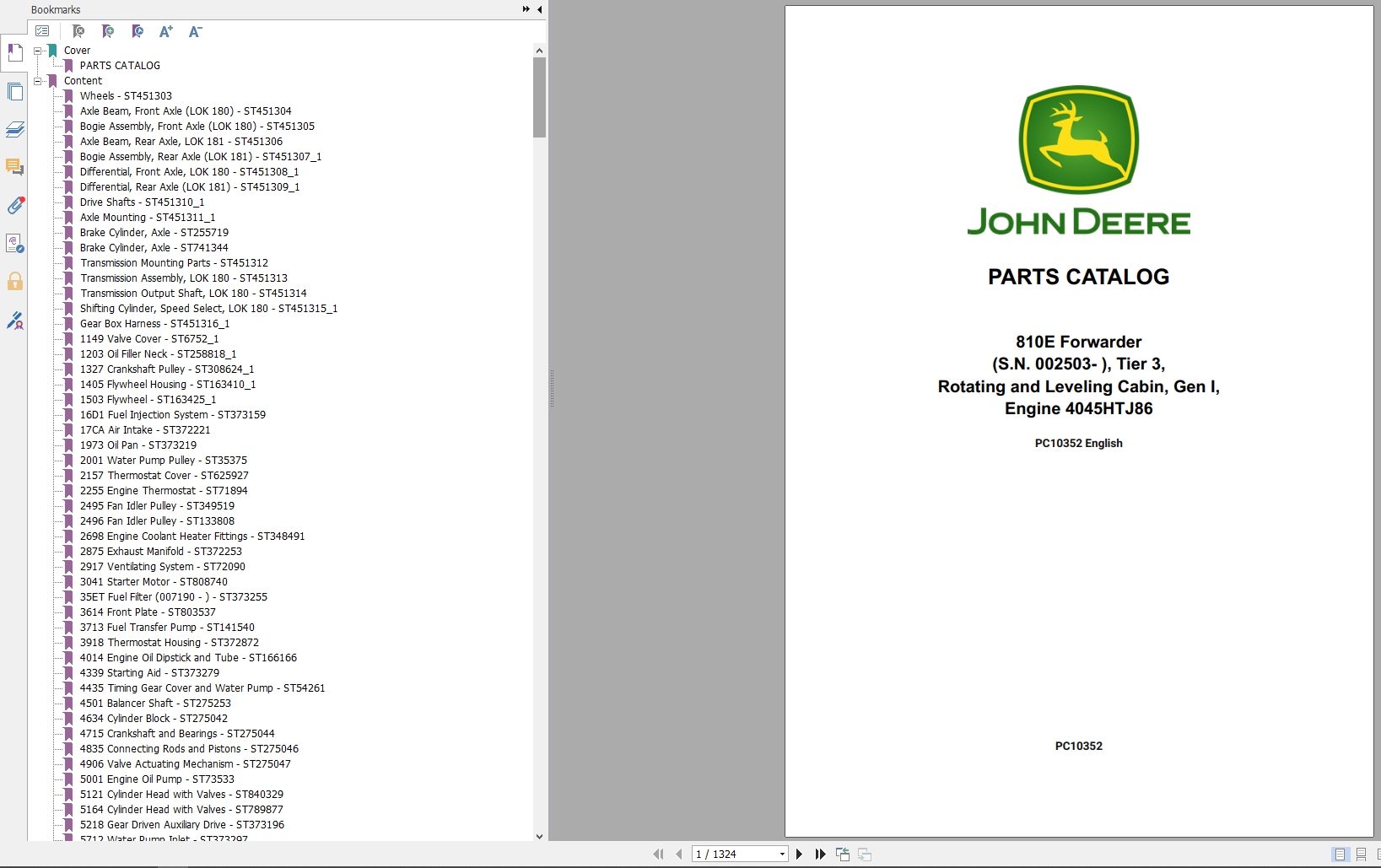

John Deere Forwarder 810E 002503- Parts Catalog PC10352

John Deere Forwarder 810E 002503- Parts Catalog PC10352

Size: 145.37 MB
Format: PDF
Language: English
Brand: John Deere
Machine: Forwarder
Document: Parts Catalog
Machine Model: John Deere 810E Forwarder
Engine: John Deere 4045HTJ86 Tier 3 Engine
Rotating And Leveling Cabin, Gen I,
Serial Number: 002503-
Part Number: PC10352
Publication Date: 2025
Page: 1324 Pages

List Contents:

Wheels

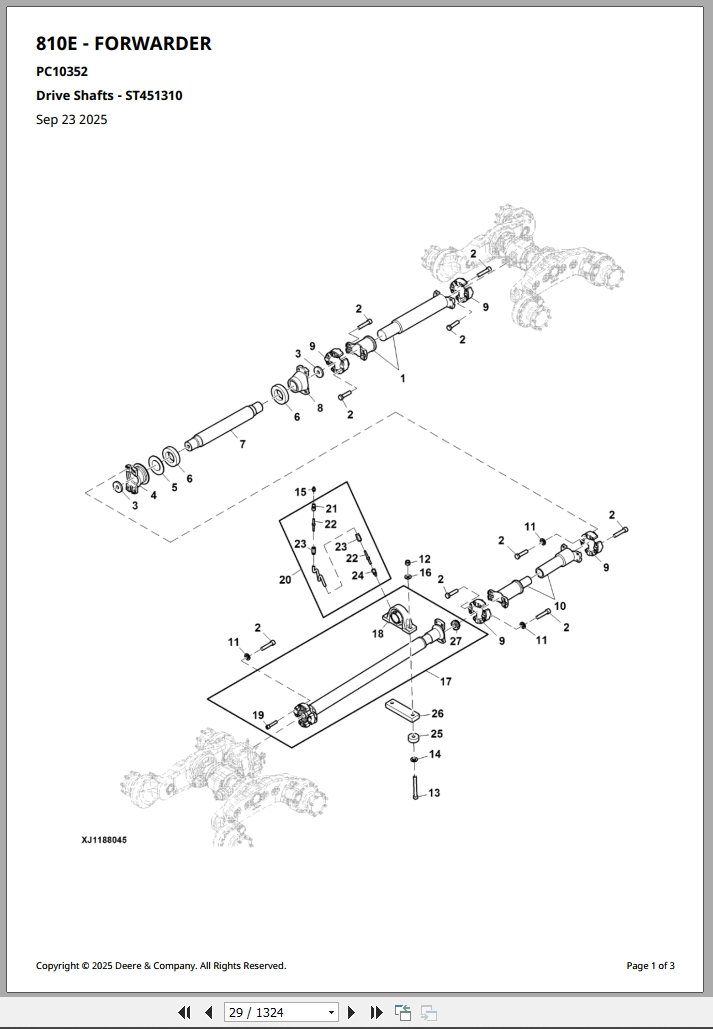

Axle Beam, Front Axle (LOK 180)
Bogie Assembly, Front Axle (LOK 180)
Axle Beam, Rear Axle, LOK 181
Bogie Assembly, Rear Axle (LOK 181)
Differential, Front Axle, LOK 180
Differential, Rear Axle (LOK 181)
Drive Shafts
Axle Mounting
Brake Cylinder, Axle
Brake Cylinder, Axle
Transmission Mounting Parts
Transmission Assembly, LOK 180
Transmission Output Shaft, LOK 180
Shifting Cylinder, Speed Select, LOK 180
Gear Box Harness
1149 Valve Cover
1203 Oil Filler Neck
1327 Crankshaft Pulley
1405 Flywheel Housing
1503 Flywheel
16D1 Fuel Injection System
17CA Air Intake
1973 Oil Pan
2001 Water Pump Pulley
2157 Thermostat Cover
2255 Engine Thermostat
2495 Fan Idler Pulley
2496 Fan Idler Pulley
2698 Engine Coolant Heater Fittings
2875 Exhaust Manifold
2917 Ventilating System
3041 Starter Motor
35ET Fuel Filter (007190 - )
3614 Front Plate
3713 Fuel Transfer Pump
3918 Thermostat Housing
4014 Engine Oil Dipstick and Tube
4339 Starting Aid
4435 Timing Gear Cover and Water Pump
4501 Balancer Shaft
4634 Cylinder Block
4715 Crankshaft and Bearings
4835 Connecting Rods and Pistons
4906 Valve Actuating Mechanism
5001 Engine Oil Pump
5121 Cylinder Head with Valves
5164 Cylinder Head with Valves
5218 Gear Driven Auxiliary Drive
5712 Water Pump Inlet
5947 Oil Cooler
6289 Alternator Mounting
63CC Low Pressure Fuel Lines
65US Turbocharger
65PZ Turbocharger
6698 Temperature Switch
6732 Engine Sensors
7424 Air Conditioning Compressor
7699 Oil Pressure Switch - Plug
8195 Primary Fuel Filter (007190 - )
84DE Electronic Control Unit, Engine, ECU _ Mounting Bracket
8718 Belt Tensioner
8724 Belt Tensioner
8847 Engine Oil Filter
8902 Exhaust Gas Recirculation
9801 Lift Straps
9847 Lift Strap
9901 Complete Block Assembly
9901 Replacement Engine
Engine Pre-Heater Mounting
Engine Pre-Heater
Wiring Harness Components, Pre-Heater
Hoses, Cab Heater W_ Engine Pre-Heater
Hoses, Cab Heater W_O Engine Pre-Heater
Hoses, Cab Heater W_ Engine Pre-Heater
Water Valve Kit (002509 - )
GSM Control, Engine Pre-Heater
Oil Cooler _ Radiator and Mounting
Fan, Shroud, Guard and Motor ( - 002675)
Fan, Shroud, Guard and Motor (002676 - )
Oil Cooler and Radiator Bracket ( - 2675)
Wiring Harness Components, Radiator
Oil Cooler _ Radiator Shroud (2676 - )
Cooler Covers, Air Conditioning Condenser and Mounting
Air Conditioning Hoses
Engine Water Hoses and Water Drain
Water Filter in Coolant Circulation (2503 - 2528)
Water Filter in Coolant Circulation (2529 - )
Alternator Mounting
Hydraulic Fan Drive Hoses
Hydraulic Fan Drive Pump Mounting
Hydraulic Fan Pump
Hydraulic Fan Drive Motor and Components
Foot Throttle
Air Cleaner and Expansion Tank
Muffler and Exhaust Pipe ( - XXXX)
Muffler and Exhaust Pipe (XXXX - )
Engine Mounting Brackets and Isolators
Engine Oil Drain
Fuel Tank
Fuel Filter w_ Heater
Fuel and Water Separator
Fuel Filling Hose
Filling Pump
Fuel Filling Pump Kit
Wiring Harness Components, Fuel Filling Pump
Fuel Lines
Clutch, Engine
Steering Cylinder Hydraulic Hoses
Fittings, Steering Valve ( - 002669)
Fittings, Steering Valve (002670 - )
Components, Steering Valve ( - 002669)
Components, Steering Valve (002670 - )
Steering Pilot Pressure, Valve Stack
Steering Cylinder Lubrication
Auto Lubrication System - Carrier
Lubrication Pump
Reservoir _ Pump - Auto Lubrication System
Wiring Harness, Auto Lubrication System
Steering Cylinder
Steering Cylinder Mounting
Brake, Weight Scale
Front Axle Brake Hoses
Rear Axle Brake Hoses
Brake Valve Hydraulics
Frame Brake Mounting and Hydraulics
Brake Valve and Fittings
Brake Valve
Brake Pedal
Frame Brake Valve
Hose Guards, Brake Hose, Under Cab
Brake Accumulator
Trademarks and Labels
Safety Decals
Cab Decals and Labels
Safety Decals (English, French)
Safety Decals (English, French)
Safety Decals (French)
Warning Labels, Boom
Anti-Slip Plates
Labels, Fire Suppression System
Label, Battery (For Brazil)
Labels, Battery
Labels and Decals
Lubrication Harness, SSV 6_4, CF1
Lubrication Harness, SSV 8_3, CF7
Main Current Switch and Fuses
Battery Mounting
Wiring Harness, Battery
Wiring Harness Components, Battery to Battery Cable
Wiring Harness and Connectors, Battery to Main Switch Cable
Wiring Harness and Connectors, Battery to Ground
Glow Relay and Wiring Harness
Front Signal Lights
Rear Signal Lights (Finland Only)
Rear Signal Lights (Germany Only)
Rear Signal Lights (Austria Only)
Wiring Harness and Connectors, Rear Driving Lights
Cab Work Lights (Halogen) ( - 2576)
Cab Work Lights (Halogen) (2577 - )
Cab Work Lights (Xenon) ( - 2576)
Cab Work Lights (Xenon) (2577 - )
Cab Extra Led Lights, Front and Side
Work Light, Boom, Halogen
Boom Work Lights (Xenon)
Work Light, Boom, LED
Wiring Harness Components, Boom Work Lights
Engine Hood Wiring Harness
Cab Interior Lights ( - 2576)
Cab Interior Lights (2577 - )
Waist Lights, Back-Up Alarm and Light (Halogen)
Waist Lights, Back-Up Alarm and Light (Xenon)
Waist Lights, LED
Backup-Alarm and Light (Xenon and Halogen)
Reverse Warning Alarm and Light, LED
Wiring Harness, Reverse Warning Alarm and Light
Front Frame Wiring Harness And Connectors
Front Frame Wiring Harness And Connectors ( - 002675)
Front Frame Wiring Harness And Connectors (002676 - )
Fuses, Relays and Circuit Board, Front
Engine Wiring Harness
Wiring Harness, Engine Control Unit (ECU) (1_2)
Wiring Harness, Engine Control Unit (ECU) (2_2)
Engine Control Unit (ECU) Wiring Harness
Main Switch and Fuses Wiring Harness ( - 2675)
Main Switch and Fuses Wiring Harness (2676 - )
Boom Valve Wiring Harness
Wiring Harnesses, Cab
Tanks Wiring Harness
Wiring Harness Components, Seat ( - 2576)
Wiring Harness Components, Seat (002577 - )
Cab Wiring Harness and Components ( - 2576)
Cab Wiring Harness and Components (002577 - )
Wiring Harness Components, Cab Main
Wiring Harness Components, Cab Main
Wiring Harness Components, Cab Main
Storage Box Wiring Harness (2577 - )
Wiring Harness Components, Approach Light
Cab Door Wiring Harness ( - 2510)
Cab Door Wiring Harness (2511 - )
Cab Door Switch and Wiring Harness (Field Kit)
Fuse Box, Main Wiring Harness
Wiring Harness Components, Work Brake Valve
Console and Display Assembly, XL PC ( - 002576)
Console and Display Assembly, XL PC (002577 - )
Cowl Assembly, XL PC (2651 - )
Cowl Assembly, XM PC (2651 - )
Printer Mounting (2577 - )
Wiring Harness, CAN Cable (002577 - )
Electrical Equipments, XM PC
Wiring Harness Components, Camera Adapter
Monitor Bracket
GPRS Modem (2577 - )
GPS, Receiver Kit ( - 002576)
GPS, Receiver Kit (002577 - )
JDLink™ Modular Telematics Gateway (MTG) Controller Mounting and Antenna
JDLink™ Modular Telematics Gateway (MTG) Controller Wiring Harness
JDLink™ Modular Telematics Gateway (MTG) Controller, Wiring Harness, Mounting and Antenna
Wiring Harness and Connectors, Modular Telematics Gateway (MTG)
JDLink™ Satellite Module (SAT) Controller Mounting and Antenna
Cover, GPS, MTG, SAT Antenna
Rear Camera
CommandCenter™, DTI
Control Panel, Fire Suppression System
Microcomputer and Mounting Parts, XL4 PC
Boom Slew Sensor
Middle Joint Sensor
Front Frame Covers and Shields
Cab Mounting Side Panels
Middle Joint
Covers and Shields, Rear Frame
Cab Insulation
Cab Insulation (2651 - )
Cab Door and Window
Door Lock (Right)
Cab Upholstery
Storage Box (2577 - )
Headliner
Cab Windows
Secondary Exit (Operable Rear Window)
Secondary Exit Lock ( - XXXX)
Secondary Exit Lock (XXXX - )
Window Mounting Tools
Window Mounting Tools
Window Wipers
Window Washer Reservoir, Pumps, and Hoses
Cool Box and Food Heater
Cab Grille Guards ( - 2647)
Cab Grille Guards (2648 - )
Protection Kit, Reduce Melting Snow
Cab Ventilation (Field Kit)
Cab Mounting
Tanks Wiring Harness
Joystick, Left, Basic _ Navi_Scale ( - 2517)
Joystick, Left, Basic _ Navi_Scale (002518 - 002658)
Joystick, Left, Basic _ Navi_Scale (002659 - 002788)
Joystick, Left (002789 - )
Joystick, Right, Basic _ Navi_Scale ( - 002517)
Joystick, Right, Basic _ Navi_Scale (002518 - XXXXXX)
Joystick, Right, Basic _ Navi_Scale (002659 - 002788)
Joystick, Right (002789 - )
Radio, Standard
Seat, Grammer
Basic Seat, Grammer
Basic Seat Suspension, Grammer
Comfort Seat, Grammer
Comfort Seat Suspension, Grammer
Seat, Be-Ge, 7130 C4 Basic W_ 4-Point Fixed Seat belt
Seat Base Kit, Be-Ge, 7130 C4 Basic
Seat, Be-Ge, 7130 C4 Airvent
Seat Base Kit, Be-Ge, 7130 C4 Airvent
Armrest Bracket (Grammer)
Seat, Armrest Bracket, Right
Seat, Armrest Kit, Right
Seat, Armrest Bracket, Left
Seat, Armrest Kit, Left
Seat (Be-Ge 3130F C4 Airvent)
Seat, Be-Ge, 7130 C4 Airvent
Seat, Be-Ge 3130F C4 Airvent
Seat Base Kit, Be-Ge 3130F C4 Airvent
Seat Control, Be-Ge 3130F C4 Airvent
Seat Cover, Be-Ge 3130F C4 Airvent
Seat Protection Bellow, Be-Ge 3130F C4 Airvent
Seat Plate, Be-Ge 3130F C4 Airvent
Seat Backrest, Be-Ge 3130F C4 Airvent
Seat Backrest Support, Be-Ge 3130F C4 Airvent
Seat Backrest and Cushion, Be-Ge 3130F C4 Airvent
Seat Airvent, Be-Ge 3130F C4 Airvent
Components, Hydraulic Stairs
Service Stairs
Handholds - Cab
Air Conditioner _ Heater Air Ducts
Air Conditioner _ Heater (Components) ( - 002576)
Air Conditioner and Heater (002577 - )
Ambient Air Temperature Sensor
Temperature Sensor, Cabin
Engine Hood, Front
Engine Hood, Rear
Tank Mounting and Covers
Engine Compartment Grille
Radio and Speakers ( - 2576)
Radio and Speakers (2577 - )
Antennas
Mirror Arms _ Mirror
Outside Rear View Mirror, Telescopic
Fire Extinguisher and Bracket
Fire Suppression System Sensors
Tank Mounting, Fire Suppression System
Fire Suppression System Lines
Fire Suppression System Labels (For Sweden)
Back Up Alarm
Toolbox Mounting
Tool Box
Gauge Kit
Environmental Kit
Sun Visor, Cab
Front Window Sun Visor
Reflectors (For Germany)
Reflectors (For Sweden, Germany, Finland, France and Austria)
Warning Triangle
Hydraulic Drive Pump and Work Pump Mounting
Hydrostatic Drive Hydraulic Hoses
Hydraulic Drive Pump
Hydraulic Work Pump
Oil Filling Pump Kit
Oil Filling W_ Pump
Oil Filling Hose, Hydraulic
Valve, Auxiliary Functions
Valve, LS Block
Valve, LS
Drive Pump Measure Block
Drive Pump Measure Block Wiring Harness
LS- Valve Hydraulic Hoses
Load Space Valve Module (Movable, Narrow)
Thermostatic Control Valve
Hydraulic Fan Valve
Clambunk Valve
Hydraulic Stairs Hydraulics
Vacuum Pump W_ Breather
Vacuum Pump W_ Dryer
Hydraulic Tank Breather
Headboard Hydraulic Lines (Movable, Narrow)
Clambunk Dual Controls, Hydraulic Lines
Clambunk Dual Controls, Wiring Harnesses
Hydraulic Oil Reservoir
Thermostatic Control Valve, Hydraulic Oil Reservoir
Hydraulic Oil Cooler Lines
Hydraulic Oil Offline Filter
Filter Kit, Standard
Filter Kit, Environmental
Movable Headboard Cylinder
Hydraulic Cylinder, Stairs
Bulldozer Blade Cylinder
Hydrostatic Drive Motor Components
Bulldozer Blade Mounting
Shield W_O Bulldozer Blade
Hydraulics, Bulldozer Blade, Proportional
Counter Balance Valve Mounting
Valve, Counter Balance
Proportional Valve Mounting
Valve Section, Inlet
Valve Section, Spool
Valve Section, Outlet
Boom Base, CF1
Bearing Kit, CF1 Boom
Grapple Holder and Boom Support Bracket
Mounting, Rotating Boom Platform, CF1
Boom Pillar
Main Boom, CF1
Outer Boom, CF172
Outer Boom, CF187
Outer Boom, CF198
Crane Fall Limiter
Extension Boom Module, CF172
Boom Extension, CF172
Extension Boom Module, CF187
Boom Extension 1, CF187
Second, Boom Extension, CF187
Extension Boom Module, CF198
Boom Extension 1, CF198
Boom Extension, Second, CF198
Boom Scale, Bluetooth, CF1XX
Boom Valve Hoses
Boom Valve Hoses
Boom Valve Fittings
Boom Slew Hoses
Boom Valve Mounting
Valve Sections, Boom
Inlet Section, Boom Valve
Main Boom Section, Boom Valve
Outer Boom Section, Boom Valve
Extension Boom Section, Boom Valve
Slew Section, Boom Valve
Grapple Section, Boom Valve
Rotator Section, Boom Valve
Steering Section, Boom Valve
Outlet Section, Boom Valve
Boom Base Hydraulic Lines
Boom Dampening
Boom Pillar Hydraulic Hoses
Main Boom Oil Lines
Extension Boom Oil Lines, CF172
Extension Boom Oil Lines, CF187
Extension Boom Oil Lines (CF198)
Rotator Hydraulic Hoses, CF1
Rotator Hydraulic Hoses , CF172
Rotator Hydraulic Hoses , CF187-CF198
Auto Lubrication System, CF1 Fixed Boom
Auto Lubrication System Service Kit
Slew Cylinder, CF1
Hydraulic Cylinder, Main Boom, CF1
Hydraulic Cylinder, Outer Boom, CF1
Cylinder, Extension Boom, CF172
Boom Extension Cylinder, CF187
Boom Extension Cylinder, CF198
Grapple, Loglift FX26
Grapple, Loglift FX36
Grapple, Hultdins Supergrip 260
Grapple, Hultdins Supergrip 260S
Grapple, Hultdins Supergrip 260RS
Grapple, Hultdins Supergrip 260R
Grapple, Hultdins Supergrip 300
Grapple, Hultdins Supergrip 300S
Grapple, Hultdins Supergrip 300RS
Grapple, Hultdins Supergrip 300R
Grapple, Hultdins Supergrip 360
Grapple, Hultdins SuperGrip 360S
Grapple, Hultdins SuperGrip 360S
Grapple, HSP Gripen 015
Grapple, HSP Gripen 015HD
Grapple, Gripen 015HDBIO
Grapple, Gripen 015BIO
Grapple, HSP Gripen 020
Grapple, HSP Gripen 020HD
Grapple, HSP Gripen 020BIO
Grapple, HSP Gripen 025
Grapple, HSP Gripen 025HD
Grapple, HSP Gripen 025V
Grapple, HSP Gripen 025BIO
Grapple, HSP Gripen 025DUO
Grapple Link, Loglift
Grapple Link (Indexator)
Grapple Link W_ Brake, Indexator, Single Damped
Grapple Link With Brake (Indexator MPB1-80)
Rotator GV 12-2 W_ Adapter G1_2_
Components, Rotator G 121-2 W_ Adapter G1_2_
Rotator GV 12 with Adapter G1_2_
Grapple, Lubrication Hoses, HSP Gripen 015, 015HD,015HDBIO, 015BIO, 020, 020HD, 020BI
Grapple, Lubrication Hoses and Fittings, HSP Gripen 025, 025HD, 025V, 025BIO, 025DUO
Grapple Cylinder (Loglift FX26, FX36)
Grapple Cylinder, Hultdins Supergrip 260, 260R, 260S, 260RS, 300, 300R, 300S, 300RS
Grapple Cylinder and Components, Hultdins SuperGrip 360, 360R, 360RS, 360S
Grapple Cylinder, Gripen HSP 015,HSP 015HD, HSP 015HDBIO, HSP 015BIO
Grapple Hydraulic Cylinder, HSP Gripen 020, 020HD, 020BIO
Grapple Hydraulic Cylinder, HSP Gripen, 025, 025HD, 025V, 025BIO, 025DUO
Wiring Harness, Levelling Cab ( - XXXXXX)
Wiring Harnesses, Levelling Cab (XXXXXX - )
Wiring Harness Components, Levelling Cab
Wiring Harness Components, Levelling Cab
Sensor, Gyroscope ( - 002675)
Levelling Cab Sensor (002676 - 002792)
Wiring Harness, Levelling Cab Sensor
Rotating Cab Wiring Harness (2598 - )
Rotating Cab Wiring Harness Components
Wiring Harness Components, Cab Tilt
Cab Levelling Frame
Bearing W_ Housing, Cab (002598 - )
Levelling Cab Mounting
Cab Rotating Frame
Rotating Cab Mounting
Levelling Cab Hydraulics
Cabin Mounting
Levelling Cab Valve and Fittings ( - 2658)
Levelling Cab Valve _ Fittings (002659 - )
Levelling Cab Valve Components ( - 2653)
Levelling Cab Valve Components (002659 - 002716)
Levelling Cab Valve Components (002717 - )
Rotating Cab Hydraulics
Rotating Cab Valve and Fittings ( - 2658)
Fittings, Rotating Cab Valve (2659 - )
Rotating Cab Valve Components ( - 002653)
Rotating Cab Valve Components (002659 - )
Cab Tilt Hydraulics
Auto Lubrication System - Rotating and Levelling Cab
Components, Central Lubrication System, Cabin
Components, Levelling Cab Hydraulic Cylinder ( - XXXX)
Components, Levelling Cab Hydraulic Cylinder (002649 - )
Levelling Cab Tie Rod
Load Space, Narrow, 3,4 m²
Load Space, Wide, 3.9 m² (42 ft²)
Load Space, 3.4 m² (For France and United Kingdom)
Headboard, 3.4 m² (For France and United Kingdom)
Bunk, Bracket and Hardware
