Kawasaki 95Z7 115Z7 Shop Manual

Kawasaki 95Z7 115Z7 Shop Manual
Size: 98.1 MB
Machine: Wheel Loader
Machine Model: 95Z7 115Z7
Engine: ISUZU 6WG1 Diesel Engine
Serial Number: 97J1-5001 and up, 11J1-5001 and up

Content:
Kawasaki 95Z7 115Z7 ISUZU 6WG1 Diesel Engine Shop Manual General Information Troubleshooting Information 93215-00620 2012
Kawasaki 95Z7 115Z7 ISUZU 6WG1 Diesel Engine Shop Manual Removal & Installation Disassembly & Reassembly Inspection 93215-00630 2012
Kawasaki 115Z7 Shop Manual General Information Function & Structure 93216-00570 (US) 2013
Kawasaki 115Z7 Shop Manual Operational Performance Test Troubleshooting 93216-00580 (US) 2013
Kawasaki 115Z7 Shop Manual Disassembly & Reassembly 93216-00590 (US) 2014

The Bookmarks of Kawasaki 95Z7 115Z7 Wheel Loader Shop Manual:
Kawasaki 115Z7 Shop Manual General Information Function & Structure:
Introduction
1 General Toc
2 System Toc
1 Controller
2 Control System
 Engine Control
 Pump Control
1 Transmission Control
 Fan Control, Valve Control
 Other Controls
 Combined Electric And Hydraulic Control Circuit
3 Ecm System

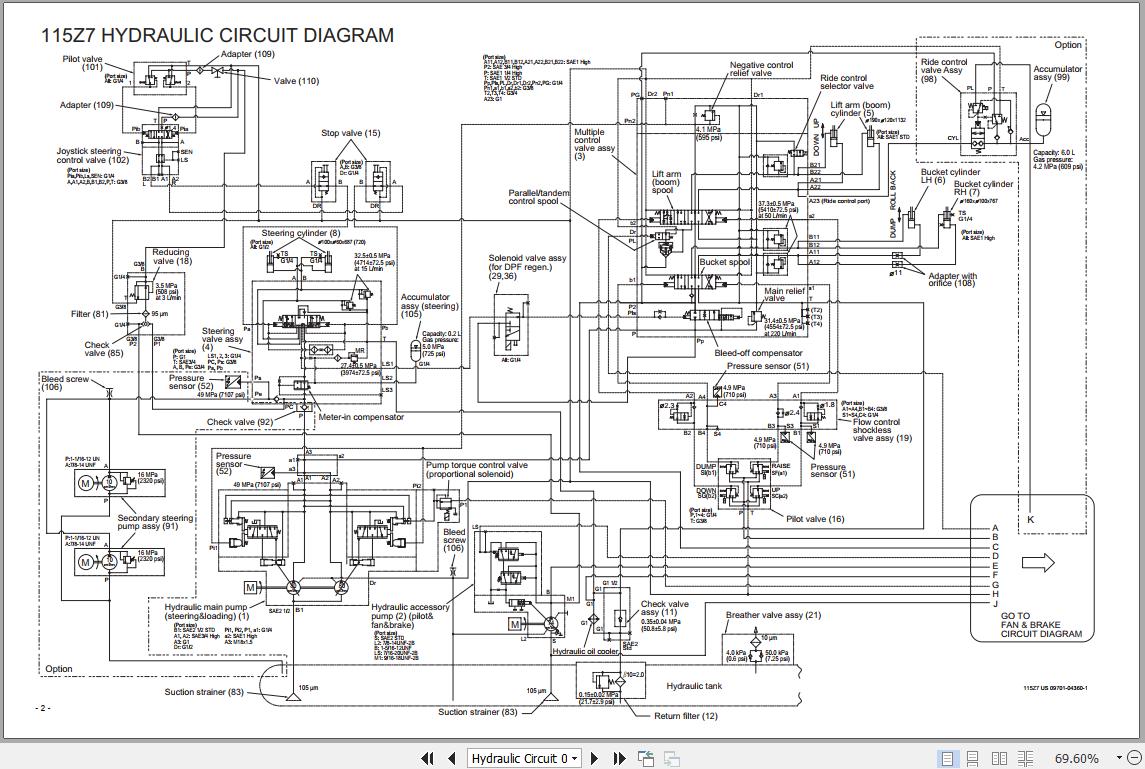

4 Hydraulic System
 Pilot Circuit
 Main Circuit
 Secondary Steering Circuit (Option)
5 Electrical System
 Main Circuit
 Monitor Circuit
 Steering Column Monitor Circuit
 Accessory Circuit
3 Component Operation Toc
 1 Pump Device
 2 Control Valve
 3 Cooling Fan System
 4 Steering Pilot Valve
 5 Steering Valve
 6 Pilot Valve
 7 Charging Circuit
 8driveunit
 9.Axle
 10 Brake Valve
 11 Others
Index
Kawasaki 115Z7 Shop Manual Operational Performance Test Troubleshooting:
Introduction
Symbol And Abbreviation
4 Opera11onal Performance Test
 1 Introduction
 2 Standard
 3 Engine Test
 4 Machine Performance Test
 5 Component Test
5 Troubleshooting
 1 Diagnosing Procedure
 2 Monitor
 4 Component Layout
 5 Troubleshooting A
 6 Troubleshooting B
 7aiconditioner
Index
Kawasaki 115Z7 Shop Manual Disassembly & Reassembly:
General
 1 Precautions For Disassembling And Assembling
 2 Tightening
 3 Painting
 4 Bleeding Air
 5 Pressure Release Procedure
 6 Preparation
Maintenance Standard
 1 Body
 2 Front Attachment
Body
 1 Cab
 2 Counterweight
 3 Center Hinge
 4 Engine
 5 Radiator Assembly
 6 Hydraulic Od Tank
 7 Fuel Tank
 8 Pump Device
 9 Control Valve
 10 Pilot Valve
 11 Unloader Valve
 12 Combination Valve
 14 Flow Regulator Valve
 15 Cooling Fan System
 16 Exhaust Filter
 17 Ride Control Valve And Accumulator
 18 Battery
Travel System
 1 Tire
 2 Drrve Unit
 3 Axle
 4 Propeller Shaft
 5 Brake Valve
 S Joystick Steering
 7 Steering Valve
 8 Steering Cylinder
 9 Secondary Steering Device
 10 Reducing Valve
 11 Stop Valve
 12 Main Pressure Block
 13 Priority Hammer Valve And Shuttle Valve
 14 Check Valve
Front Attachment
 1 Front Attachment
 2 Cylinder
