Kia SELTOS SP2i INDIA 2023 Wiring Diagrams

Data Size: 12.8 MB
File Type: HTML
Language: English
Manufacturer: Kia
Type of machine: Automobile
Type of document: Electrical Wiring Diagrams
Machine Model: Kia SELTOS SP2i INDIA 2023 G 1.5 T-GDI Kappa PE SP2i PE

List Contents:

Connector View, Components - Battery Harness
Connector View, Components - Bumper Harness

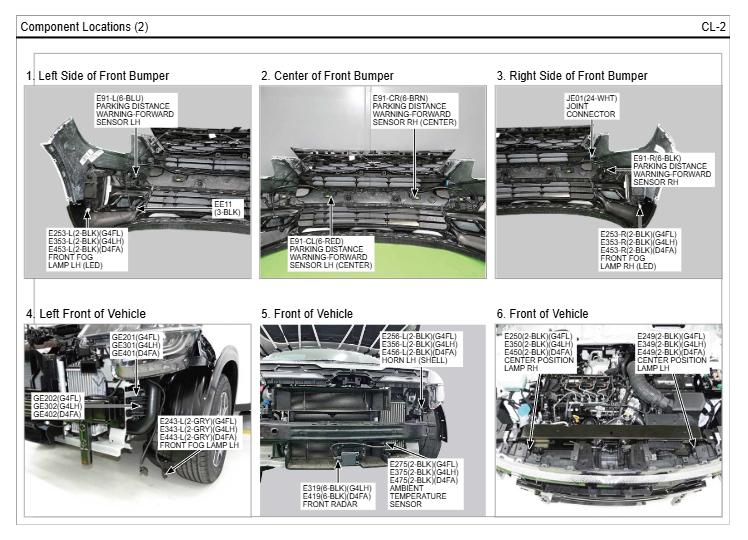

Connector View, Components - Component Locations
Connector View, Components - Door Harness Driver Door
Connector View, Components - Door Harness Passenger Door
Connector View, Components - Door Harness Rear Door
Connector View, Components - Floor Harness
Connector View, Components - Front Harness
Connector View, Components - Harness Connection
Connector View, Components - ICU (Integrated Central Control Unit) Junction Block
Connector View, Components - Joint Connector
Connector View, Components - Main Harness
Connector View, Components - Roof Harness
Connector View, Components - Seat Harness
Connector View, Components - Tailgate Harness
Harness Layout - Battery Harness
Harness Layout - Bumper Harness
Harness Layout - Console Extension Harness
Harness Layout - Door Harness
Harness Layout - Floor Harness
Harness Layout - Front Harness
Harness Layout - Ground Point
Harness Layout - Main Harness
Harness Layout - Roof Harness
Harness Layout - Seat Harness
Harness Layout - Steering Wheel Harness
Harness Layout - Tailgate Harness
Schematic Diagrams - Audio System
Schematic Diagrams - Auto Lights
Schematic Diagrams - AVNT (Audio Video Navigation Telecommunication) System
Schematic Diagrams - Back-Up Lamps
Schematic Diagrams - Blind-Spot Collision Warning (BCW) System
Schematic Diagrams - Charging System
Schematic Diagrams - Cooling System
Schematic Diagrams - Courtesy
Schematic Diagrams - Data Link Details
Schematic Diagrams - Daytime Running Lights (DRL)
Schematic Diagrams - DC-DC Converter
Schematic Diagrams - Defogger System
Schematic Diagrams - Double Clutch Transmission Control System
Schematic Diagrams - Electro Chromic Mirror System
Schematic Diagrams - Electronic Stability Program (ESP) System With EPB
Schematic Diagrams - Electronic Stability Program (ESP) System with out EPB

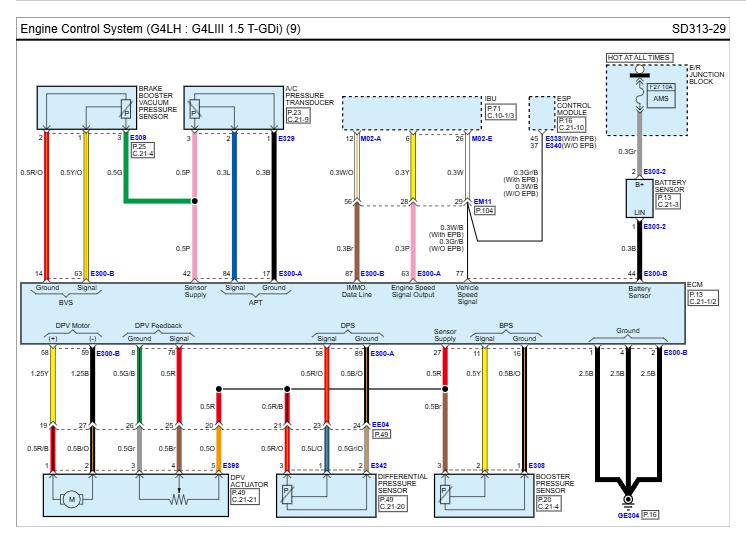

Schematic Diagrams - Engine Control System
Schematic Diagrams - Fog Lamps
Schematic Diagrams - Forward Collision-Avoidance Assist (FCA) System
Schematic Diagrams - Headlamp Leveling Device (HLLD) System
Schematic Diagrams - Headlamps
Schematic Diagrams - Heating,Ventilation, Air Conditioning AC Control System Auto
Schematic Diagrams - Heating,Ventilation, Air Conditioning AC Control System Manual
Schematic Diagrams - Horns
Schematic Diagrams - Illuminations
Schematic Diagrams - IMT (Intelligent Manual Transaxle) System
Schematic Diagrams - Indicators
Schematic Diagrams - Integrated Body Control Unit (IBU) System Body Control
Schematic Diagrams - Integrated Body Control Unit (IBU) System Immobilizer
Schematic Diagrams - Integrated Body Control Unit (IBU) System Smart Key
Schematic Diagrams - Intelligent Power Switch (IPS) System
Schematic Diagrams - Keyless Entry
Schematic Diagrams - Lane Keeping Assist-Line (LKA-L R) System
Schematic Diagrams - Mood Lamps
Schematic Diagrams - Motor Driven Power Steering (MDPS) System
Schematic Diagrams - Outside Mirror Folding System
Schematic Diagrams - Parking Distance Warning (PDW) System
Schematic Diagrams - Power Door Locks
Schematic Diagrams - Power Outlet System
Schematic Diagrams - Power Outside Mirror System With SVM
Schematic Diagrams - Power Outside Mirror System without SVM
Schematic Diagrams - Power Seat System
Schematic Diagrams - Power Window System With All Auto Up Down
Schematic Diagrams - Power Window System with Auto Down
Schematic Diagrams - Power Window System with Driver auto up down
Schematic Diagrams - Power
Schematic Diagrams - Shift Lock System
Schematic Diagrams - Starting System
Schematic Diagrams - Stop Lamps
Schematic Diagrams - Sunroof System
Schematic Diagrams - Supplemental Restraint System(SRS)
Schematic Diagrams - Surround View Monitor System
Schematic Diagrams - Tail, Parking
Schematic Diagrams - Tailgate Opener System
Schematic Diagrams - Turn
Schematic Diagrams - Vehicle Speed System
Schematic Diagrams - Ventilation Seat Control System
Schematic Diagrams - Wiper
Schematic Diagrams - Wireless Power Charger System
