Kobelco CKE700 Parts Catalog S3GG13002ZO

Kobelco CKE700 Parts Catalog S3GG13002ZO

Size: 131.39 MB
Brand: Kobelco
Machine: Crawler Crane
Document: Parts Catalog
Machine Model: Kobelco CKE700 Crawler Crane
Engine: J08ETM-KSFA
Part Number: S3GG13002ZO

List of Files:

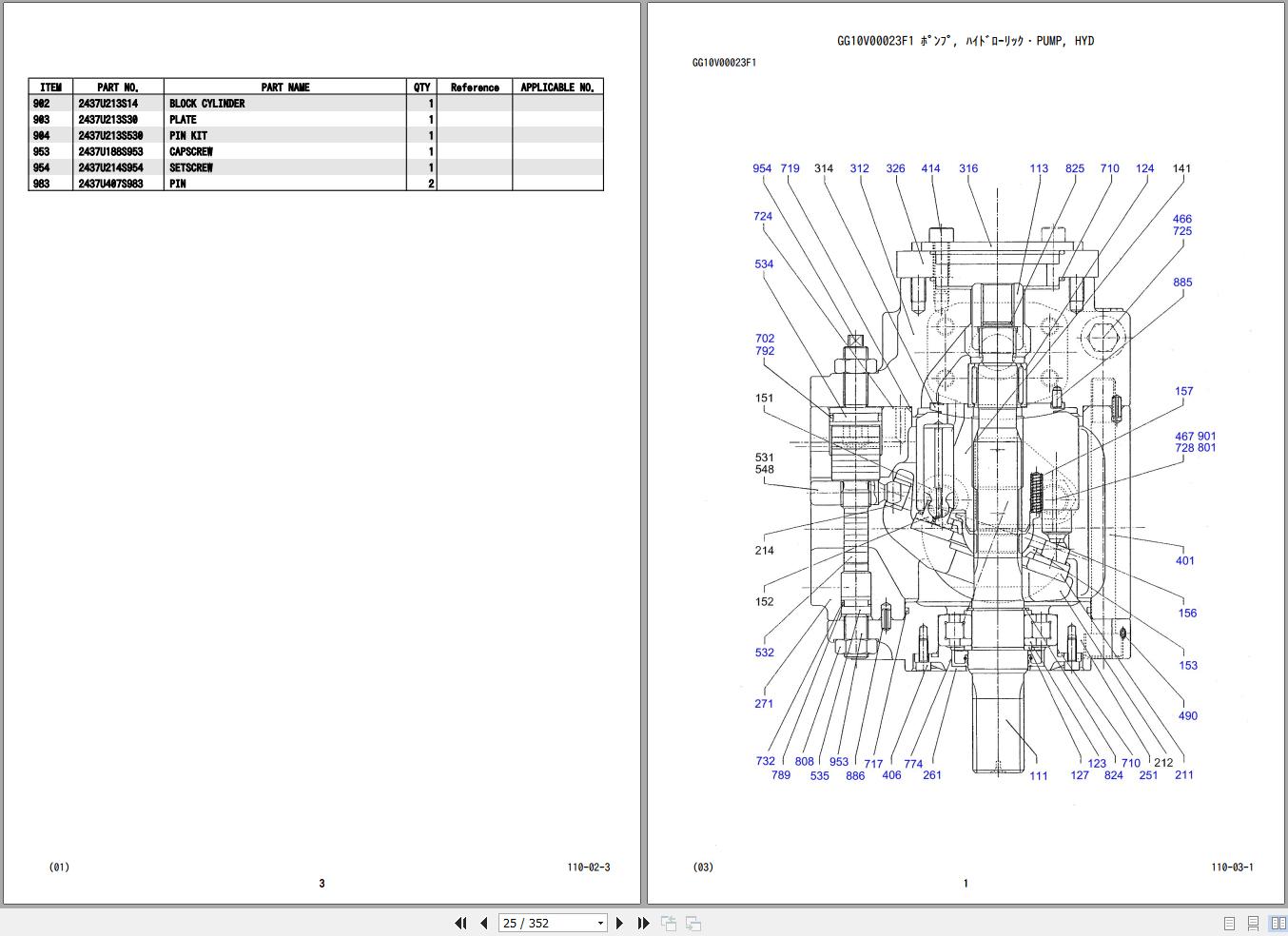

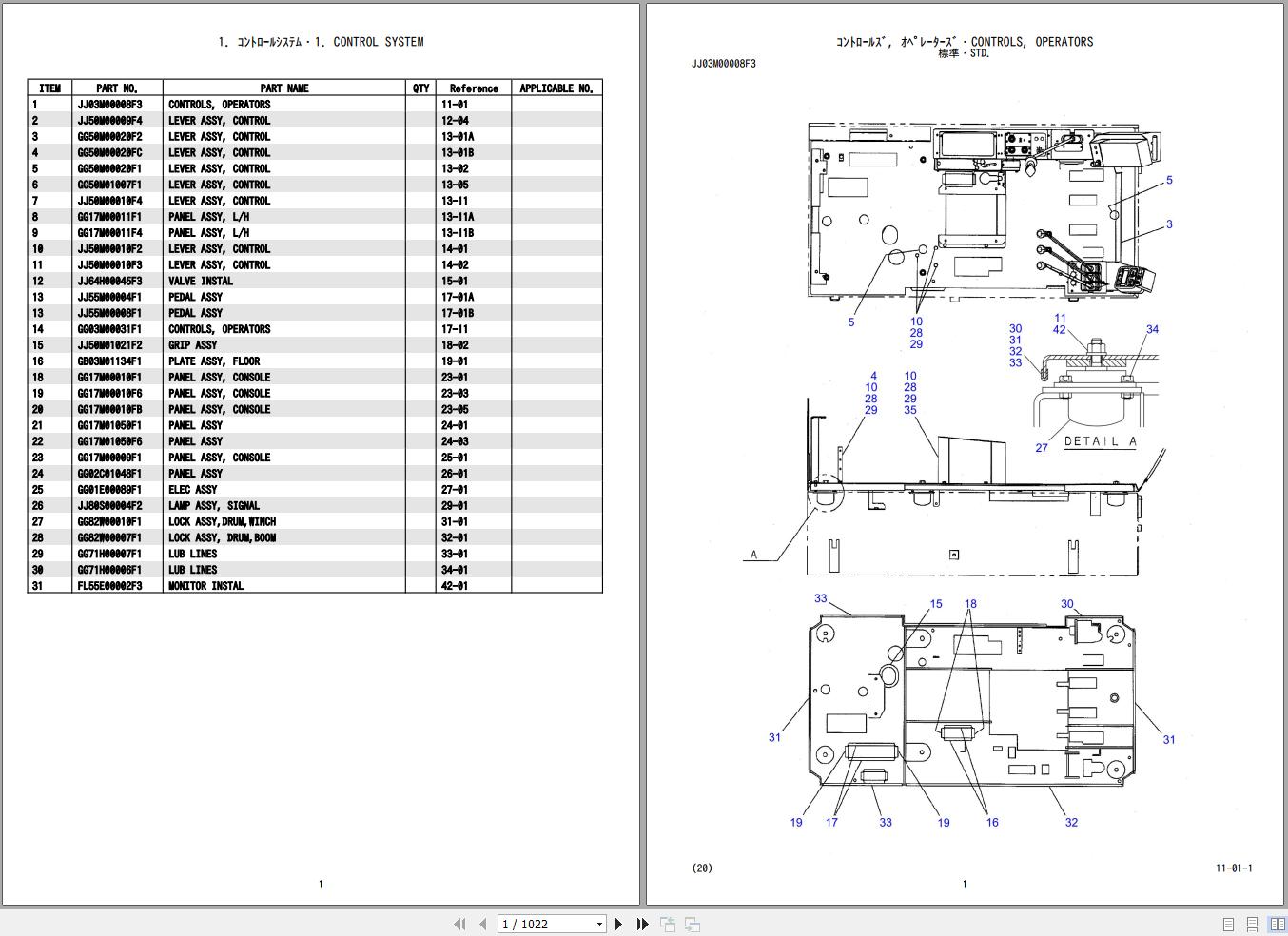

Kobelco Crawler Crane CKE700 Parts Catalog S3GG13002ZO.pdf
1. Control System
2. Winch System (Without Free Fall)
3. Winch System (With Free Fall)
4. Boom Winch System
5. Swing System
6. Lines
7. Power Plant
8. Electric System
9. Cab
10. Guard / Cover / Platform
11. Lower System
12. Crane Attachment
13. Gantry
14. Tagline & Reeving Winch(Opt.)
15. Third (Opt.)
16. Safety Device
17. Counterweight / Frame
18. Label
19. Others
20. OPT

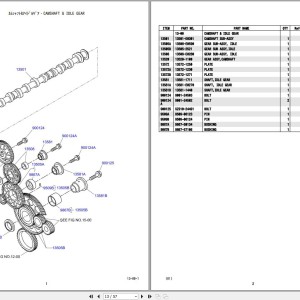

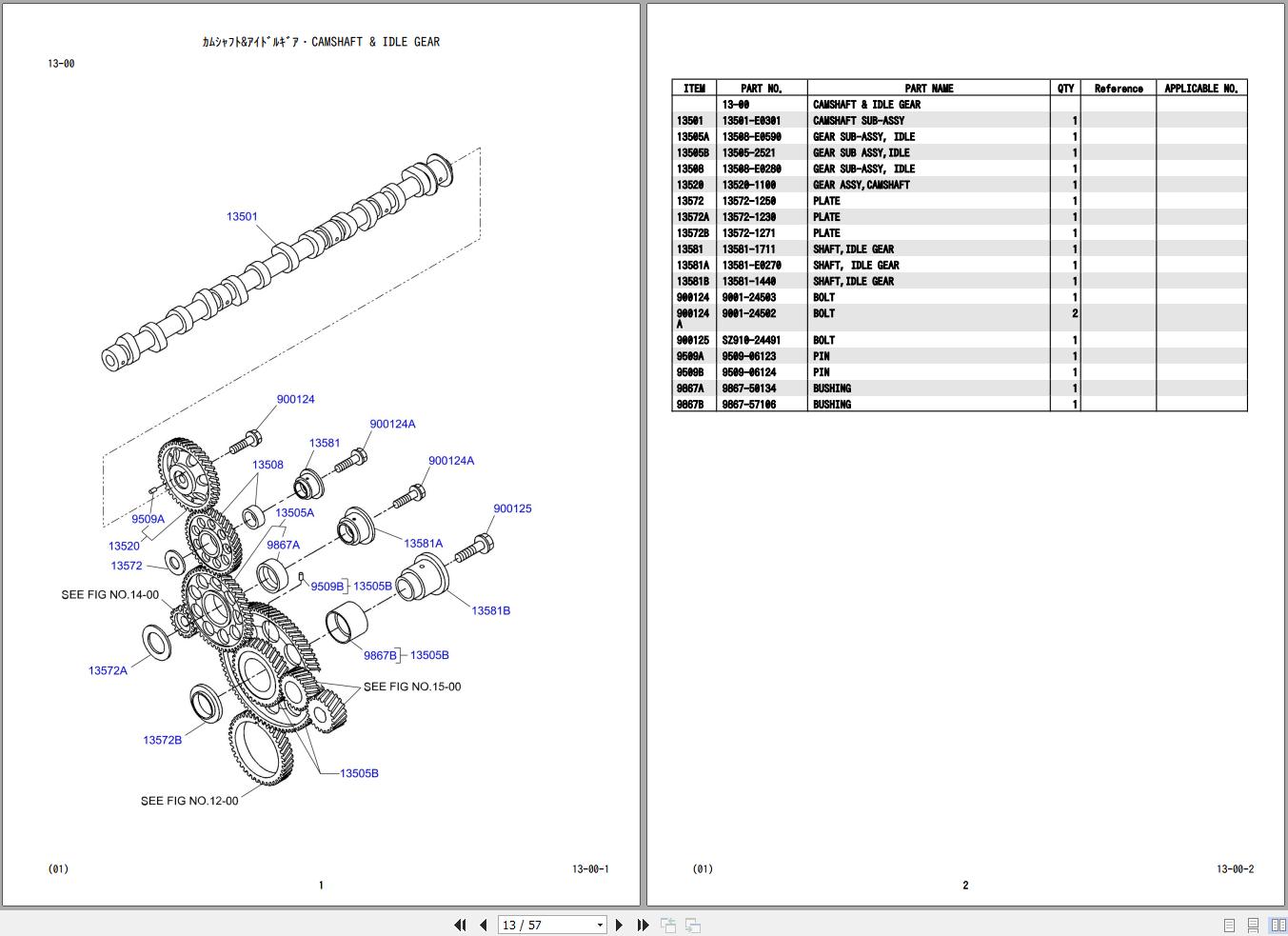

Hino Engine J08ETM-KSFA Parts Catalog.pdf
Cylinder Head
Cylinder Block
Timing Gear Cover & Flywheel Housing
Main Moving Parts
Camshaft & Idle Gear
Valve System
Air Intake & Exhaust System
Lubrication Sysytem
Oil Filter
Oil Cooler
Fuel System
Fuel Filter
Holder, Nozzle
Common-Rail
Cooling System
Electrical Parts
Turbocharger
Engine Accessory Parts
Alternator
Starting Motor
Gasket Kit (Engine Overhaul)
Kobelco CKE700 Hydraulic Components Parts Catalog S3JJ04101ZO.pdf
1. Pump Group
2. Motor Group
3. Cylinder Group
4. Valve Group
5. Others Group
