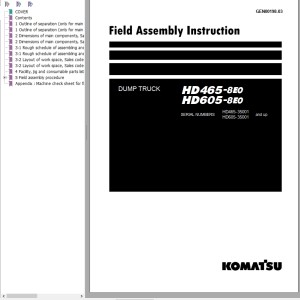

Komatsu HD465-8E0 HD605-8E0 Field Assembly Instruction GEN00198-03

Komatsu HD465-8E0 HD605-8E0 Field Assembly Instruction GEN00198-03

Size: 10.2 MB
Machine: Dump Truck
Machine Model: HD465-8E0 HD605-8E0
Serial Number: 35001 and up
Publication Date: 06.2021
Page: 87 Pages
Form Number: GEN00198-03

The Bookmarks of Komatsu HD465-8E0 HD605-8E0 Dump Truck Field Assembly Instruction:
COVER
Contents
1 Outline of separation (only for main components). Sales code:7HC61
1 Outline of separation (only for main components), Sales code:7HC62
2 Dimensions of main components, Sales code: 7HC61
2 Dimensions of main components, Sales code: 7HC62
3-1 Rough schedule of assembling and welding (for normal disassembly packing), Sales code: 7HC61
3-1 Rough schedule of assembling and welding (for normal disassembly packing), Sales code: 7HC62
3-2 Layout of work space, Sales code: 7HC61
3-2 Layout of work space, Sales code: 7HC62
4 Facility, jig and consumable parts list
5 Field assembly procedure
Appendix: Machine check sheet for field assembly
