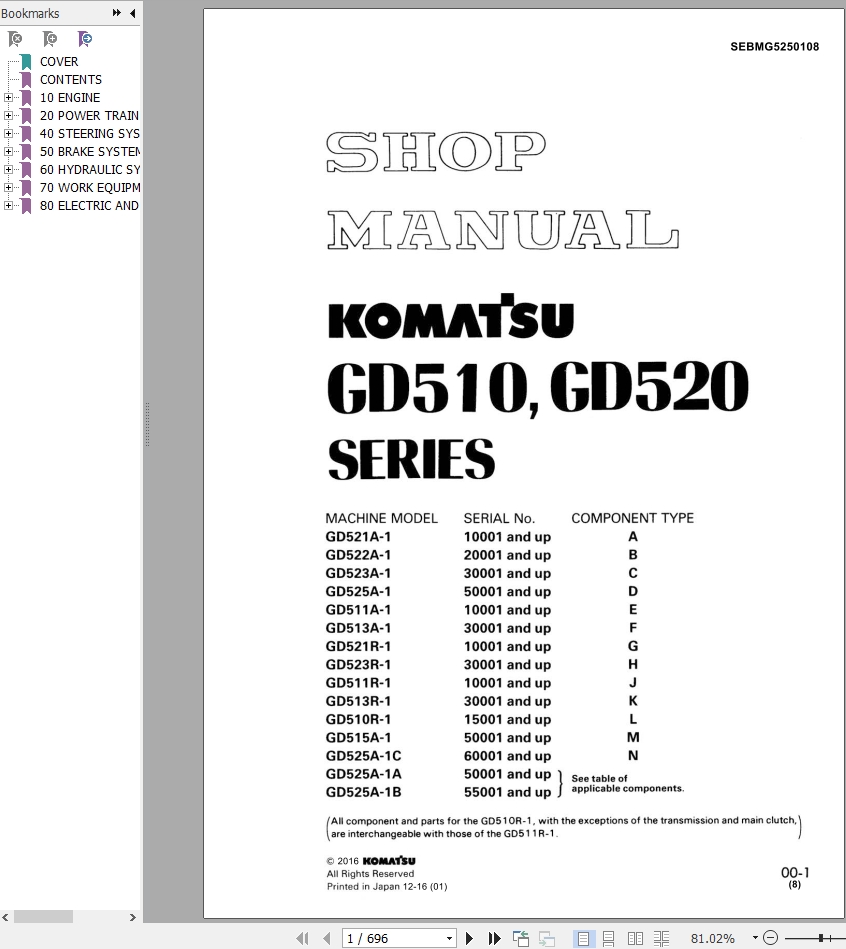

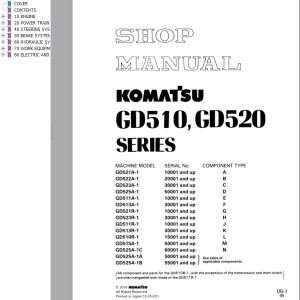

Komatsu GD510 GD520 Series Shop Manual SEBMG5250108

Komatsu GD510 GD520 Series Shop Manual SEBMG5250108

Size: 36.4 MB
Machine: Motor Grader
Machine Model:
GD521A-  1000  and up
GD522A-  2000  and up
GD523A-  3000  and up
GD525A-  5000  and up
GD511A-  1000  and up
GD513A-  3000  and up
GD521R-  1000  and up
GD523R-  3000  and up
GD511R-  1000  and up
GD513R-  3000  and up
GD510R-  1500  and up
GD515A-  5000  and up
GD525A-1C 6000  and up
GD525A-1A 5000  and up
GD525A-1B 5500  and up
Publication Date: 12.2016
Page: 696 Pages
Form Number: SEBMG5250108

The Bookmarks of Komatsu GD510 GD520 Series Motor Grader Shop Manual:
Contents
10 Engine
 12 Testing And Adjusting
 13 Disassembly And Assembly
20 Power Train
 21 Structure And Function
 22 Testing Adjusting
 23 Disassembly And Assembly
 24 Maintenance Standard
40 Steering System
 41 Structure And Function
 42 Testing And Adjusting
43 Disassembly And Assembly
 44 Maintenance Standard
50 Brake System
 51 Structure And Function
 52 Testing And Adjusting
 53 Disassembly And Assembly
 54 Maintenance Standard
60 Hydraulic System
 61 Structure And Function
 63 Disassembly And Assembly
 64 Maintenance Standard
70 Work Equipment
 71 Structure And Function
 72 Testing And Adjusting
 73 Disassembly And Assembly
 74 Maintenance Standard
80 Electric And Electronic System
 81 Structure And Function
 82 Testing And Adjusting
