Komatsu HD1500-8E0 Field Assembly Manual GEN00229-02
Size: 157.23 MB
Machine: Articulated Dump Truck
Machine Model: HD1500-8E0
Serial Number: 85001 and up
Publication Date: 05 2022
Page: 311 Pages
Part Number: GEN00229-02

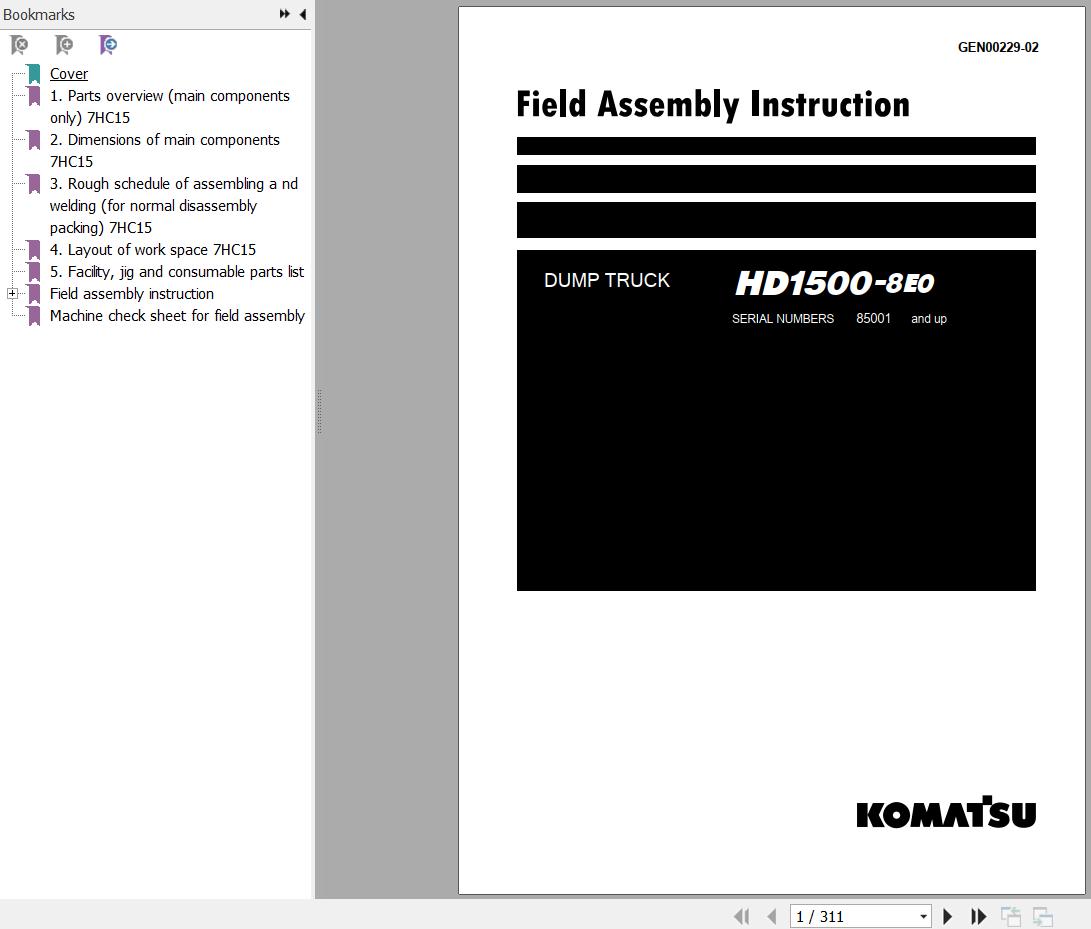

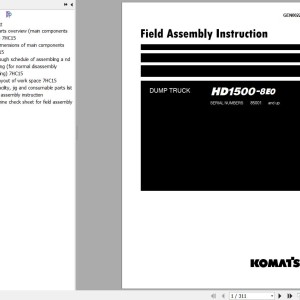

The Bookmarks of Komatsu HD1500-8E0 Articulated Dump Truck Field Assembly Manual:
Cover
1. Parts Overview (Main Components Only) 7hc15
2. Dimensions Of Main Components 7hc15
3. Rough Schedule Of Assembling A Nd Wekling (For Normal Disassembly Packing) 7hc15
4. Layout Of Work Space 7hc15
5. Facdity, Jig And Consumable Parts List
Field Assembly Instruction
Machine Check Sheet For Field Assembly
