Komatsu HD325-7 HD405-7 Field Assembly Manual GEN00045-08
Size: 2.79 MB
Machine: Articulated Dump Truck
Machine Model: HD325-7 HD405-7
Serial Number:
HD325- 7001-7025
HD325- 7101 and up
HD405- 3001-3035
HD405- 7101 and up
Publication Date: 09 2022
Page: 79 Pages
Part Number: GEN00045-08

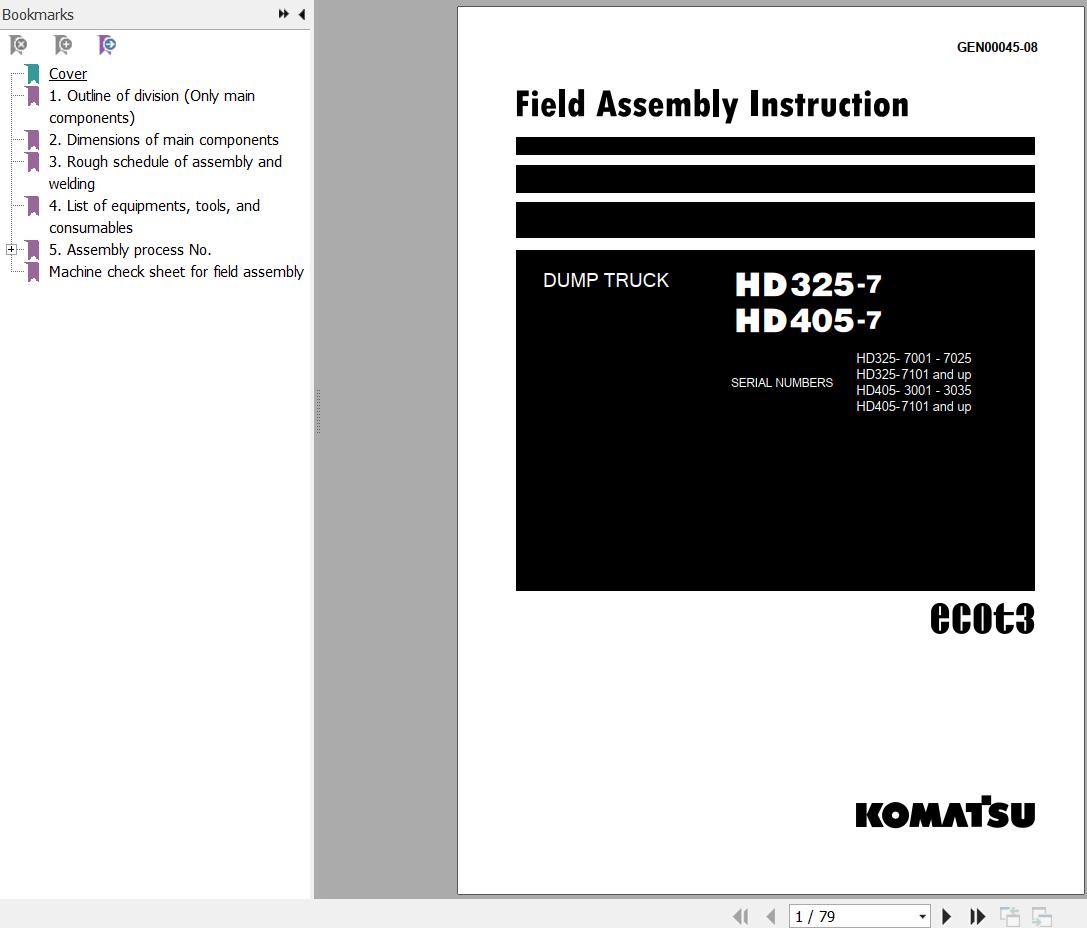

The Bookmarks of Komatsu HD325-7 HD405-7 Articulated Dump Truck Field Assembly Manual:
Cover
1. Outline Of Division (Only Main Components)
2. Dimensions Of Main Components
3. Rough Schedule Of Assembly And Welding
4. List Of Equipments, Tools. And Consumables

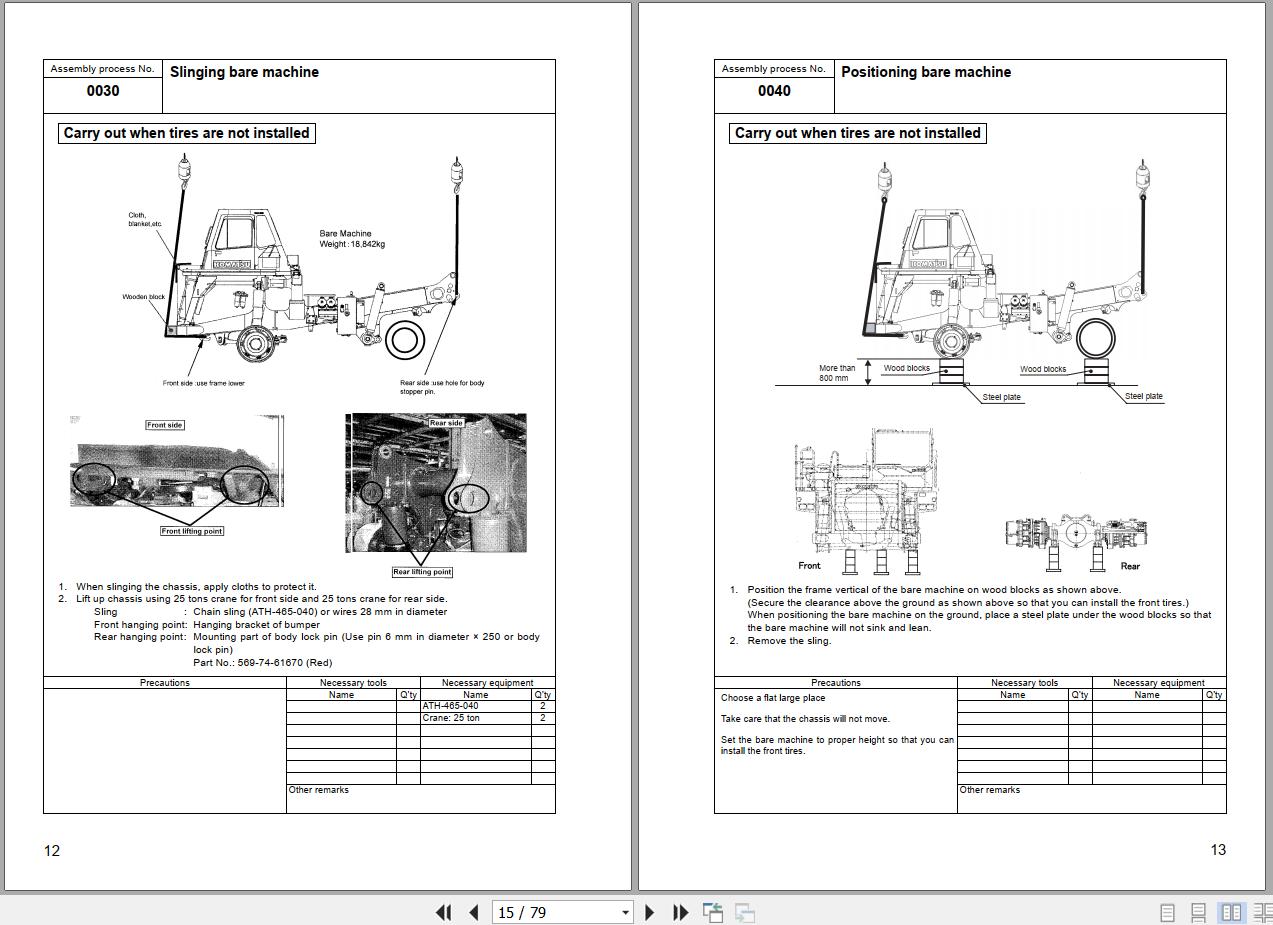

5. Assembly Process No.
Machine Check Sheet For Field Assembly
