Komatsu HD465-7E0 HD605-7E0 Field Assembly Manual GEN00046-11

Komatsu HD465-7E0 HD605-7E0 Field Assembly Manual GEN00046-11

Size: 6.97 MB
Machine: Articulated Dump Truck
Machine Model: HD465-7E0 HD605-7E0
Serial Number:
HD465-10001-10037
HD465-10101 and up
HD605-8001-8032
HD605-10101 and up
Publication Date: 09 2022
Page: 123 Pages
Part Number: GEN00046-11

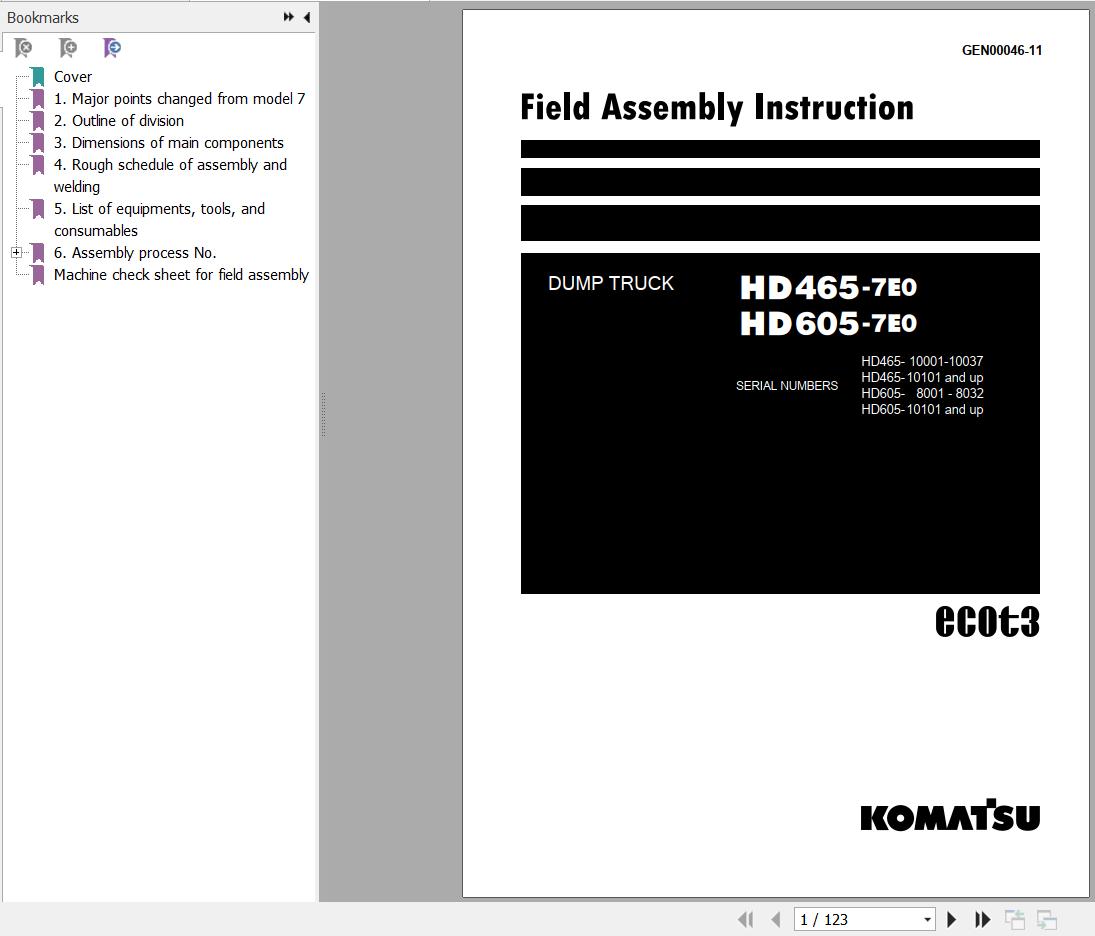

The Bookmarks of Komatsu HD465-7E0 HD605-7E0 Articulated Dump Truck Field Assembly Manual:
Cover
1. Major Points Changed From Model 7
2. Outline Of Division
3. Dimensions Of Main Components
4. Rough Schedule Of Assembly And Wekiing
5. List Of Equipments, Tools, And Consumables
6. Assembly Process No.
Machine Check Sheet For Fieki Assembly
