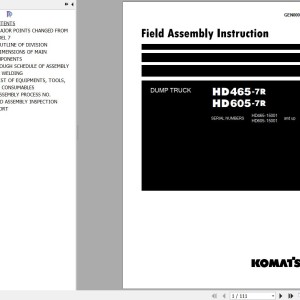

Komatsu HD465-7R HD605-7R Field Assembly Manual GEN00071-04

Komatsu HD465-7R HD605-7R Field Assembly Manual GEN00071-04

Size: 4.99 MB
Machine: Articulated Dump Truck
Machine Model: HD465-7R HD605-7R
Serial Number:
HD465-15001 and up
HD605-15001 and up
Publication Date: 09 2022
Page: 111 Pages
Part Number: GEN00071-04

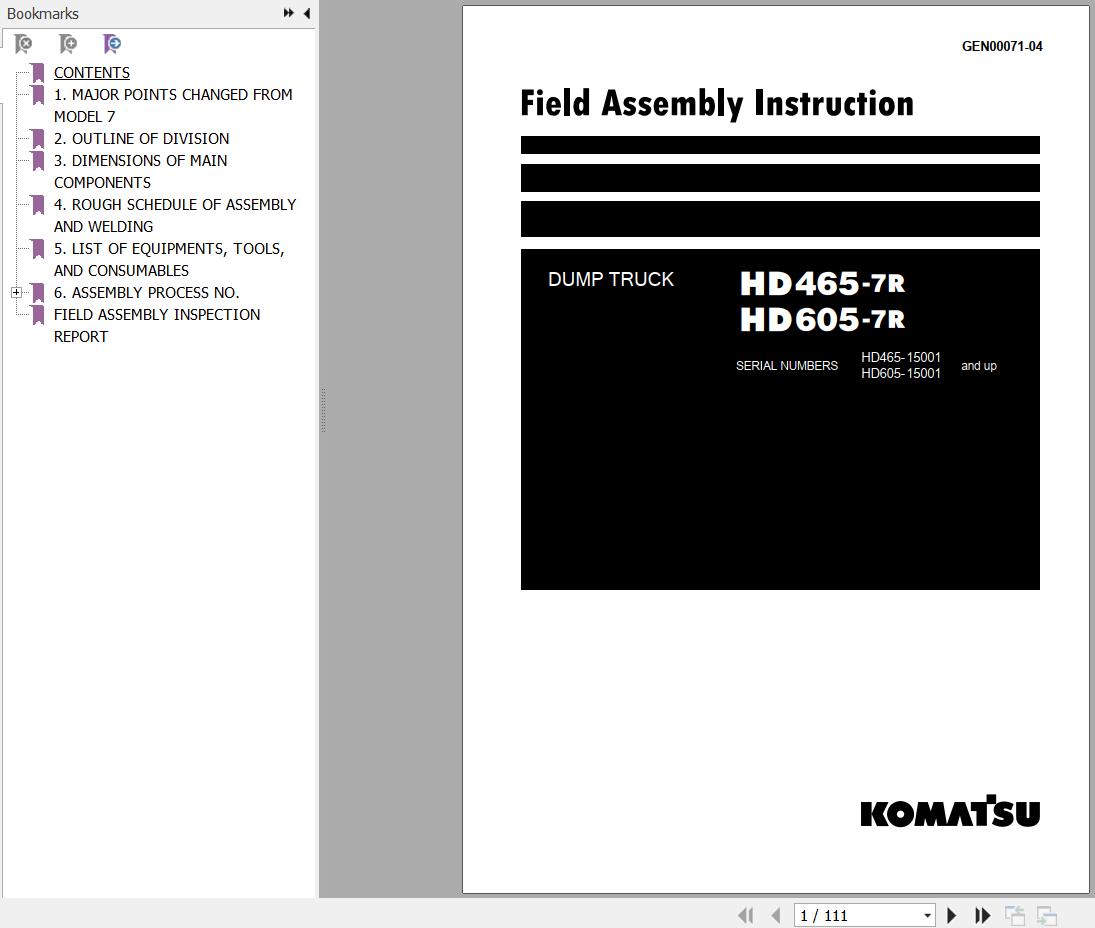

The Bookmarks of Komatsu HD465-7R HD605-7R Articulated Dump Truck Field Assembly Manual:
Contents
1. Major Points Changed From Model 7
2. Outline Of Division
3. Dimensions Of Main Components
4. Rough Schedule Of Assembly And Welding
5. List Of Equipments, Tools, And Consumables
6. Assembly Process No.
Field Assembly Inspection Report
