Komatsu HD465-8 HD605-8 Field Assembly Manual GEN00153-09

Komatsu HD465-8 HD605-8 Field Assembly Manual GEN00153-09

Size: 10.82 MB
Machine: Articulated Dump Truck
Machine Model: HD465-8 HD605-8
Serial Number:
HD465-30001 and up
HD605-30001 and up
Publication Date: 12 2022
Page: 91 Pages
Part Number: GEN00153-09

The Bookmarks of Komatsu HD465-8 HD605-8 Articulated Dump Truck Field Assembly Manual:

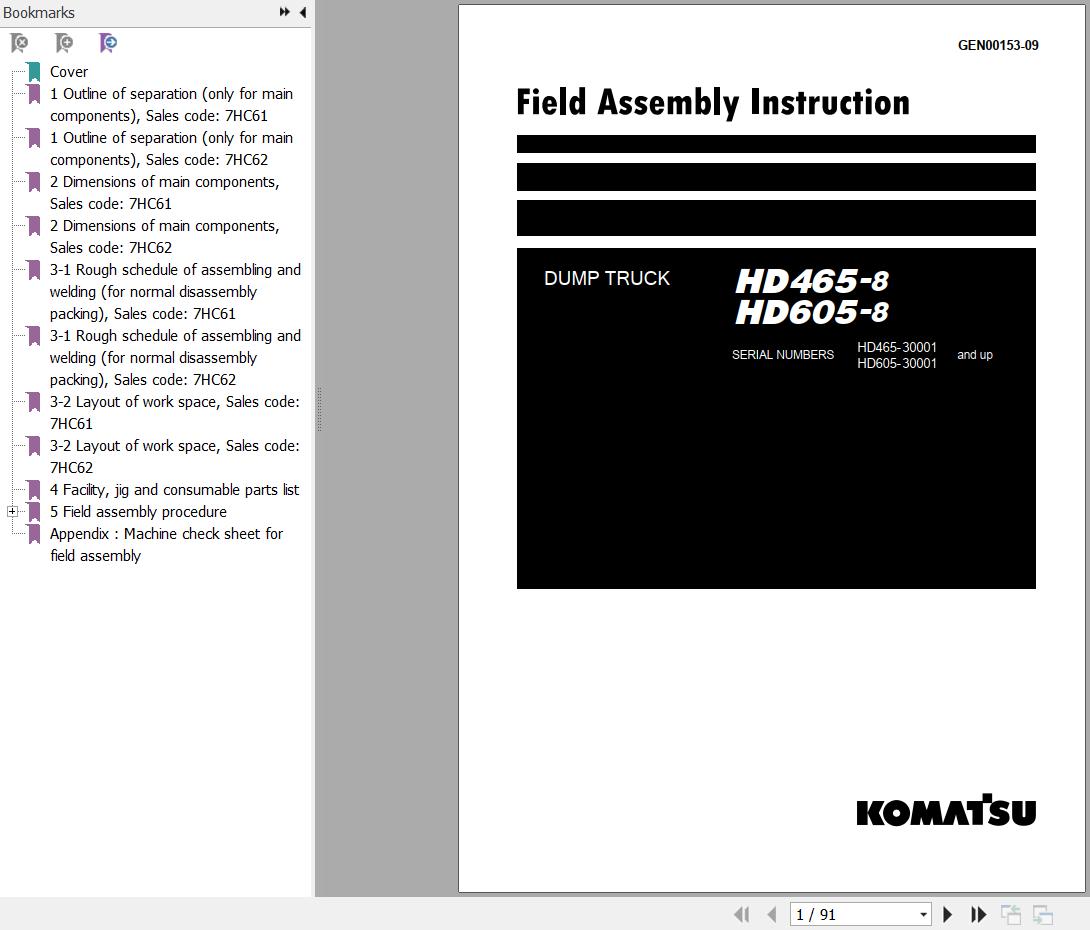

Cover
1 Outline Of Separation (Only For Main Components), Sales Code: 7hcbl
1 Outline Of Separation (Only For Main Components), Sales Code: 7hc62
2 Dimensions Of Main Components, Sales Code: 7hc61
2 Dimensions Of Main Comoonents. Sales Code: 7hc62
3-1 Rough Schedule Of Assembling And Wekiing (For Normal Disassembly Packing), Sales Code: 7hc61
3-1 Rough Schedule Of Assembling And Welding (For Normal Disassembly Packing), Sales Code: 7hc62

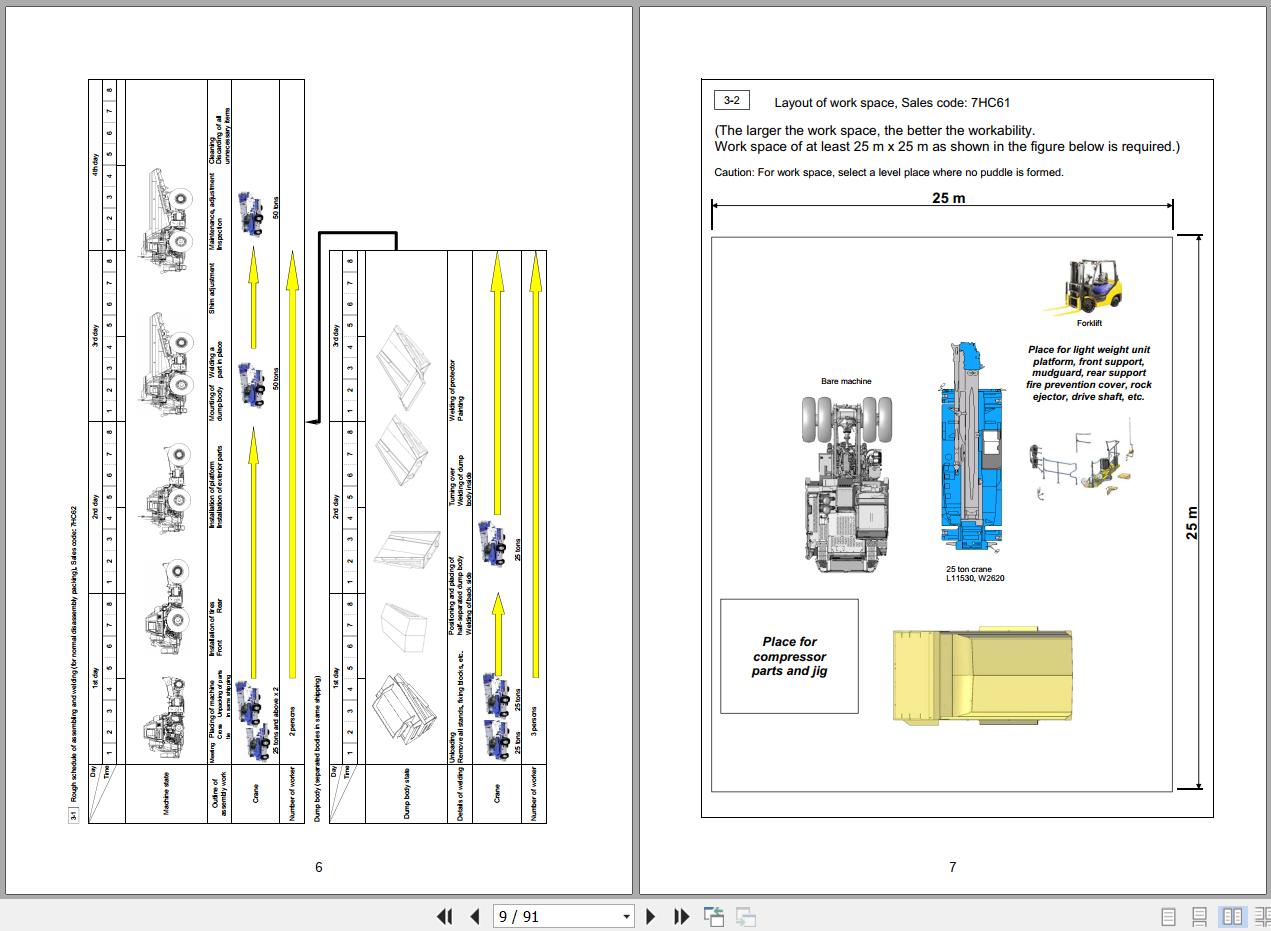

3-2 Layout Of Work Space, Sales Code: 7hc61
3-2 Layout Of Work Space, Sales Code: 7hc62
4 Facility, Jig And Consumable Parts List
5 Field Assembly Procedure
Appendix : Machine Check Sheet For Field Assembly
