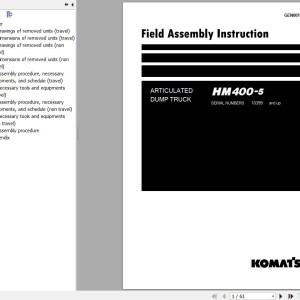

Komatsu HM400-5 Field Assembly Manual GEN00163-08
Size: 5.83 MB
Machine: Articulated Dump Truck
Machine Model: HM400-5
Serial Number: 10399 and up
Publication Date: 06 2022
Page: 61 Pages
Part Number: GEN00163-08
The Bookmarks of Komatsu HM400-5 Articulated Dump Truck Field Assembly Manual:

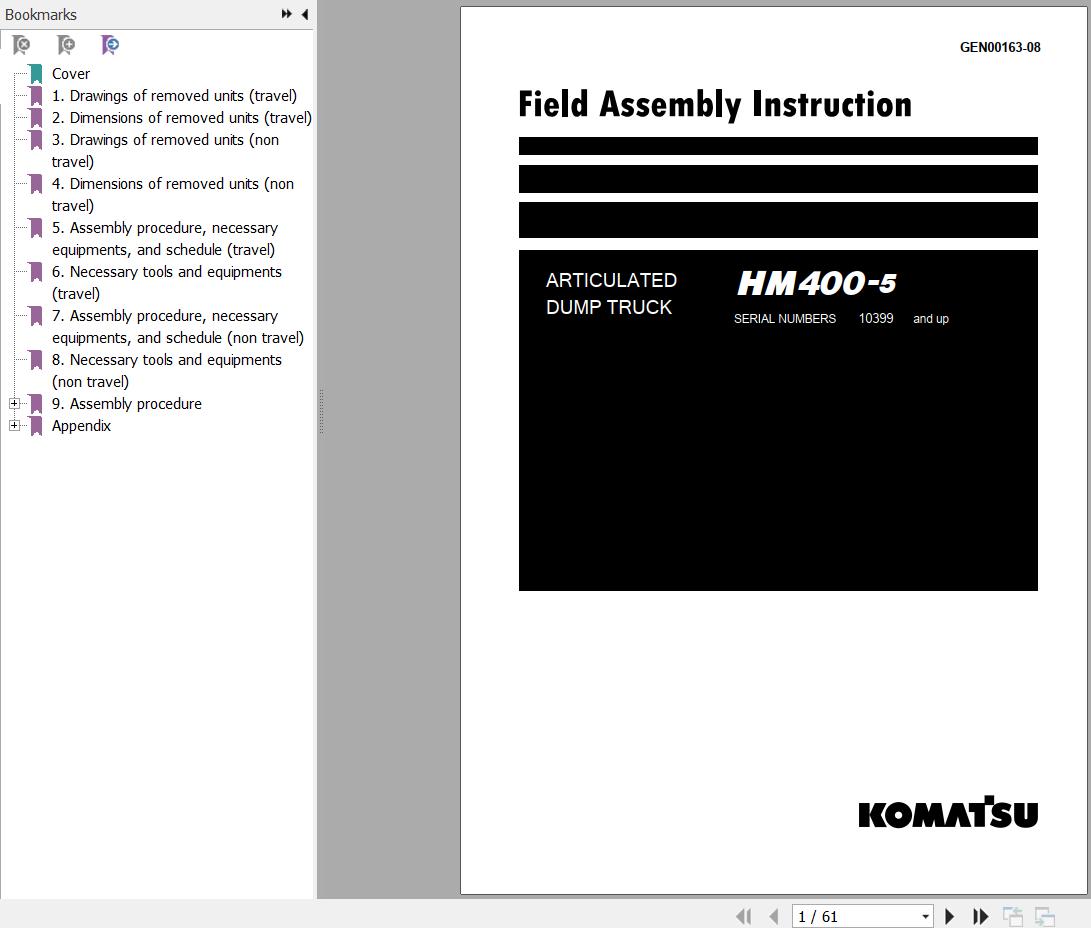

COver
1. Drawings Of Removed Units (Travel)
2. Dimensions Of Removed Units (Travel)
3. Drawings Of Removed Units (Non Travel)
4. Dimensions Of Removed Units (Non Travel)
5. Assembñ’ Orocedure. Necessary Eauioments. And Schedule (Travel)
6. Necessary Tools And Equipments (Travel)
7. Assembly Procedure, Necessary Equipments, And Schedule (Non Travel)
8. Necessary Tools And Equipments (Non Travel)

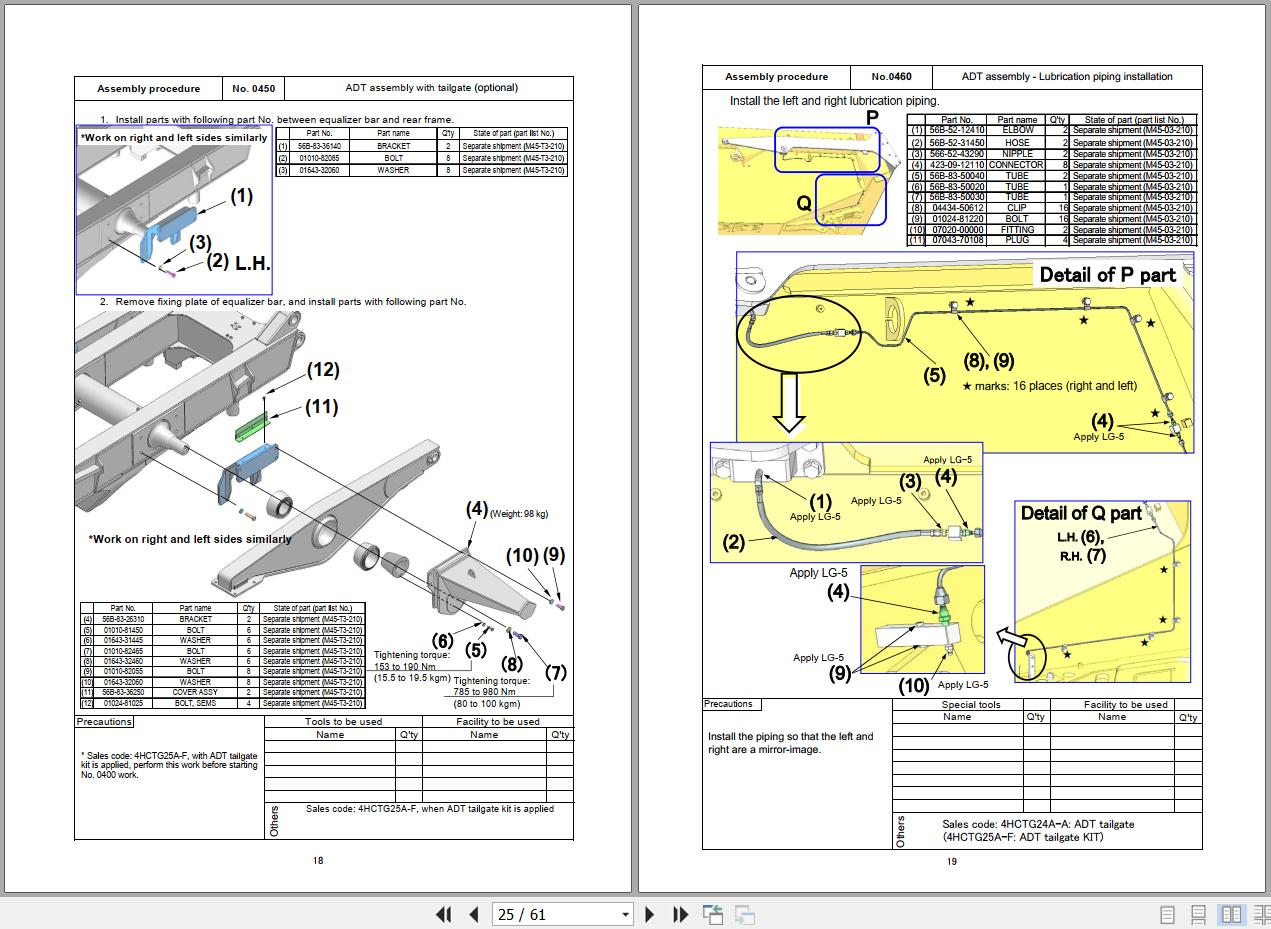

9. Assembly Procedure
Appendix
