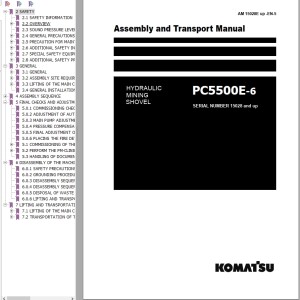

Komatsu PC5500E-6 Field Assembly Instructions GZEFA15028-5

Komatsu PC5500E-6 Field Assembly Instructions GZEFA15028-5

Size: 77.1 MB
Machine: Hydraulic Mining Shovel
Machine Model: PC5500E-6
Serial Number: 15028 and up
Pages: 487 Pages
Form Number: GZEFA15028-5

The Bookmarks of Komatsu PC5500E-6 Hydraulic Mining Shovel Field Assembly Instruction:
2 Safety
  2.1 Safety Information
  2.2 Overview
  2.3 Sound Pressure Level In The Operator’S Cab.
  2.4 General Precautions Common To Operation On The Excavator
  2.5 Precaution For Maintenance
  2.6 Additional Safety Information For Troubleshooting And Adjustments
  2.7 Special Safety Equipment
  2.8 Additional Safety Precautions
3 General
1 3.1 General
1 3.2 Assembly Site Requirements
  3.3 Ufting Of The Main Components
  3.4 General Installation Procedures For Hydrauuc Hose Unes
4 Assembly Sequence
5 Final Checks And Adjustments
  5.0.1 Commissioning Check Ust
  5.0.2 Adjustment Of Automatic Lubrication Systems
  5.0.3 Main Pump Adjustment In Relation To Altitude At The Mine Site
  5.0.4 Pressure Compensation Of Sealed Components
  5.0.5 Final Adjustment Of Slew Angle Warning System
  5.0.6 Placing The Fire Detection And Suppression System In Service
  5.1 Commissioning Of The Air Conditioning
  5.2 Perform The Pm-Cunic Procedure According To The Pm-Clinic Procedure Manual
  5.3 Handung Of Documentation After Assembly And Commissioning
6 Disassembly Of The Machine
  6.0.1 Safety Precautions For Disassembling The Machine
  6.0.2 Grounding Procedure Of The High Voltage System
  6.0.3 Disassembly Sequence Of Face Shovel Machines
  6.0.4 Disassembly Sequence Of Backhoe Machines
  6.0.5 Disposal Of Waste Material
  6.0.6 Ufting And Transportation Of Main Components
7 Ufting And Transportation Of Main Components
  7.1 Lifting Of The Main Components
  7.2 Transportation Of The Main Components
