Komatsu PC200-6 Part Book

Komatsu PC200-6 Part Book

Size: 27.0 MB
Machine: Crawler Excavators
Machine Model: PC200-6
Serial Number: NL10001 and up
Publication Date: 2005
Page: 370 Pages

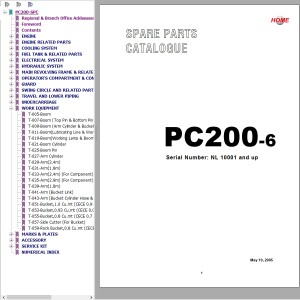

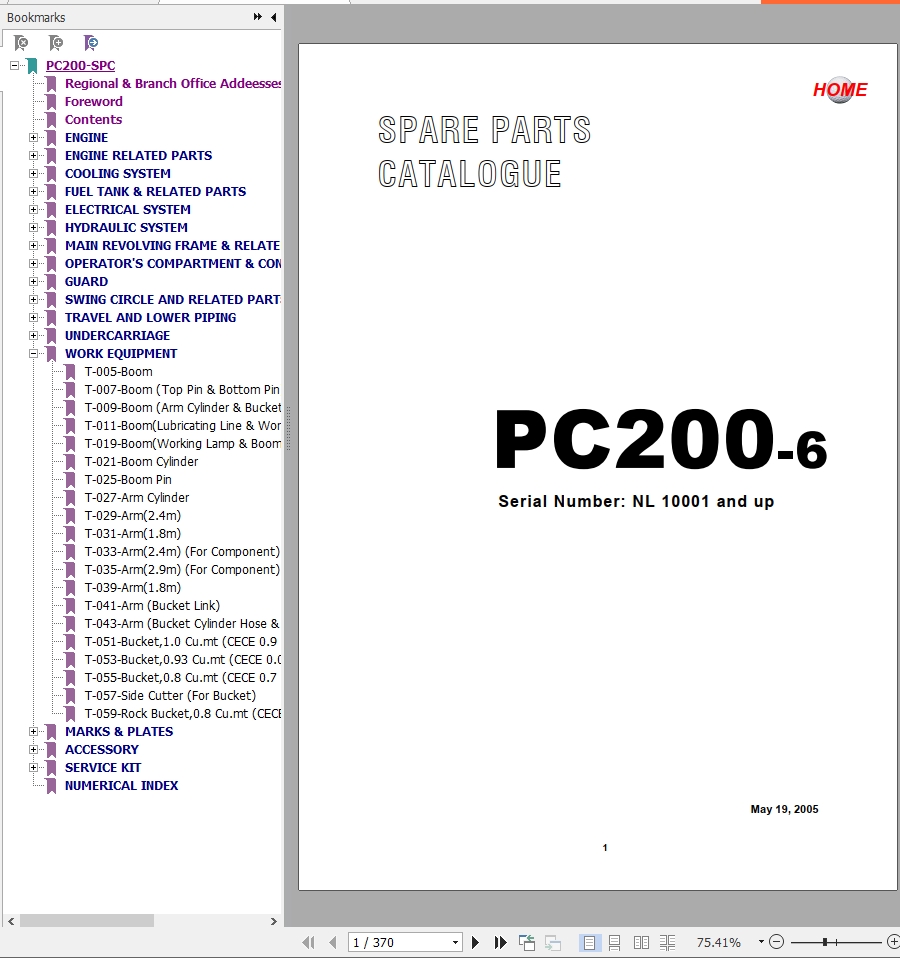

The Bookmarks of Komatsu PC200-6 Crawler Excavators Part Book:
Regional & Branch Office Addeesses
Foreword
Contents
Engine
Engine Related Parts
Cooling System
Fuel Tank & Related Parts
Electrical System
Hydraulic System
Main Revolving Frame & Related Parts
Operators Compartment & Control System
Guard
Swing Circle And Related Parts
Travel And Lower Piping
Undercarriage
Work Equipment
 T-005-Boom
 T-007-Boom (Top Pin & Bottom Pin)
 T-009-Boom (Arm Cylinder & Bucket Cylinder Line)
 T-011-Boom(Lubricating Line & Working Lamp Harness)
 T-019-Boom(Working Lamp & Boom Foot Lubricating)
 T-021-Boom Cylinder
 T-025-Boom Pin
 T-027-Arm Cylinder
 T-029-Arm(2.4m)
 T-031-Arm(1.8m)
 T-033-Arm(2.4m) (For Component)
 T-035-Arm(2.9m) (For Component)
 T-039-Arm(1.8m)
 T-041-Arm (Bucket Link)
 T-043-Arm (Bucket Cylinder Hose & Spacer)
 T-051-Bucket,1.0 Cu.mt (CECE 0.9 Cu.mt), 1330MM (Vertical Pin Type)
 T-053-Bucket,0.93 Cu.mt (CECE 0.08 Cu.mt), 1200MM (Horczontal Pin Type)
 T-055-Bucket,0.8 Cu.mt (CECE 0.7 Cu.mt), 1045MM (Horizontal Pin Type)
 T-057-Side Cutter (For Bucket)
 T-059-Rock Bucket,0.8 Cu.mt (CECE), 1200MM (Horizontal Pin Type)
Marks & Plates
Accessory
Service Kit
Numerical Index
