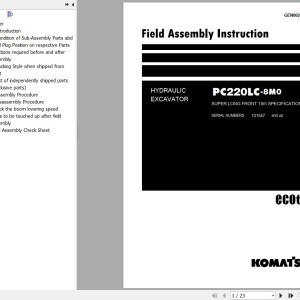

Komatsu PC220LC-8M0 Super Long Front Field Assembly Manual GEN00258-00
Size: 2.65 MB
Machine: Hydraulic Excavator Super Long Front
Machine Model: PC220LC-8M0
Serial Number: 101547 and up
Publication Date: 09 2022
Page: 23 Pages
Part Number: GEN00258-00

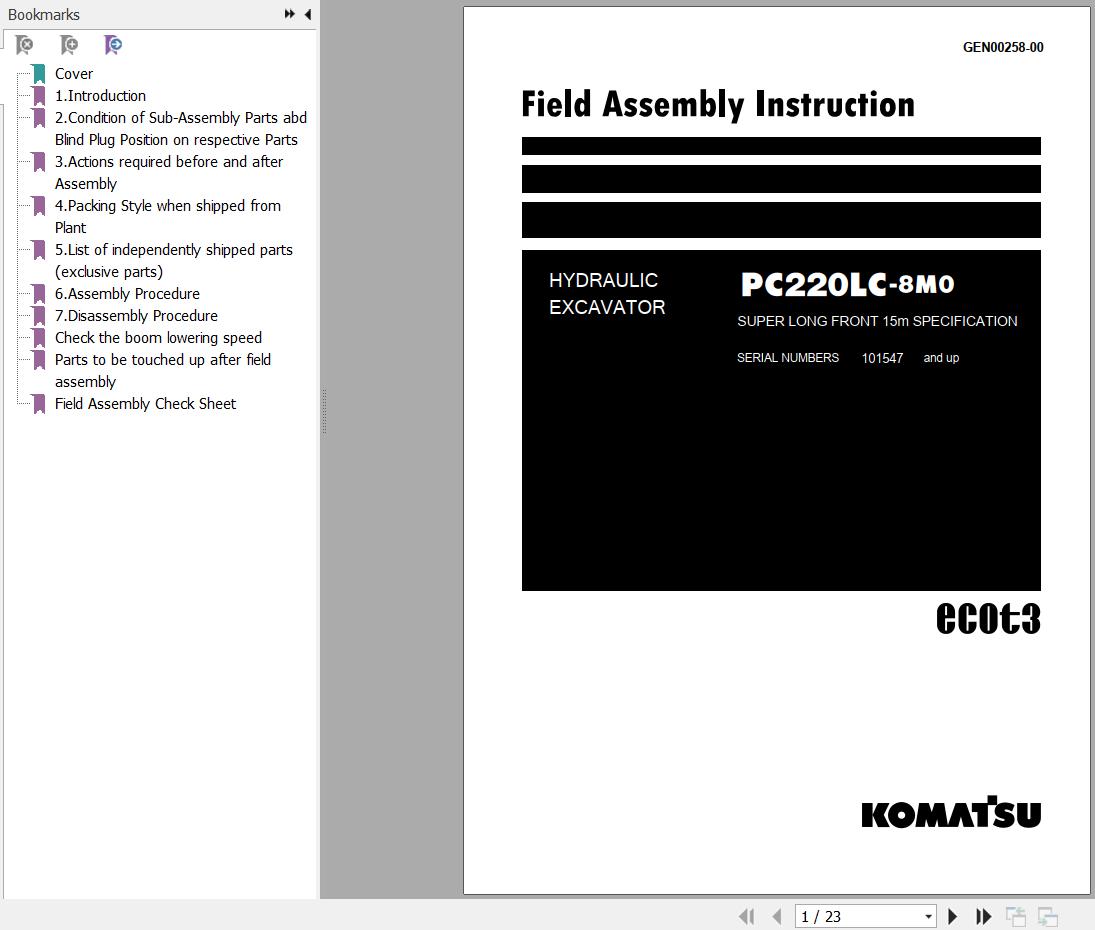

The Bookmarks of Komatsu PC220LC-8M0 Hydraulic Excavator Super Long Front Field Assembly Manual:
Cover
1. Introduction
2.Condition Of Sub-Assembly Parts Abd Blind Plug Position On Respective Parts
3.Actions Required Before And After Assembly
4.Packing Style When Shipped From Plant
5.List Of Independently Shipped Parts (Exclusive Parts)

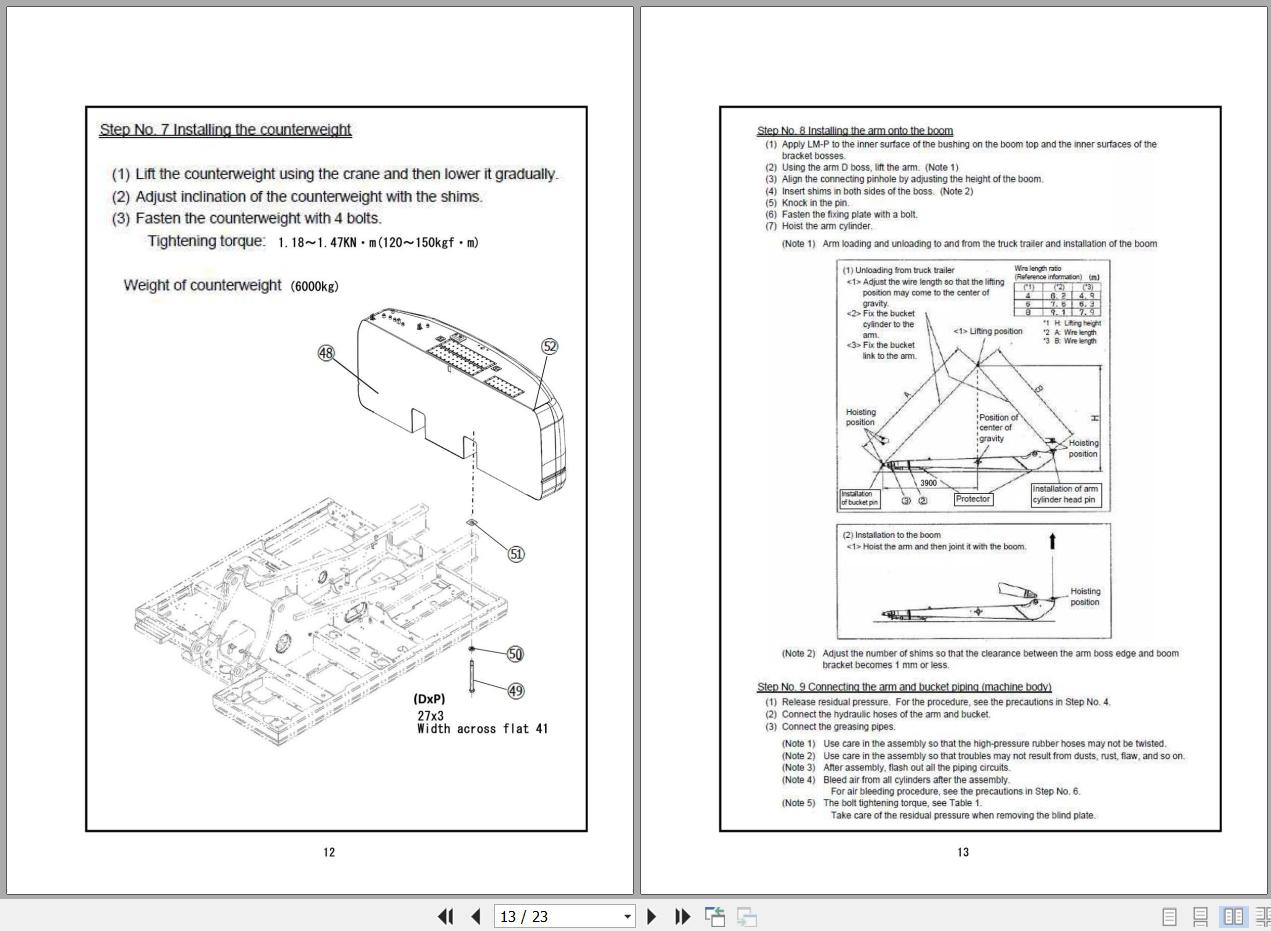

6.Assembly Procedure
7. Disassembly Procedure
Check The Boom Lowering Speed
Parts To Be Touched Up After Field Assembly
Field Assembly Check Sheet
