Komatsu PC450LCD-7K-E0 27M High Reach Demolition K45086 Up Spare Parts Catalog

Komatsu PC450LCD-7K-E0 27M High Reach Demolition K45086 Up Spare Parts Catalog

Size: 4.67 MB
Machine: Excavator
Machine Model: PC450LCD-7K-E0 27M High Reach Demolition
Serial Number: K45086 Up
Page: 159 Pages

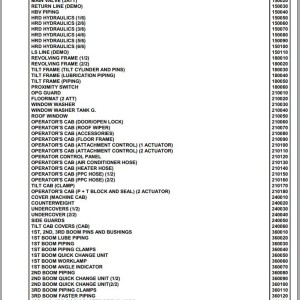

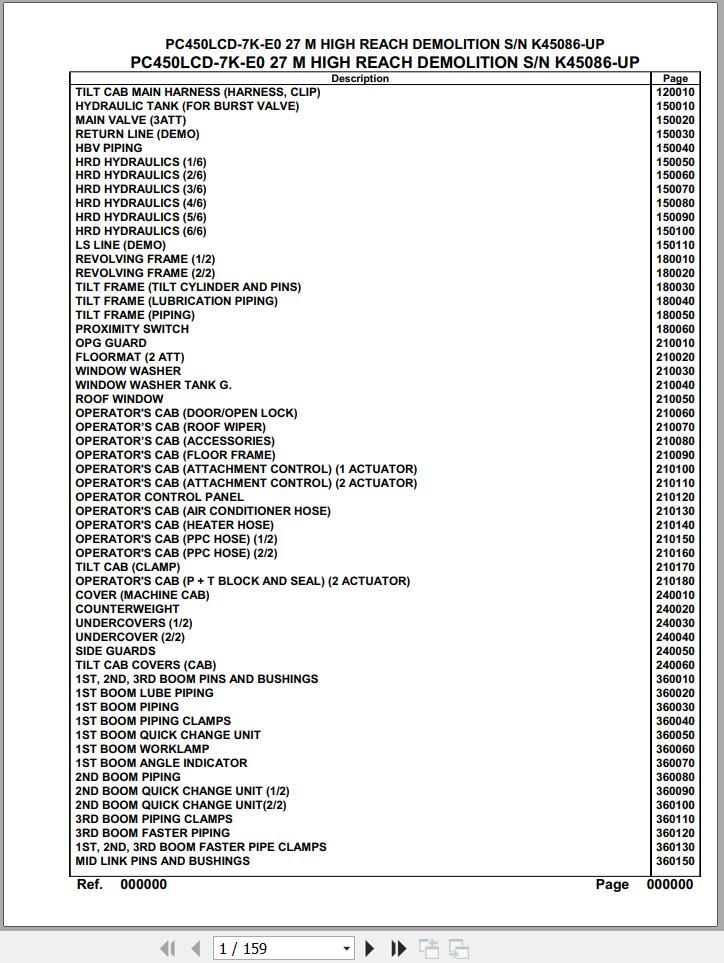

The Bookmarks of Komatsu PC450LCD-7K-E0 27M High Reach Demolition K45086 Up Spare Parts Catalog:
Tilt Cab Main Harness (Harness, Clip)
Hydraulic Tank (For Burst Valve)
Main Valve (3att)
Return Une (Demo)
Hbv Piping
Hrd Hydraulics (1/6)
Hrd Hydraulics (216)
Hrd Hydraulics (316)
Hrd Hydraulics (4/6)
Hrd Hydraulics (5/6)

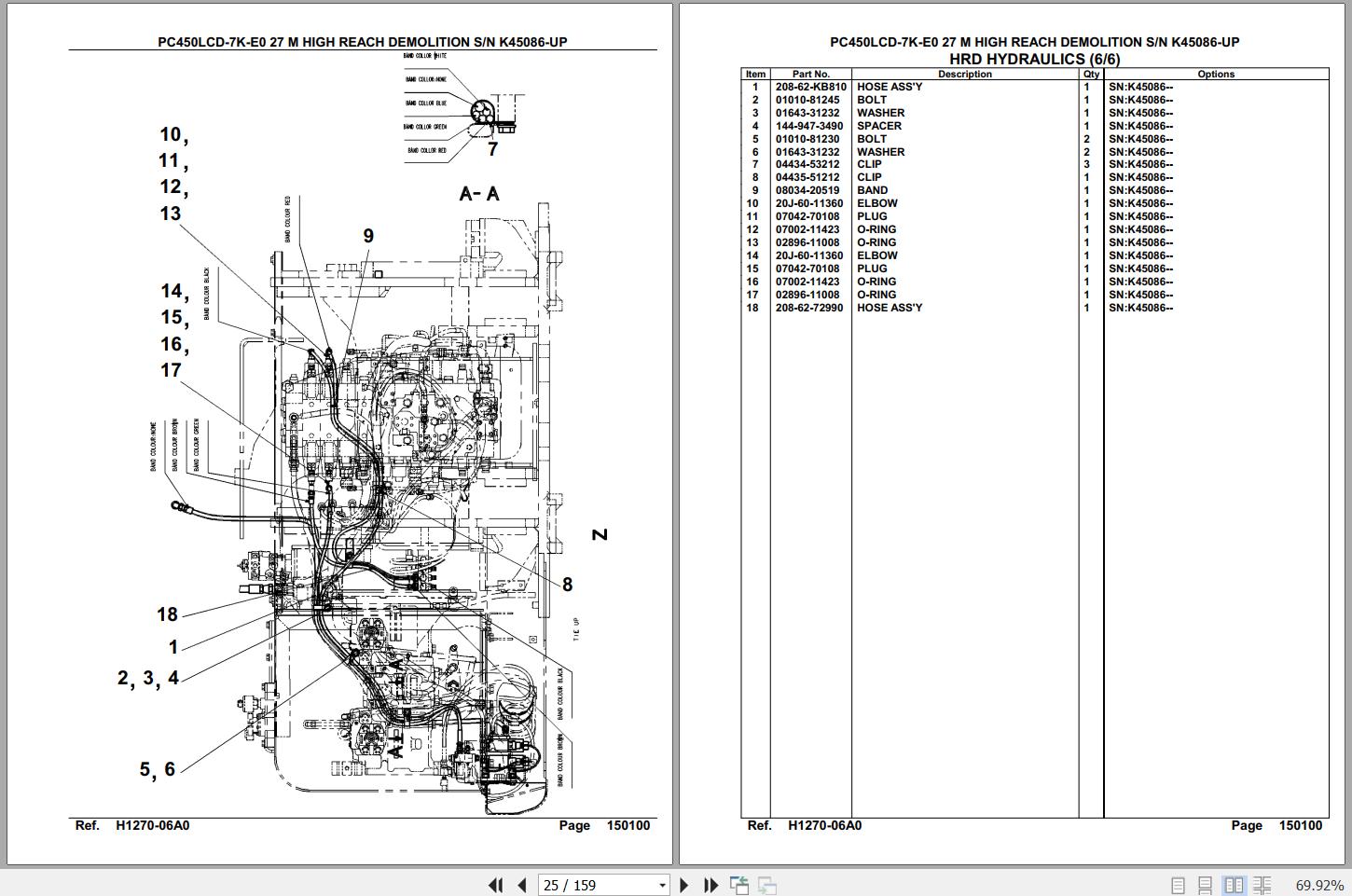

Hrd Hydraulics (6/6)
Ls Line (Demo)
Revolving Frame (1/2)
Revolving Frame (212)
Tilt Frame (Tilt Cylinder And Pins)
Tilt Frame (Lubrication Piping)
Tilt Frame (Piping)
Proximity Switch
Opg Guard
Floormat (2 Att)
Window Washer
Window Washer Tank G.
Roof Window
Operator’s Cab (Door/Open Lock)
Operator’s Cab (Roof Wiper)
Operator’s Cab (Accessories)
Operator’s Cab (Floor Frame)
Operator’s Cab (Attachment Control) (1 Actuator)
Operator’s Cab (Attachment Control) (2 Actuator)
Operator Control Panel
Operator’s Cab (Air Conditioner Hose)
Operator’s Cab (Heater Hose)
Operator’s Cab (Ppc Hose) (112)
Operator’s Cab (Ppc Hose) (2/2)
Tilt Cab (Clamp)
Operator’s Cab (P + T Block And Seal) (2 Actuator)
Cover (Machine Cab)
Counterweight
Undercovers (1/2)
Undercover (2/2)
Side Guards
Tilt Cab Covers (Cab)
1st, 2nd, 3rd Boom Pins And Bushings
1st Boom Lube Piping
1st Boom Piping
1st Boom Piping Clamps
1st Boom Quick Change Unit
1st Boom Worklamp
1st Boom Angle Indicator
2nd Boom Piping
2nd Boom Quick Change Unit (1/2)
2nd Boom Quick Change Unit(2/2)
3rd Boom Piping Clamps
3rd Boom Faster Piping
1st, 2nd, 3rd Boom Faster Pipe Clamps
Mid Link Pins And Bushings
Mid Link Piping
Arm Pins And Bushings
Link Pins And Bushings
Arm Piping
Mid Link And Arm Cylinder Sn Piping
Dig Boom
Dig Boom Piping
Arm 2.9m Piping
Arm 34m Piping
Transport Pin
High Reach Work Equipment Stands
Dig Boom Stand
Mid Link Cylinder Detail
Arm Cylinder
High Reach Attachment Cylinder (1x2)
High Reach Attachment Cylinder (22)
