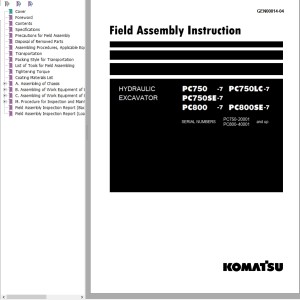

Komatsu PC750-7 PC750LC-7 PC750SE-7 PC800-7 PC800SE-7 Field Assembly Instruction GEN00014-04

Komatsu PC750-7 PC750LC-7 PC750SE-7 PC800-7 PC800SE-7 Field Assembly Instruction GEN00014-04

Size: 11.7 MB
Machine: Hydraulic Excavator
Machine Model: PC750-7 PC750LC-7 PC750SE-7 PC800-7 PC800SE-7
Serial Number:
PC750-20001 and up
PC800-40001 and up
Page: 160 Pages
Form Number: GEN00014-04

The Bookmarks of Komatsu PC750-7 PC750LC-7 PC750SE-7 PC800-7 PC800SE-7 Hydraulic Excavator Field Assembly Instruction:
Cover
Foreword
Contents
Specifications
Precautions For Field Assembly
Disposal Of Removed Parts
Assembling Procedures, Applicable Equipment And Schedule
Transportation
Packing Style For Transportation
List Of Tools For Field Assembling
Tightening Torque
Coating Materials List
A. Assembling Of Chassis
B. Assembling Of Work Equipment Of Backhoe
C. Assembling Of Work Equipment Of Loading Shovel
M. Procedure For Inspection And Maintenance After Completion Of Assembly
Field Assembly Inspection Report (Backhoe)
Field Assembly Inspection Report (Loading Shovel)
