Komatsu WD600-6R Field Assembly Manual GEN00143-03
Size: 11.23 MB
Machine: Wheel Dozer
Machine Model:WD600-6R
Serial Number: 60001 and up
Publication Date: 09 2022
Page: 83 Pages
Part Number: GEN00143-03

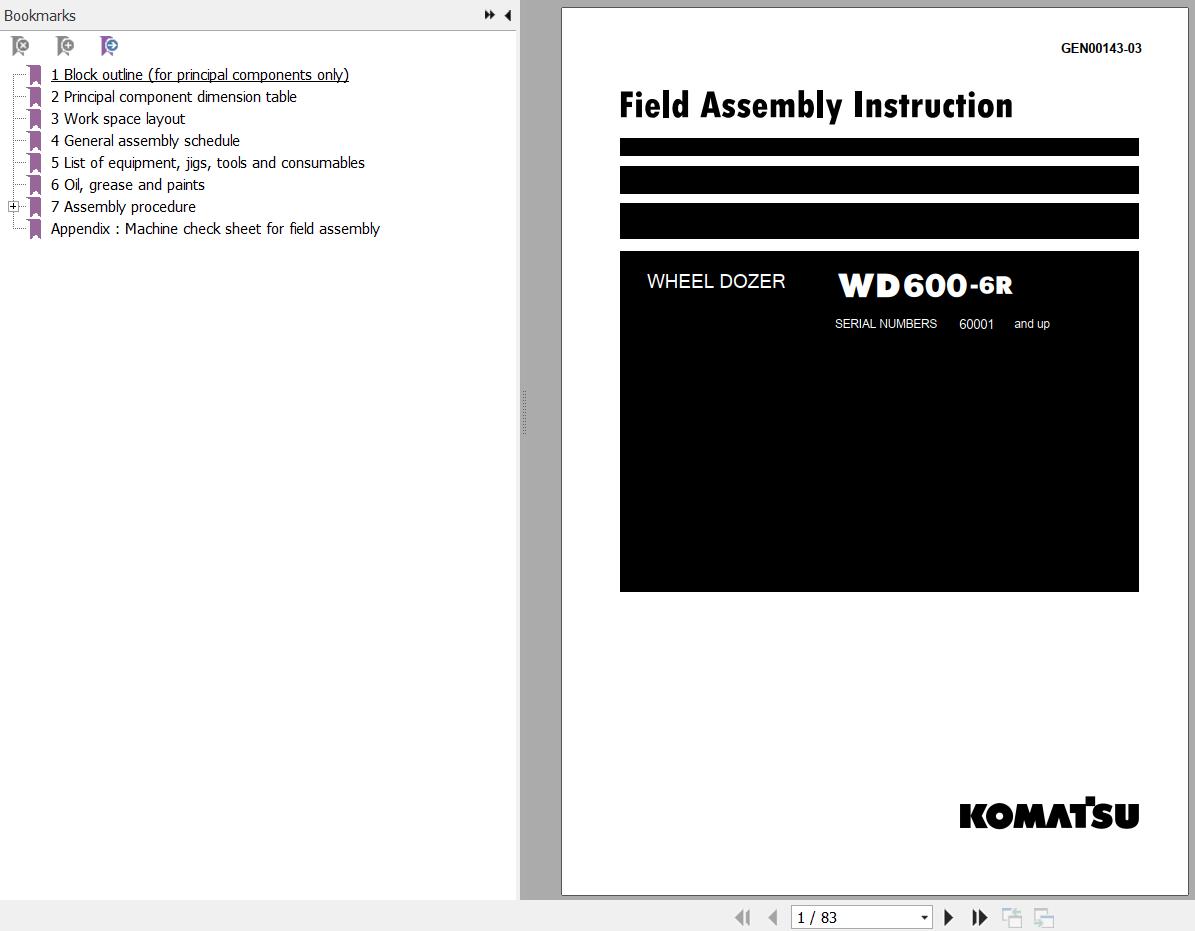

The Bookmarks of Komatsu WD600-6R Wheel Dozer Field Assembly Manual:
1 Block Outline (For Principal Components Only)
2 Principal Component Dimension Table
3 Work Space Layout
4 General Assembly Schedule
5 List Of Equipment, Jigs, Tools And Consumables
6 Oil, Grease And Paints

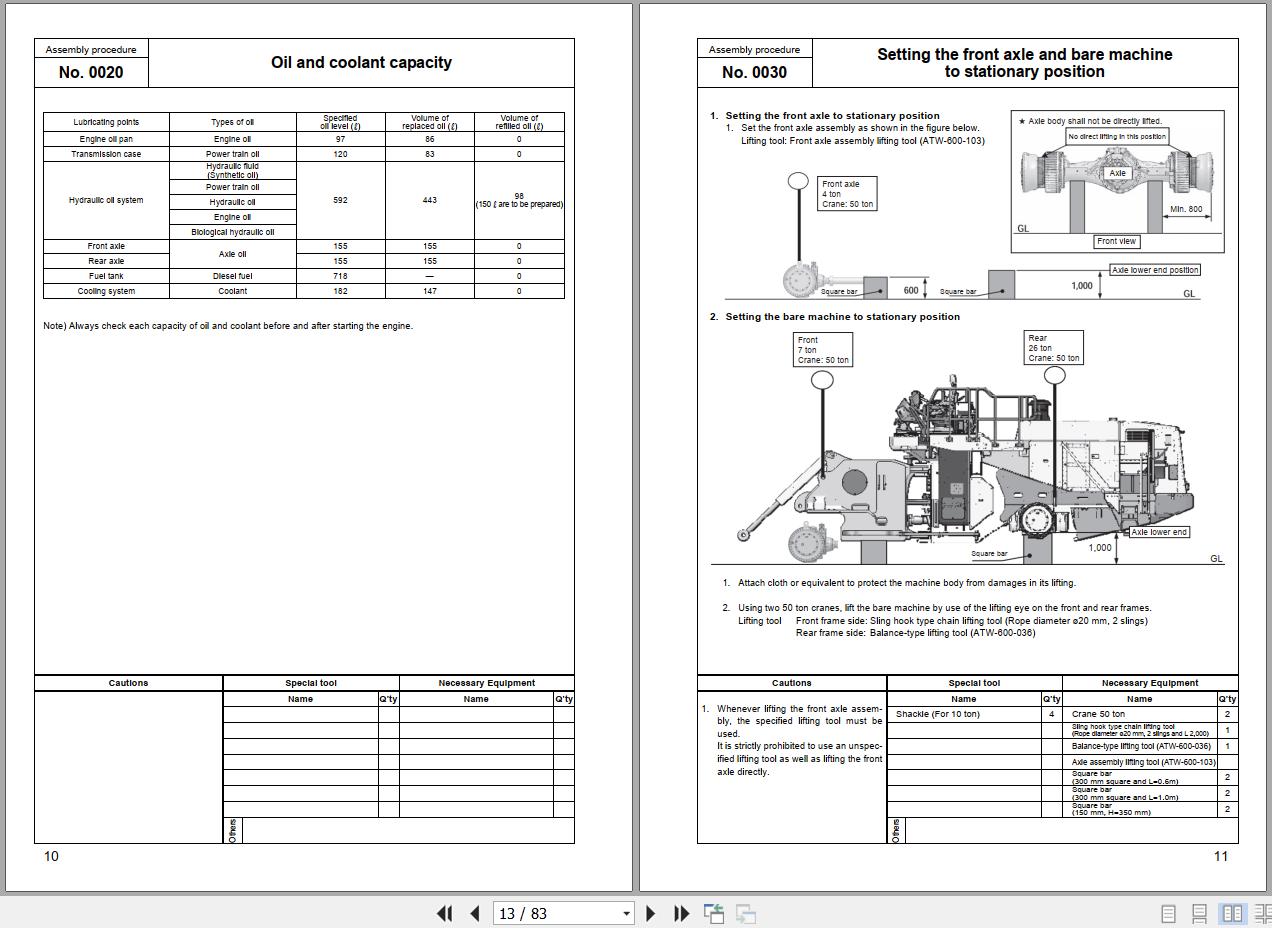

7 Assembly Procedure
Appendix : Machine Check Sheet For Field Assembly
