Laverda WWHU FF480 FF540 FF600 FF700 FF760 Freeflow Header Parts Catalog 3906492

Data Size: 13.84 MB
File Type: PDF
Language: English
Manufacturer: Laverda
Applicable Machine: Harvesting Attachment, Freeflow Header
Document: Parts Catalog
Machine Model: WWHU FF480, WWHU FF540, WWHU FF600, WWHU FF700, WWHU FF760
Book Number: 3906492
Page: 259 Pages

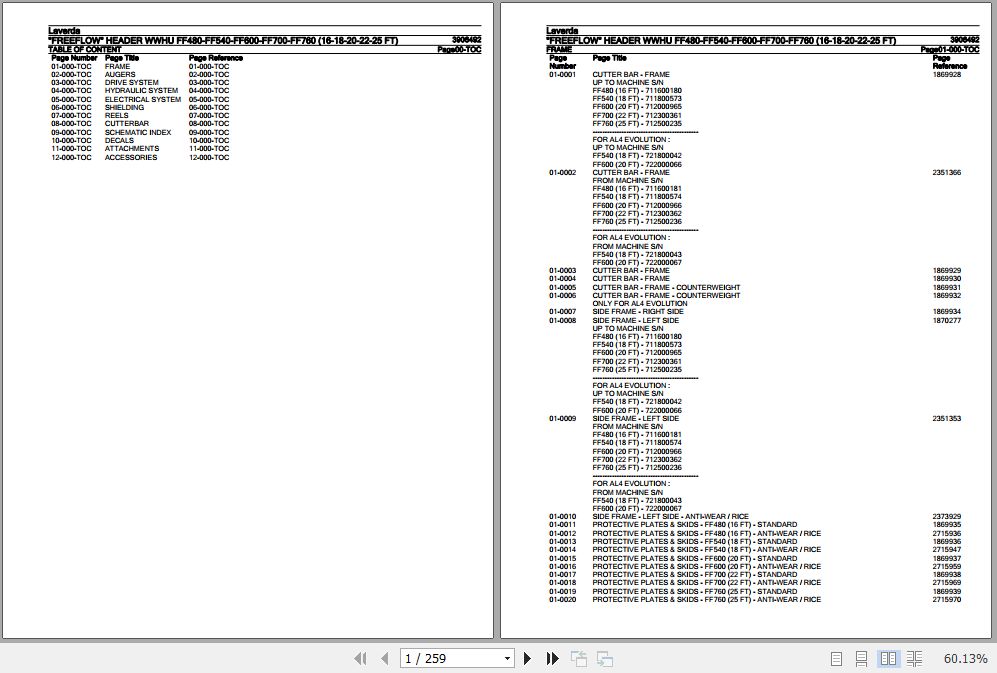

List Contents:

Frame
Cutter Bar - Frame
Cutter Bar - Frame - Counterweight

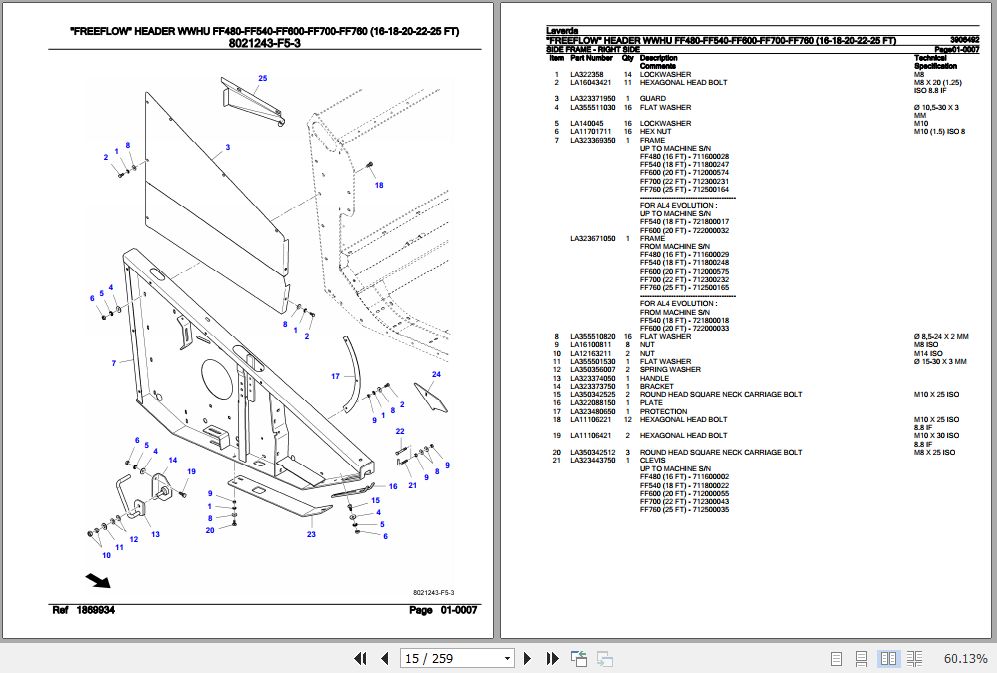

Side Frame - Right Side
Side Frame - Left Side
Protective Plates & Skids - Ff480 (16 Ft)
Protective Plates & Skids - Ff540 (18 Ft)
Protective Plates & Skids - Ff600 (20 Ft)
Protective Plates & Skids - Ff700 (22 Ft)
Protective Plates & Skids - Ff760 (25 Ft)
Augers
Feed Auger - Complete
Feed Auger - Housing
Feed Auger - Right Side - Ff480 (16 Ft)
Feed Auger - Right Side - Ff540 (18 Ft)
Feed Auger - Right Side - Ff600 (20 Ft)
Feed Auger - Right Side - Ff700 (22 Ft)
Feed Auger - Right Side - Ff760 (25 Ft)
Feed Auger - Left Side - Ff480 (16 Ft)
Feed Auger - Left Side - Ff540 (18 Ft)
Feed Auger - Left Side - Ff600 (20 Ft)
Feed Auger - Left Side - Ff700 (22 Ft)
Feed Auger - Left Side - Ff760 (25 Ft)
Feed Auger Control - Right Side
Feed Auger Control - Left Side
Feed Auger Control - Speed Drive
Drive System
Cardan Shaft
Cutting Table Drive Transmission
Cutting Table Drive Transmission - Grain
Cutting Table Drive Transmission - Rice
Hydraulic System
Hydraulic System - Ff480 (16 Ft)
Hydraulic System - Ff540 (18 Ft)
Hydraulic System - Ff600 (20 Ft)
Hydraulic System - Ff700 (22 Ft)
Hydraulic System - Ff760 (25 Ft)
Hydraulic System - Reel
Quick Hydraulic Couplers (Multi-Faster)
Electrical System
Electrical System - Ff480 (16 Ft)
Electrical System - Ff540 (18 Ft)
Electrical System - Ff600 (20 Ft)
Electrical System - Ff700 (22 Ft)
Electrical System - Ff760 (25 Ft)
Shielding
Protective Plate - Left Side
Dividers - Standard
Dividers - Torpedo
Dividers - Hoop
Dividers - Fixed Short
Upper Flow Dividers
Reels
Reel - Ff480 (16 Ft)
Reel - Ff540 (18 Ft)
Reel - Ff600 (20 Ft)
Reel - Ff700 (22 Ft)
Reel - Ff760 (25 Ft)
Reel
Reel - Right Side
Reel - Left Side
Cutterbar
Cutting Blade - Blade Drive Transmission
Cutting Blade - Knives & Fingers
Blade Finger Protection
Vertical Knives - Right Side - Rapeseed
Crop Lifters
Schematic Index
Groupes Schematic Index - Cutting Header
Groupes Schematic Index - Feed Auger
Groupes Schematic Index - Guards
Groupes Schematic Index - Reel
Decals
Decals - Safety
Attachments
Cutting Table Flotation
Accessories
Accessories - Feed Auger - Paddles
Accessories - Crop Lifters
Accessories - Reel Tines
Accessories - Dividers - Standard
Accessories - Dividers - Torpedo
Accessories - Dividers - Hoop
Accessories - Dividers - Fixed Short
Accessories - Upper Flow Dividers
Accessories - Vertical Knives - Right Side
Accessories - Speed Drive
Accessories - Cutting Table Flotation
Accessories - Cutting Table Drive Transmission
