Liebherr LTF 1030 Z75007 Electric and Hydraulic Diagrams FR

Data Size: 7.33 MB
File Type: PDF
Language: French
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTF 1030 Z75007 Crane
(LTF1030, LTF/1030, LTF_1030, LTF-1030)

List Contents:

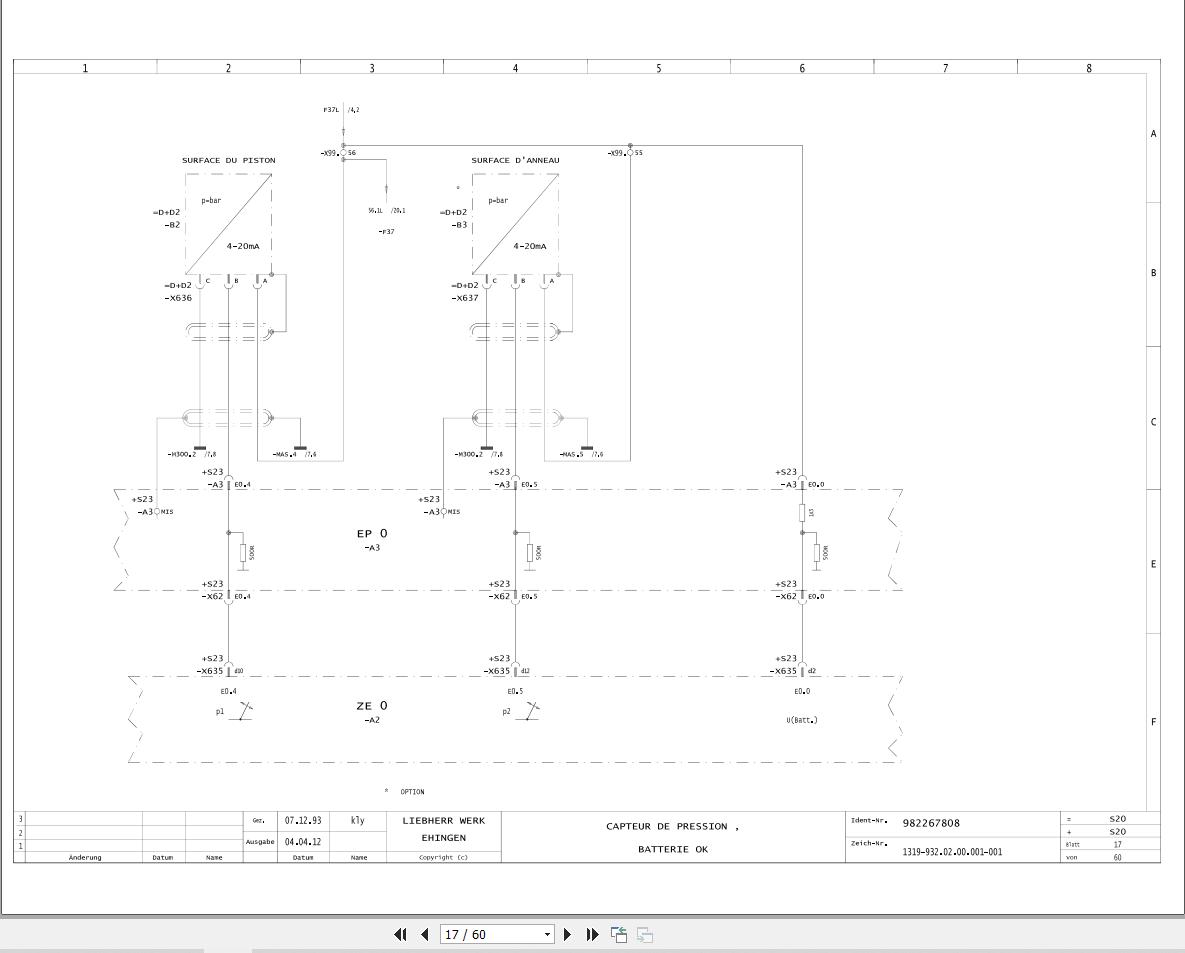

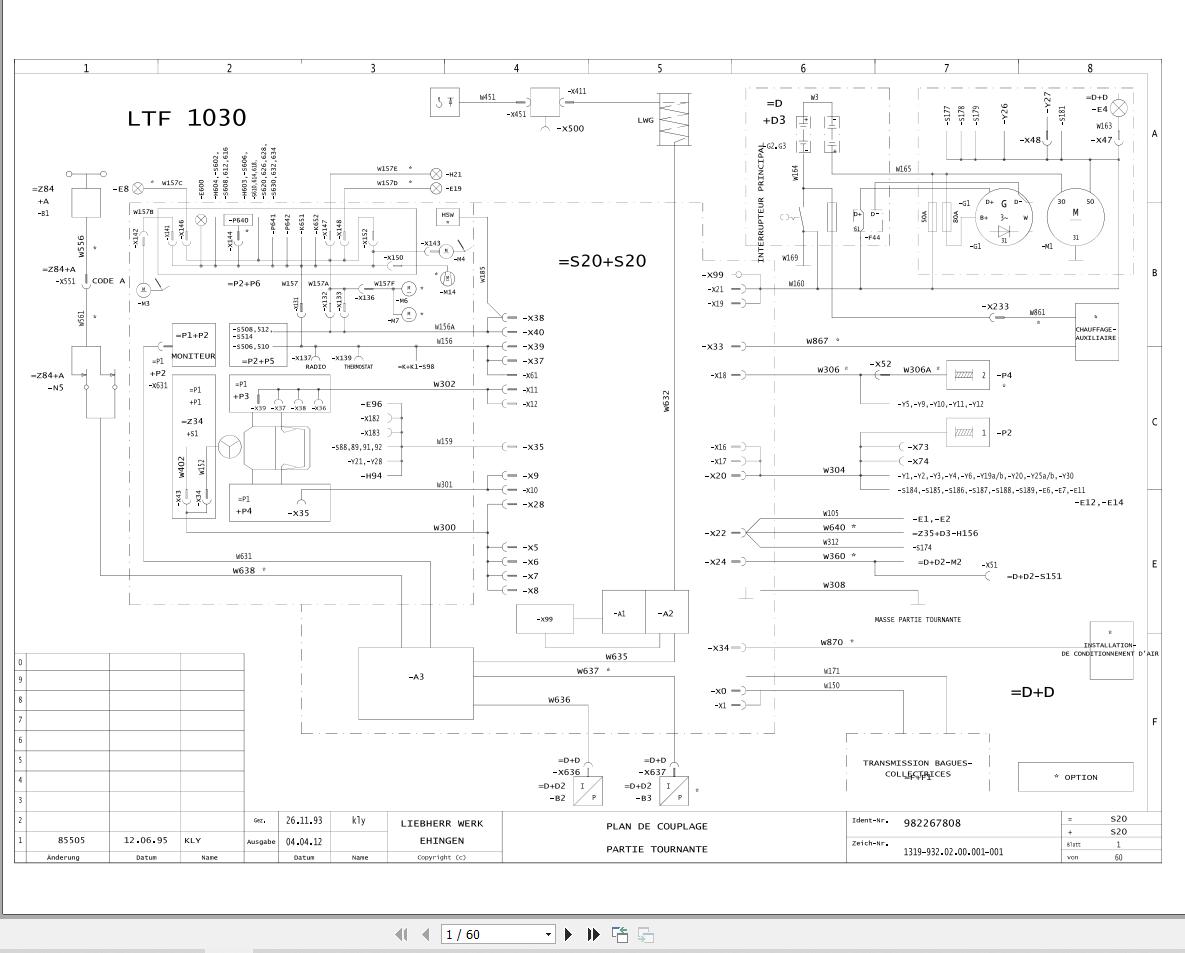

Electric Diagram 982267808_999_FR.pdf (60 Pages)
Hydraulic Diagram 982342808_999_FR.pdf (2 Pages)
