Liebherr LTF 1035-3.1 Z75058 Electric and Hydraulic Diagrams EN

Data Size: 23.73 MB
File Type: PDF
Language: English
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTF 1035-3.1 Z75058 Crane
(LTF1035-3.1, LTF/1035-3.1, LTF_1035-3.1, LTF-1035-3.1, LTF-1035/3.1)

List Contents:

Electric Diagram 985050408_999_EN.pdf (12 Pages)
Hydraulics Outriggers 985000208_999_EN.pdf (8 Pages)

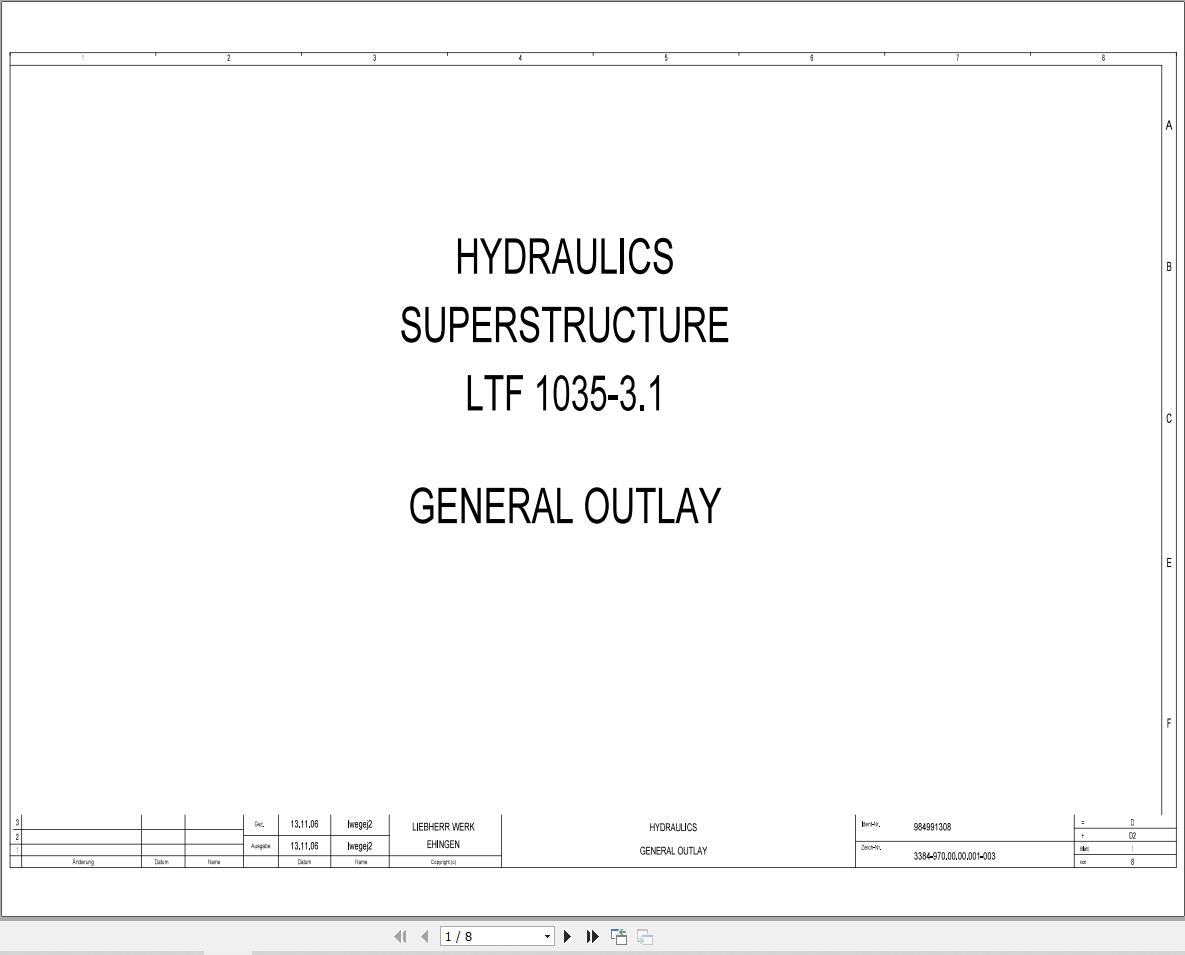

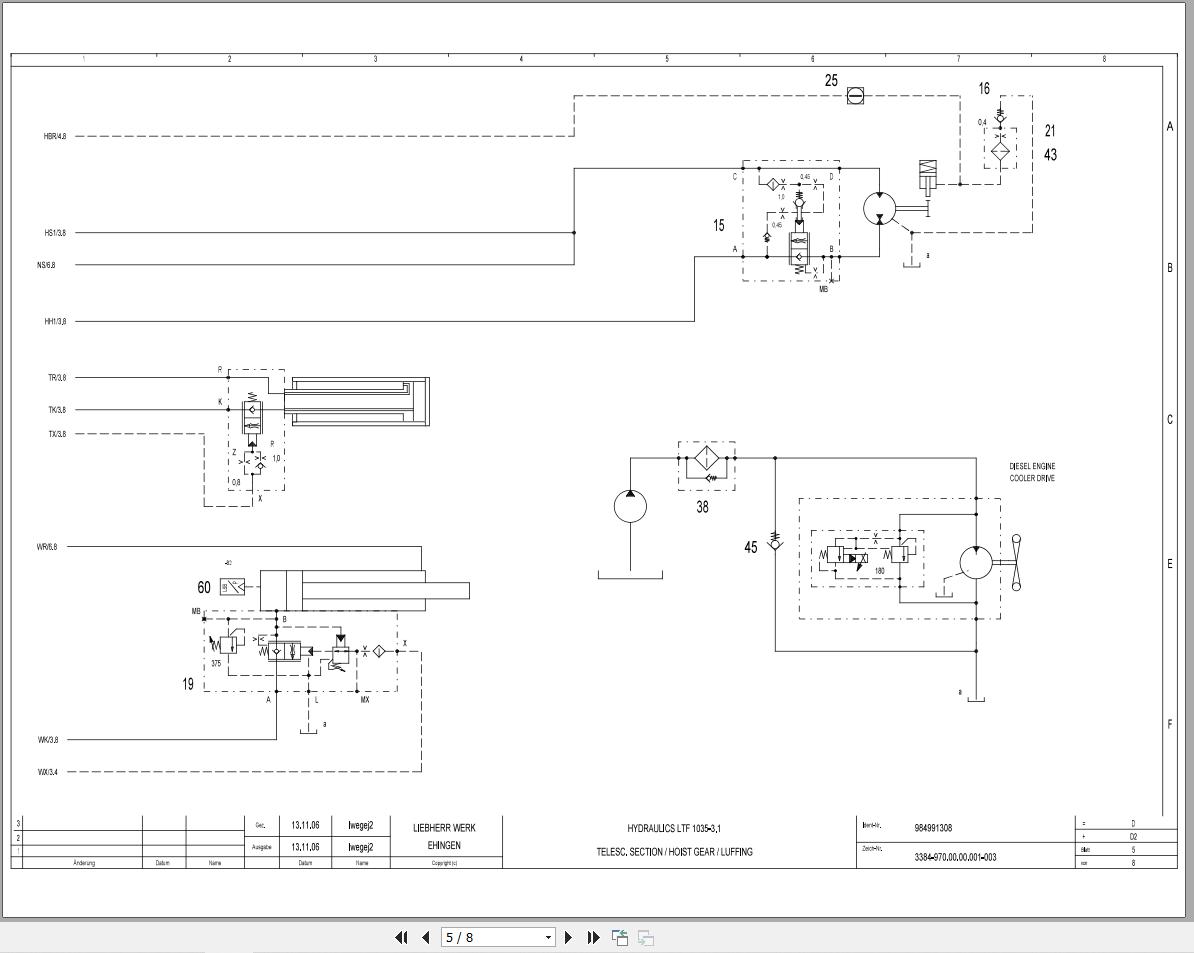

Hydraulics Superstructure General Layout 984991308_999_EN.pdf (8 Pages)
Pneum. Operators Cab Tubing Diagram 984987908_999_EN.pdf (3 Pages)
Wiring Diagram Turntable Ltf 1035-3.1 985044208_999_EN.pdf (100 Pages)
