Liebherr LTM 1030-1 Z17741 Electric and Hydraulic Diagrams RU

Data Size: 20.33 MB
File Type: PDF
Language: Russian
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1030-1 Z17741 Crane
(LTM1030-1, LTM/1030-1, LTM_1030-1, LTM-1030-1, LTM-1030/1)

List Contents:

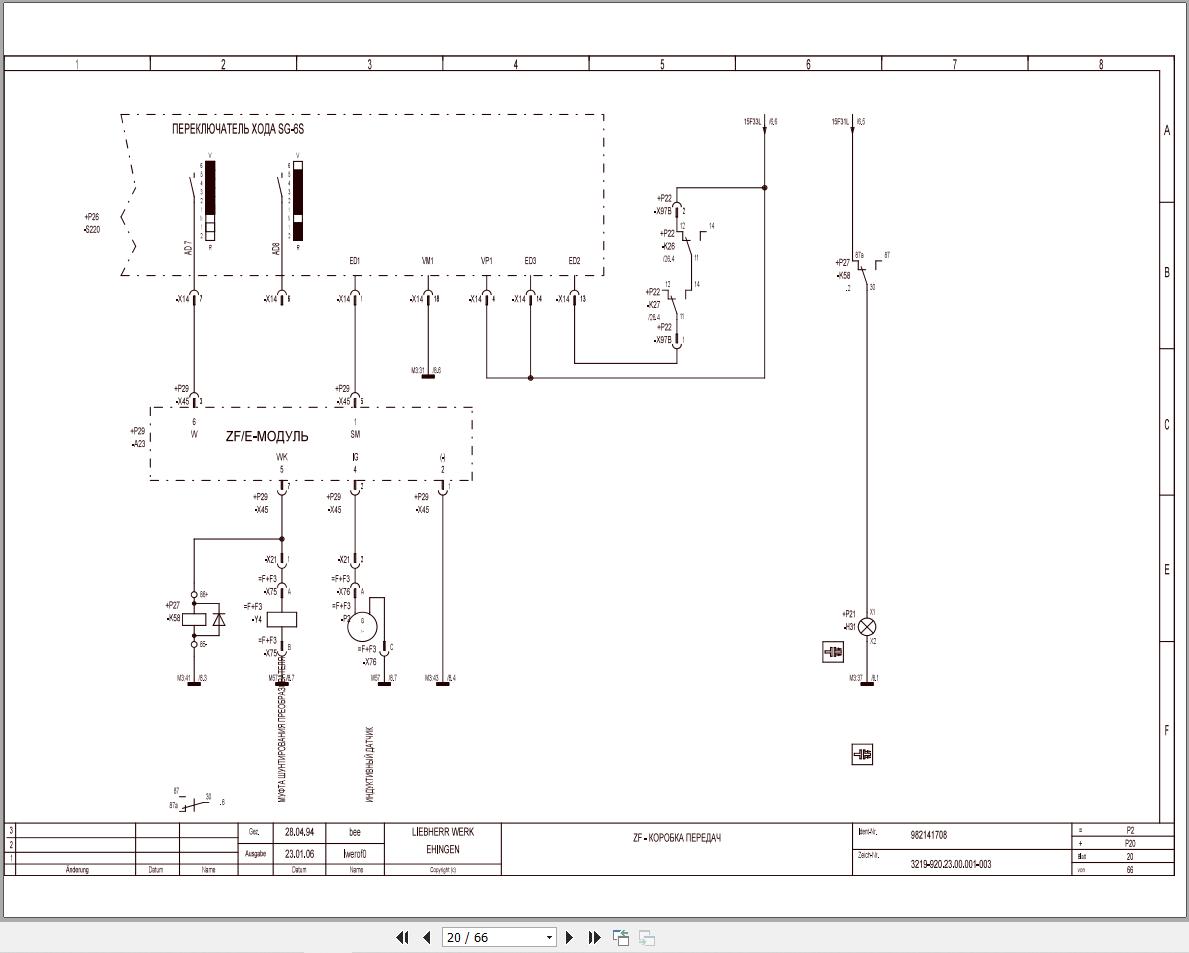

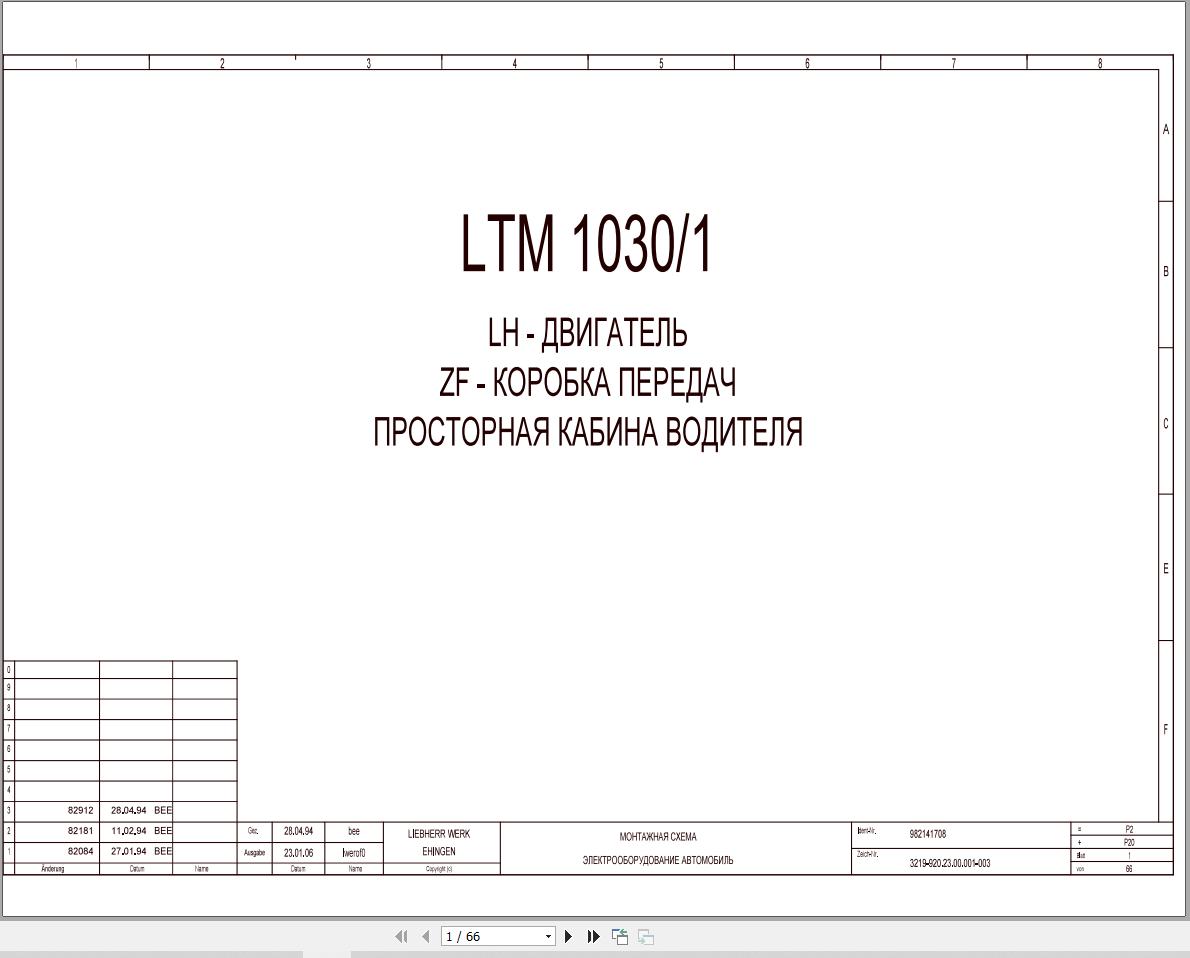

Electric Diagram 982141708_999_RU.pdf (66 Pages)
Electric Diagram 982376408_999_RU.pdf (64 Pages)
Hydraulic Diagram 982347708_999_RU.pdf (2 Pages)
Hydraulic Diagram 982379108_999_RU.pdf (2 Pages)
Hydraulics Outriggers 982138008_999_RU.pdf (7 Pages)
