Liebherr LTM 1030-2 Z17996 Electric and Hydraulic Diagrams ES

Data Size: 36.45 MB
File Type: PDF
Language: Spanish
Manufacturer: Liebherr
Applicable Machine: Crane
Document: Electric and Hydraulic Diagrams
Machine Model: Liebherr LTM 1030-2 Z17996 Crane
(LTM1030-2, LTM/1030-2, LTM_1030-2, LTM-1030-2, LTM-1030/2)

List Contents:

Circuit diagram compressed air system 982710408_999_ES.pdf (13 Pages)
Electric Diagram 982547808_999_ES.pdf (84 Pages)

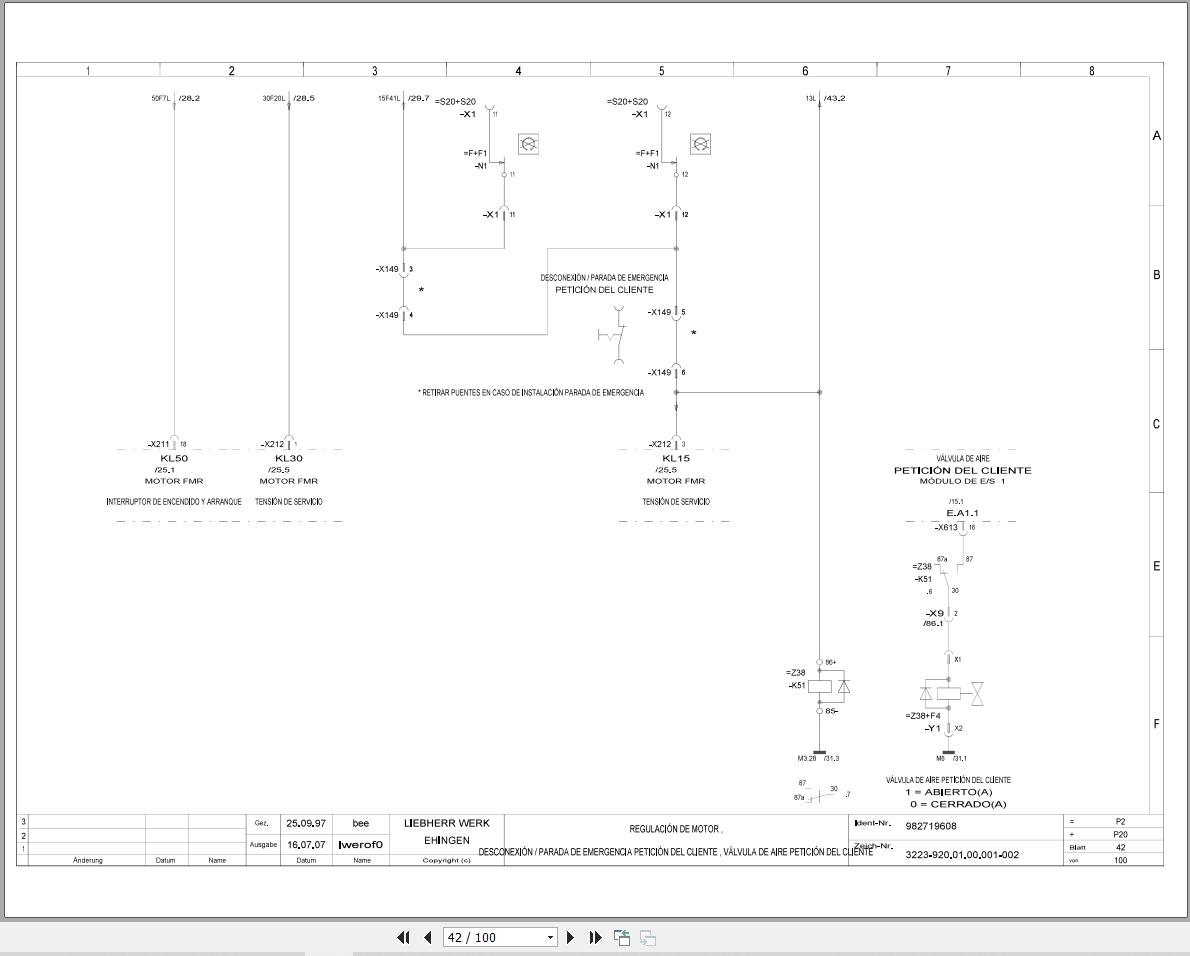

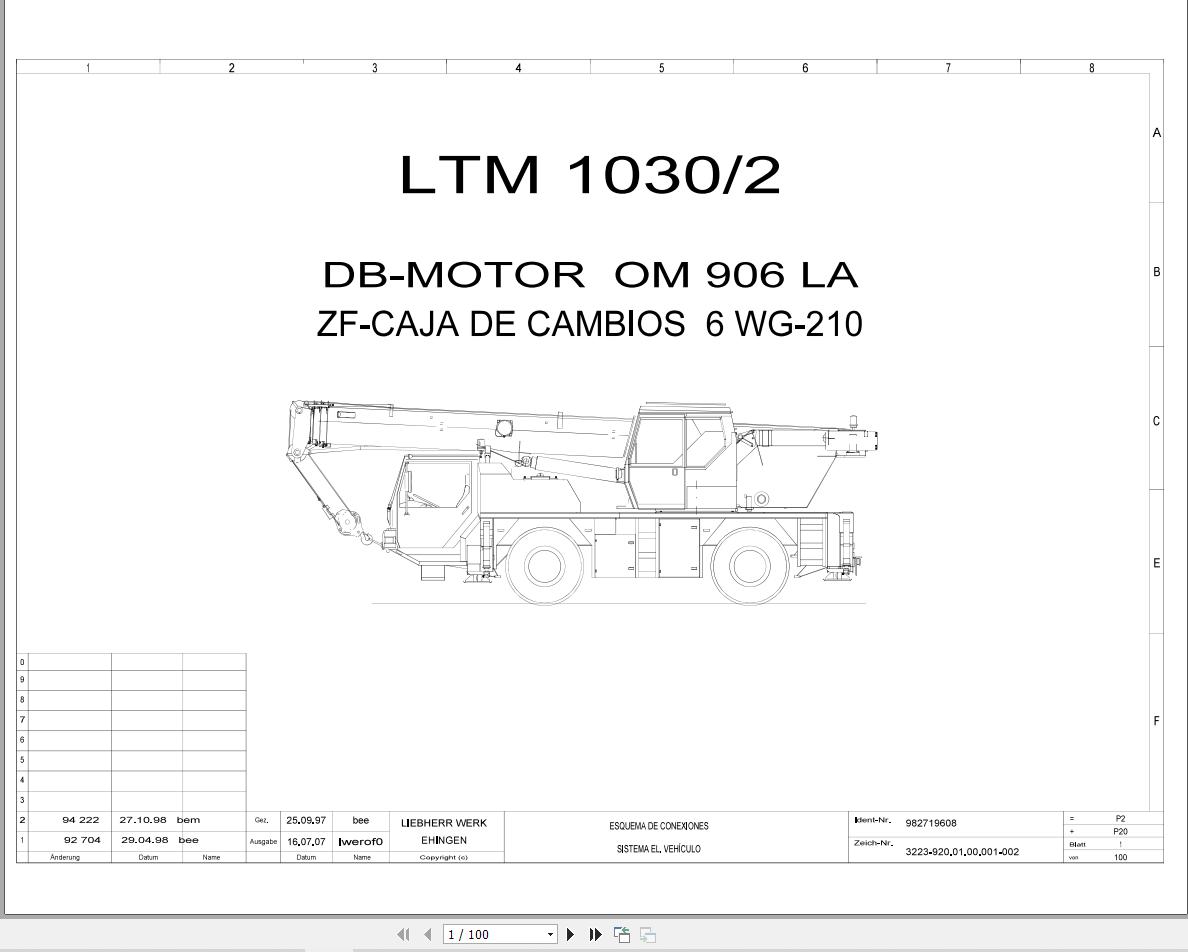

Electric Diagram 982719608_999_ES.pdf (100 Pages)
Hydraulic Diagram 982592008_999_ES.pdf (7 Pages)
Hydraulics Outriggers 982605008_999_ES.pdf (7 Pages)
Hydraulics Suspension 982606508_999_ES.pdf (7 Pages)
Steering Hydraulics Diagram 982601408_999_ES.pdf (7 Pages)
Wiring Diagram Valve Block Vorm 982683608_999_ES.pdf (2 Pages)
